Magnetic Rotary Encoder Assembly Instructions

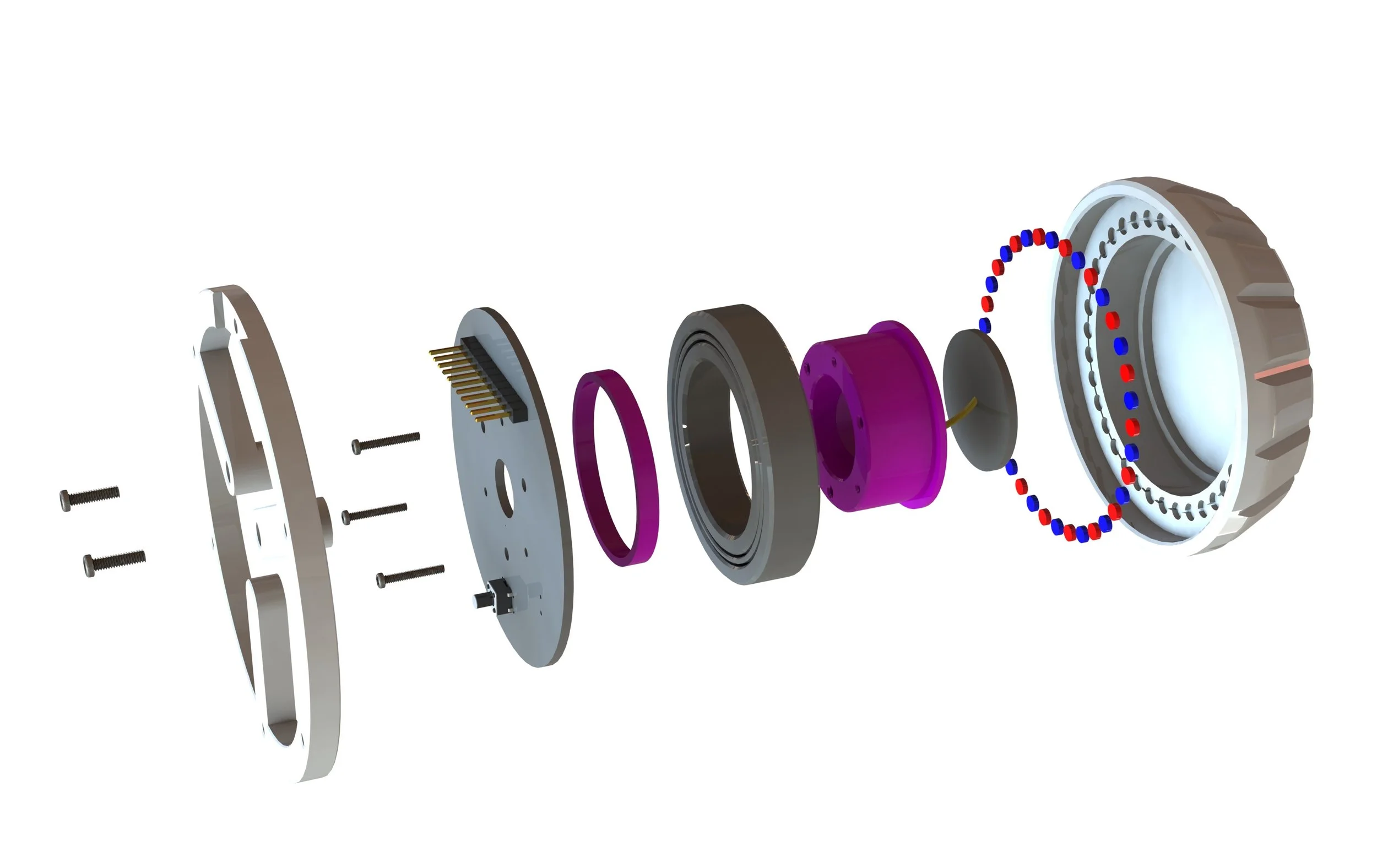

Make sure you have all the hardware and 3D-printed parts for the default size magnetic rotary encoder.

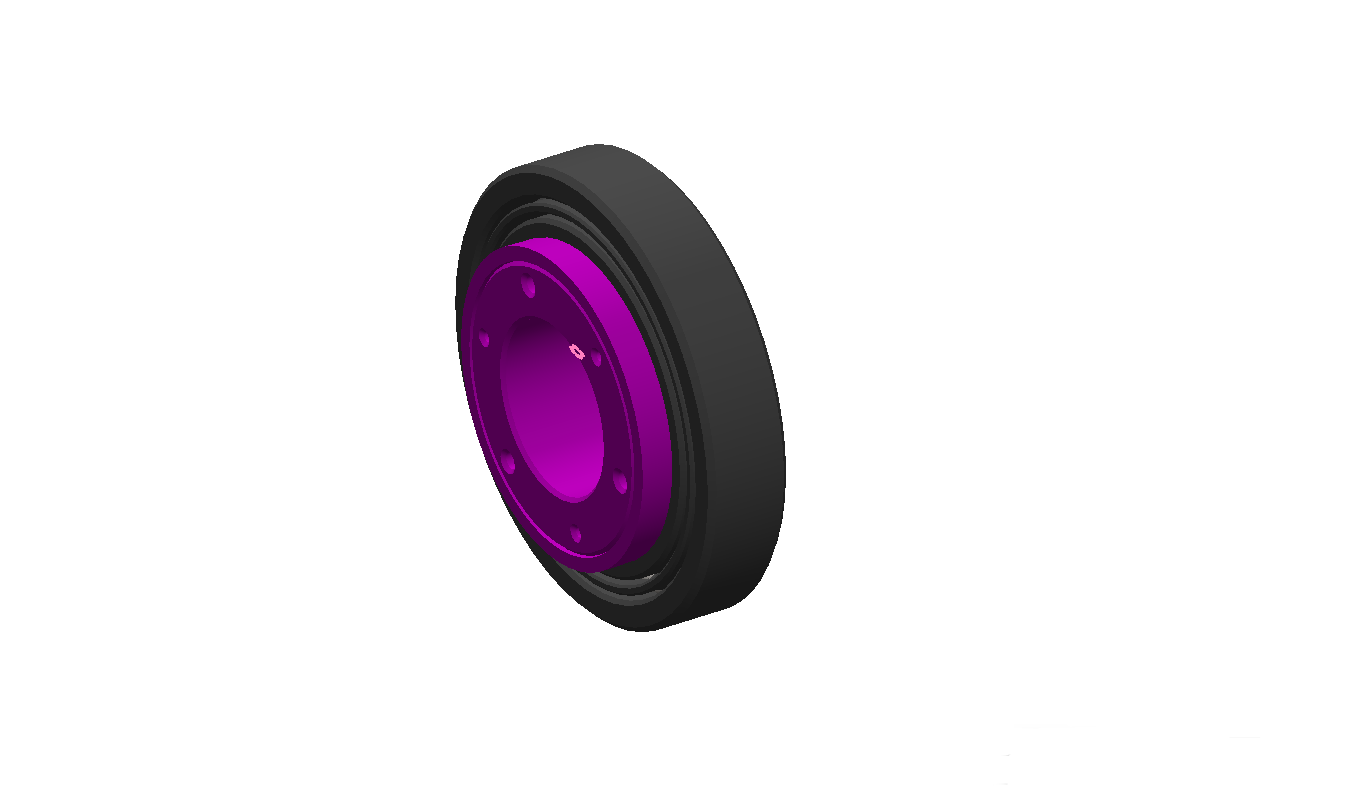

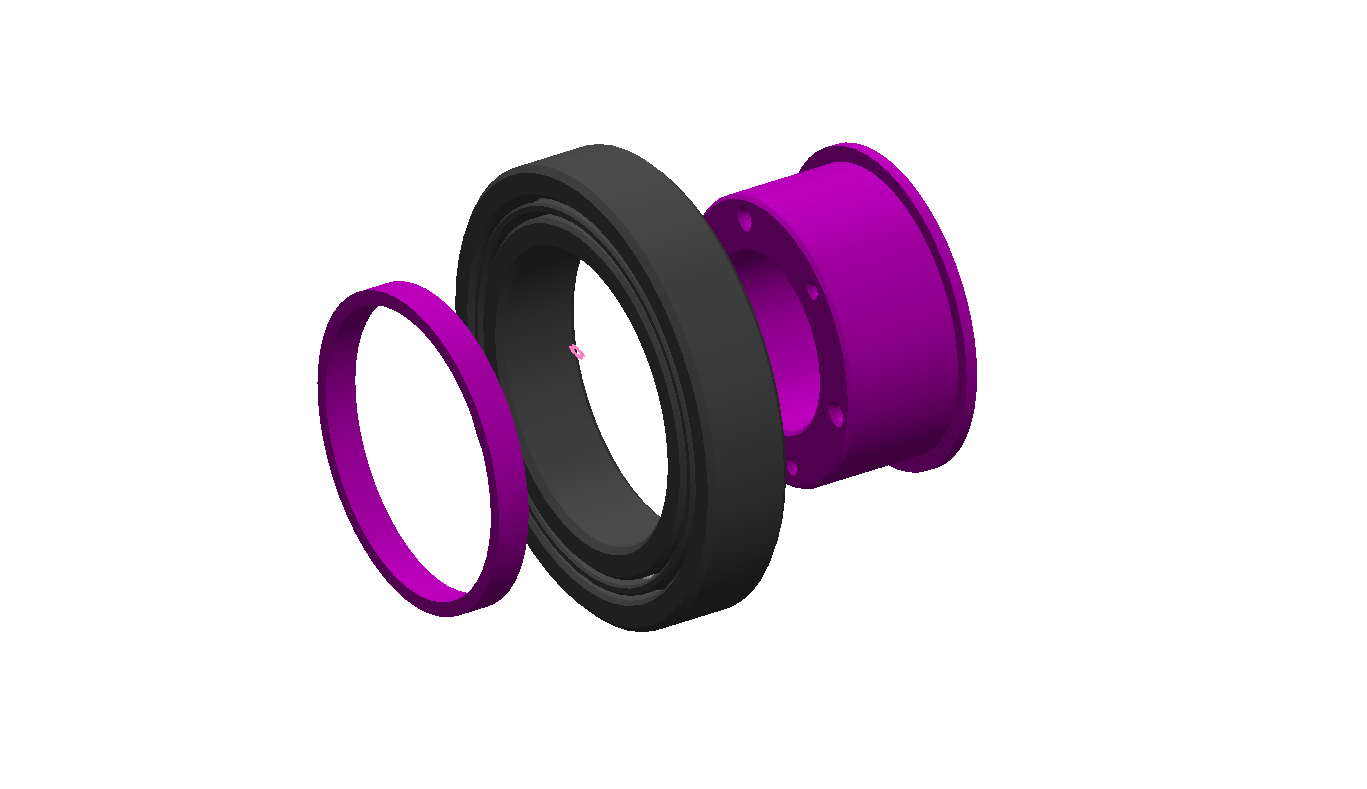

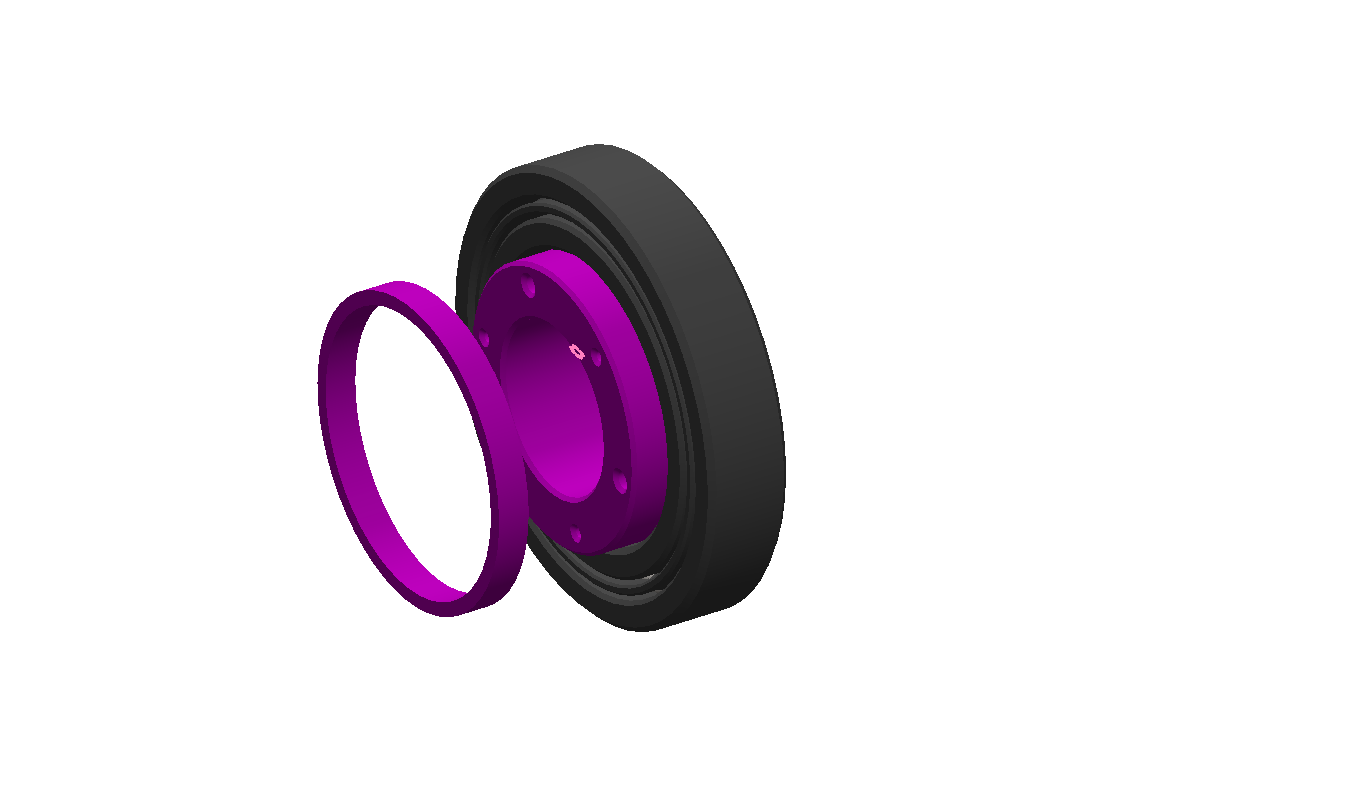

sandwich the 6906 bearing between BEARING HOLDER part and the SPACER

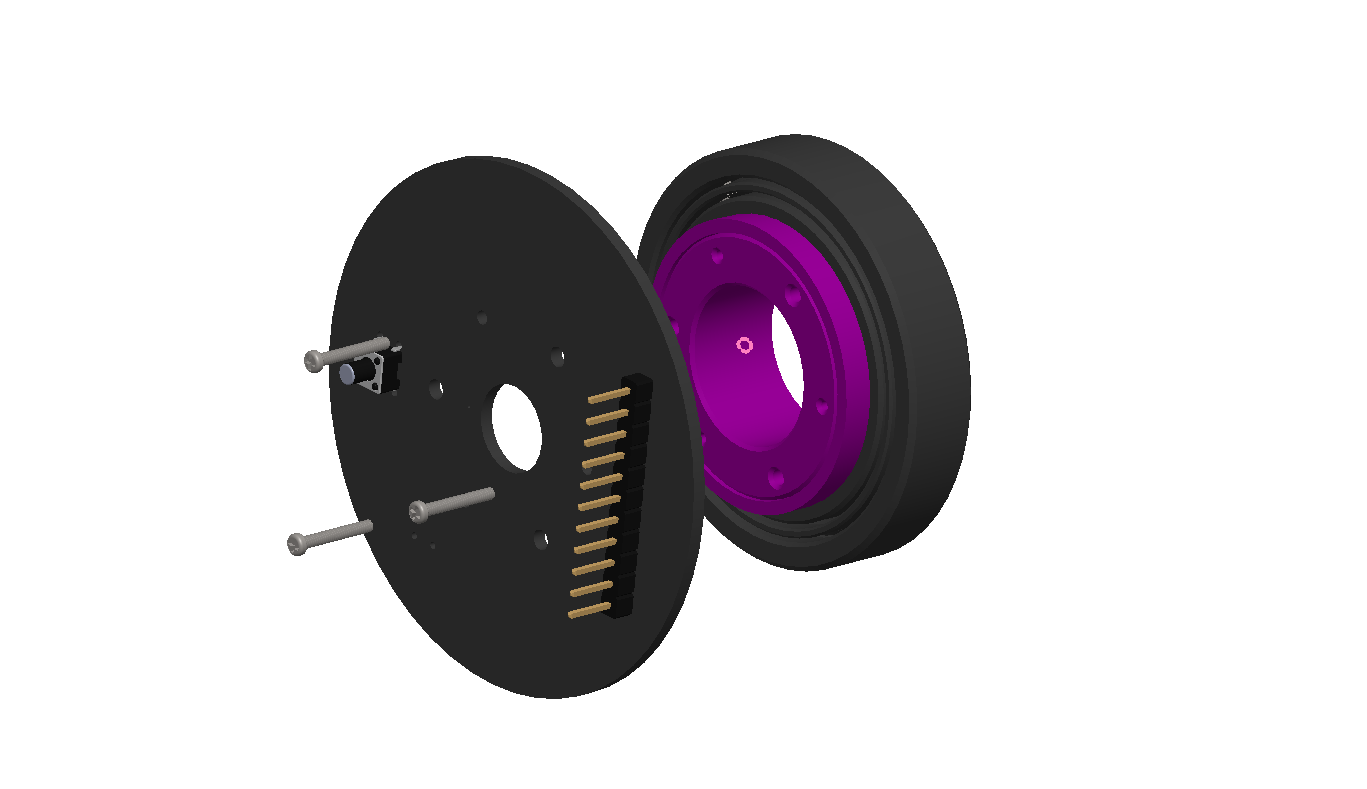

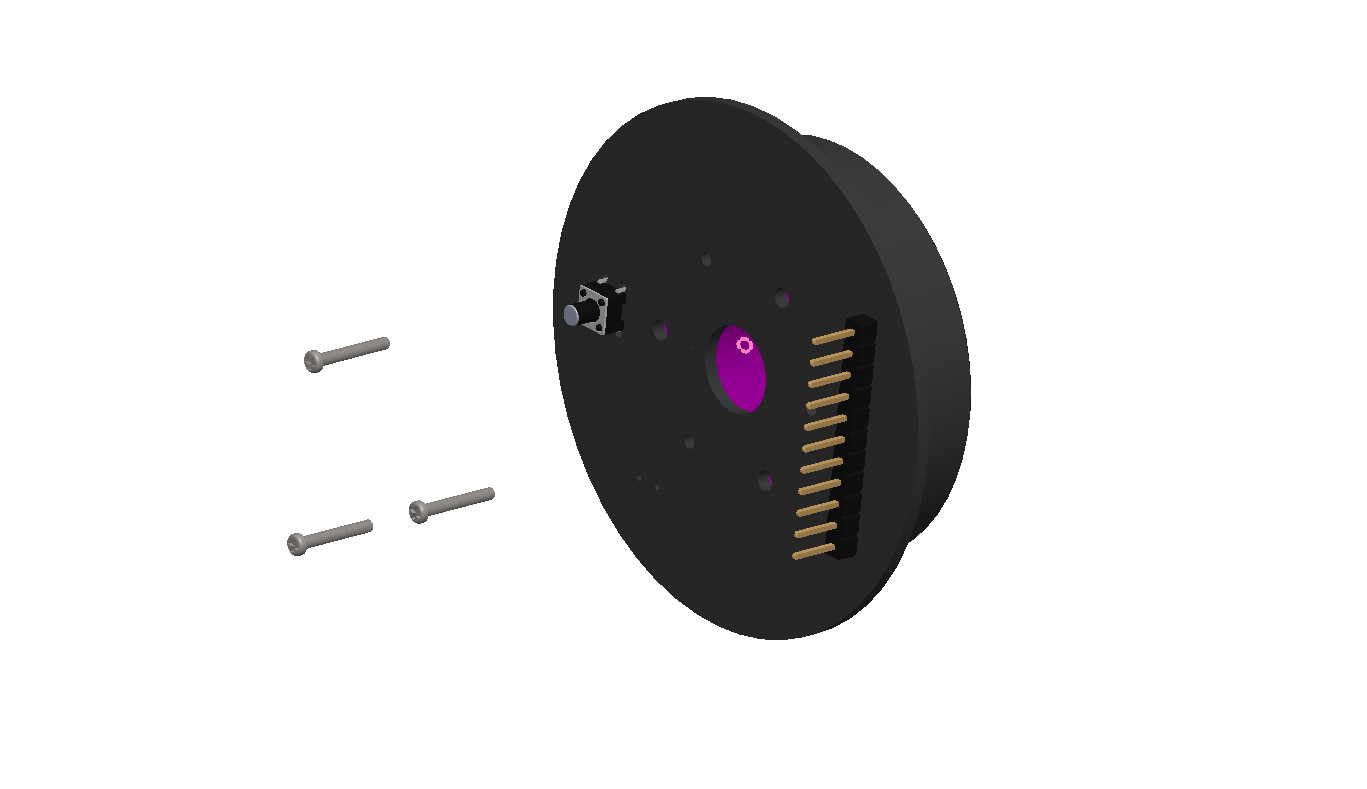

secure the control board to the BEARING HOLDER using 3x M1.4x10mm self-tapping screws.

If you plan to use capacitive touch instead of the onboard button, you will need to solder a short wire to the CAP TOUCHPAD and the CONTROL BOARD, you will see the corresponding pads on both boards.

if you are only using the button, skip this step

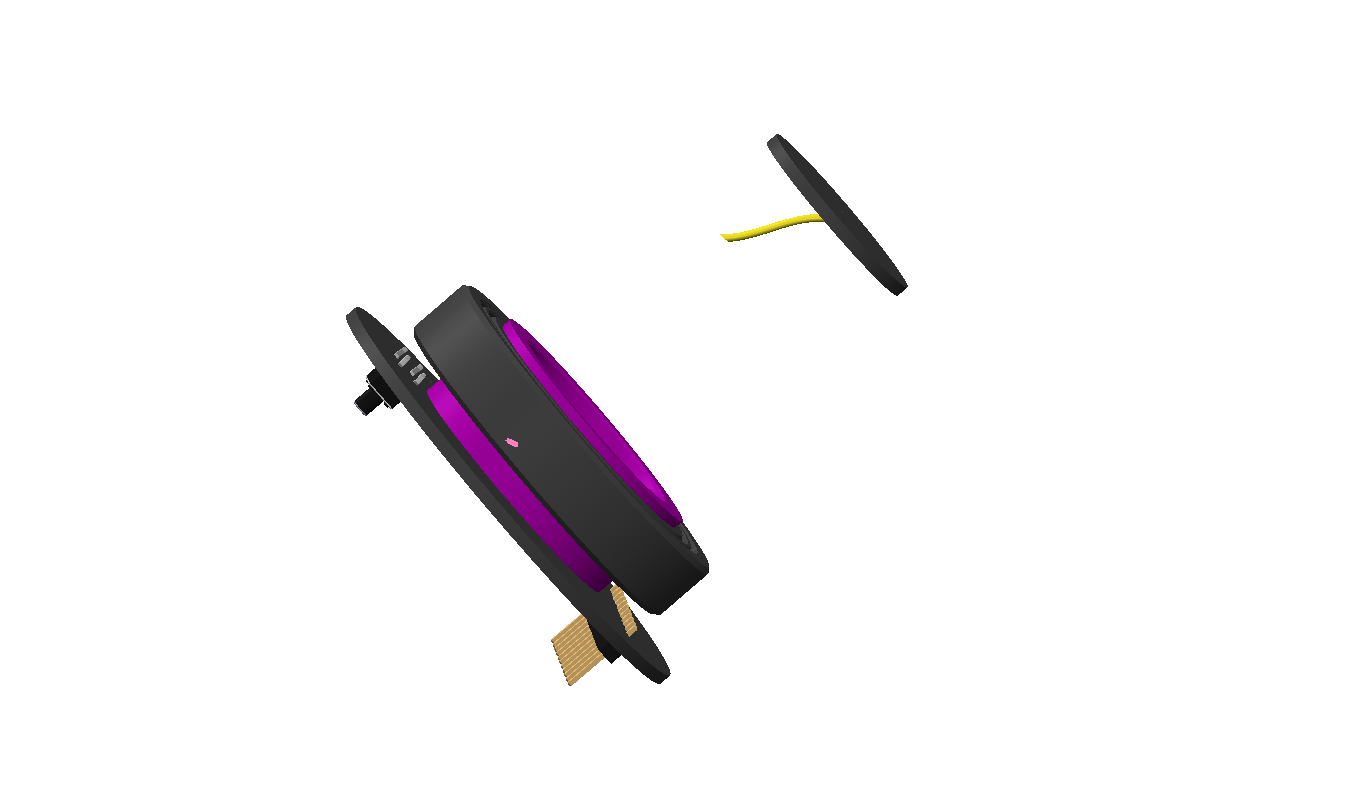

the CAP TOUCHPAD should be glued to the BEARING HOLDER

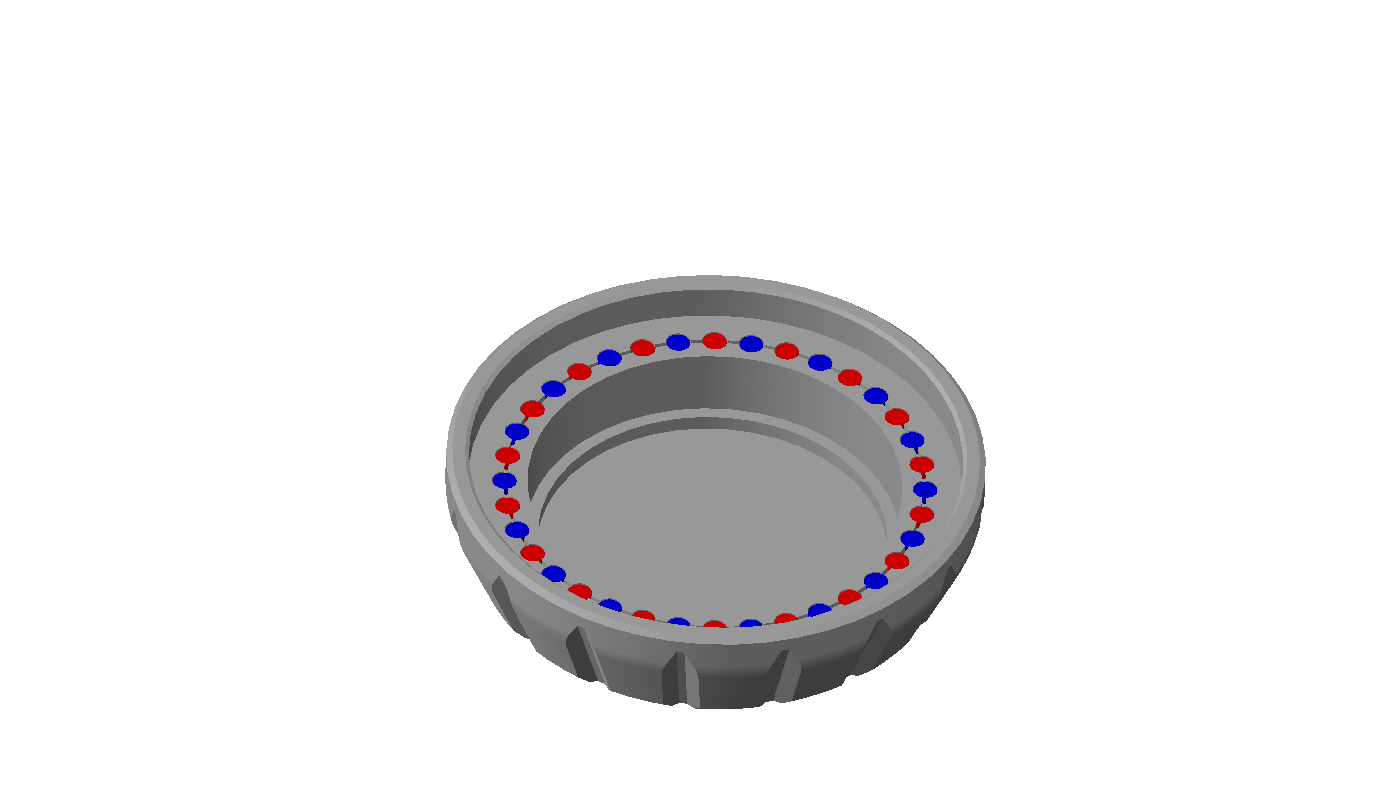

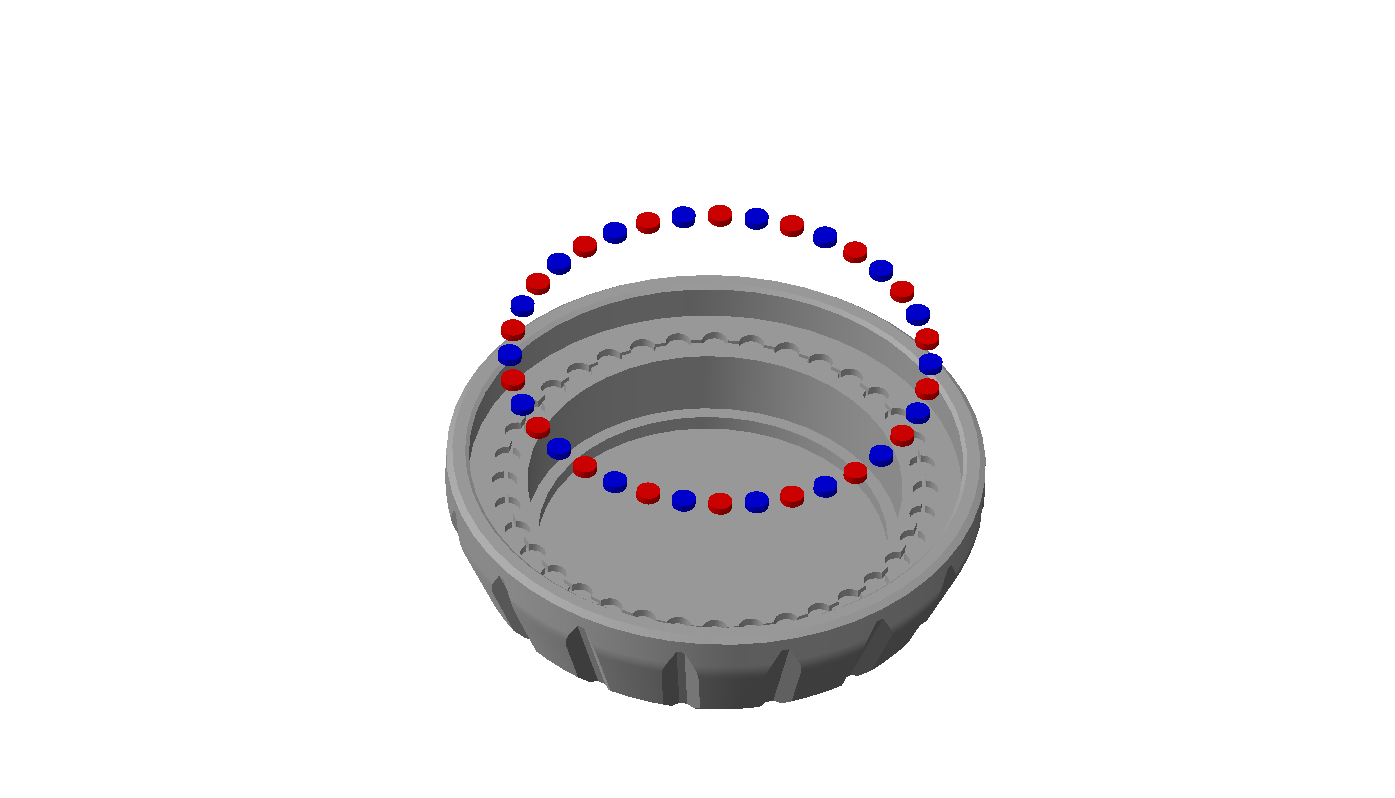

install encoding magnets 36x 63x1mm in an alternating pole configuration, the magnets should be press fit, but glue may also be used.

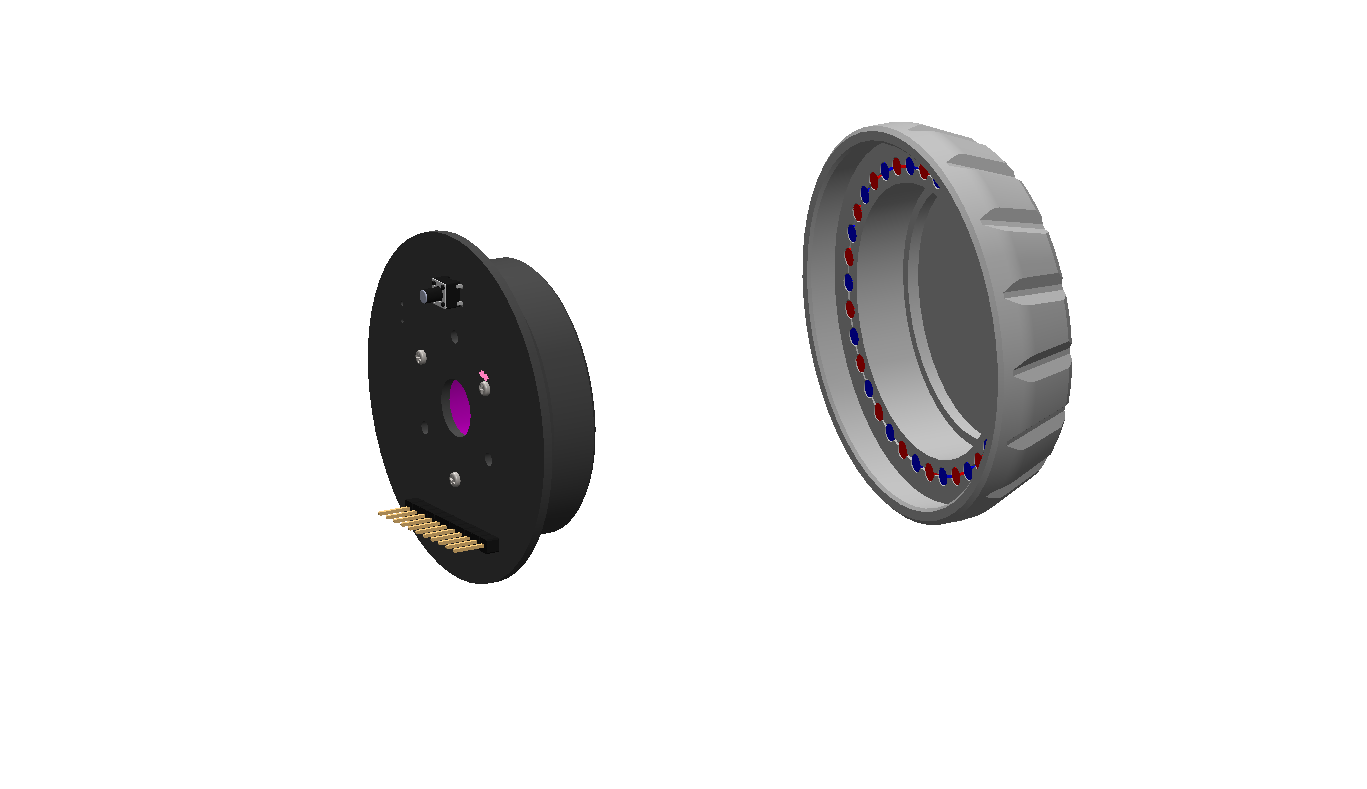

attach knob

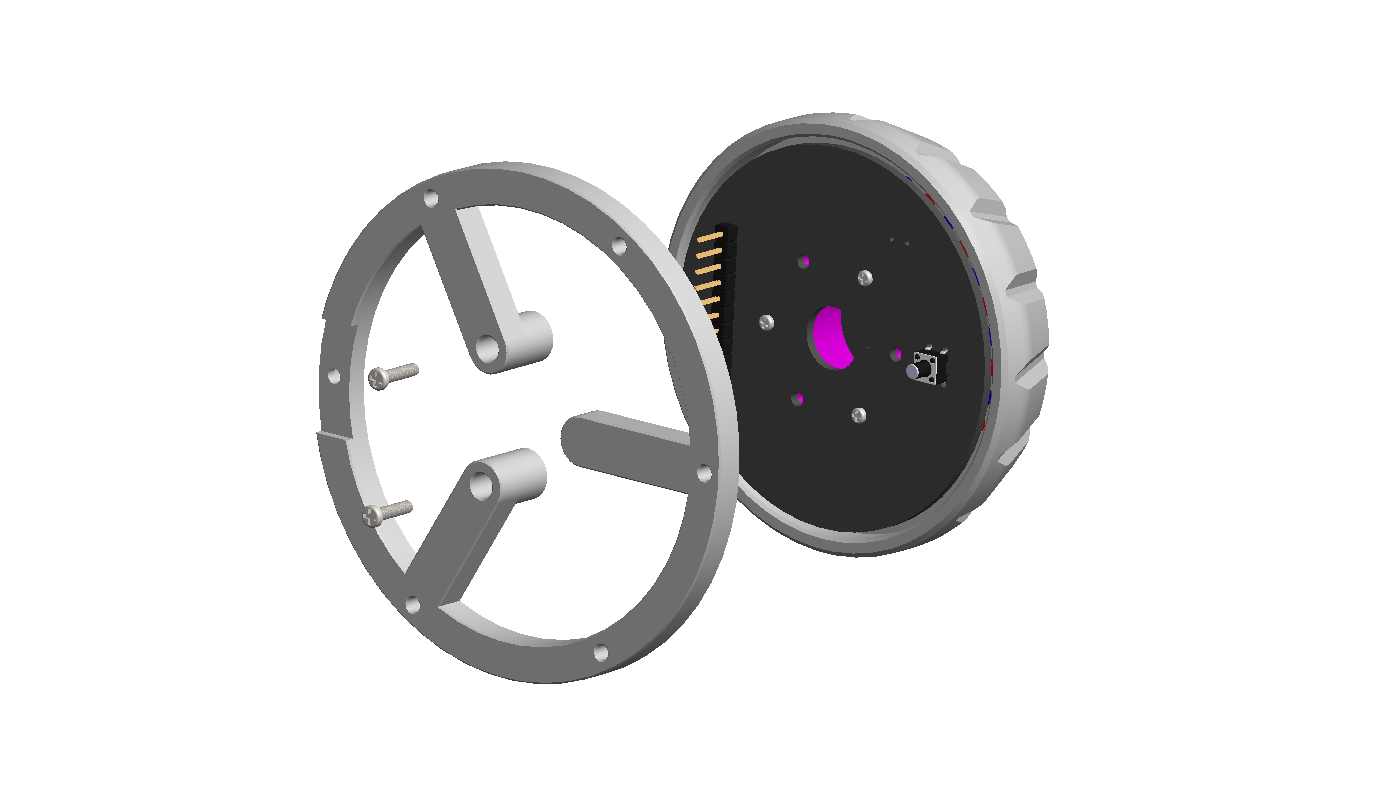

installing the mounting base is optional, and it may not be needed for your specific application.

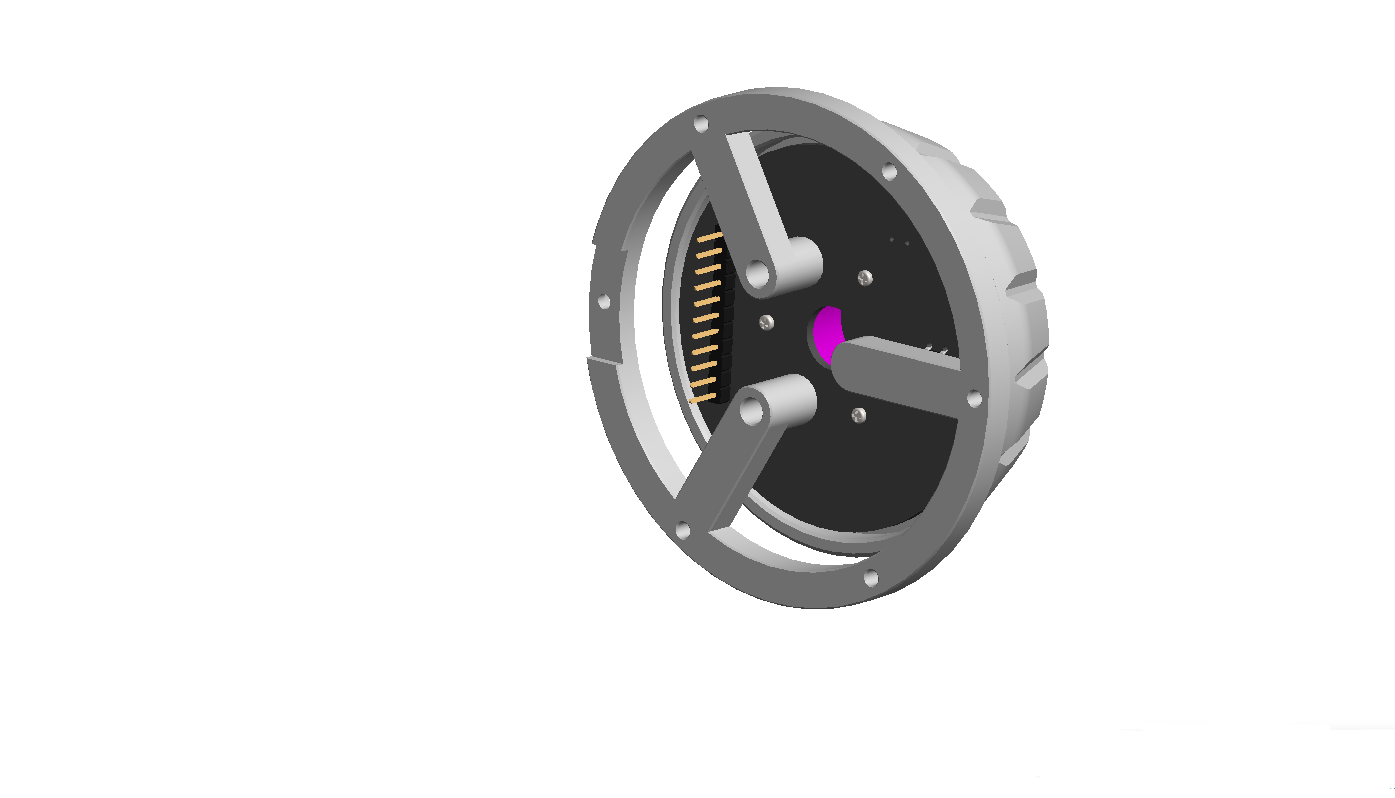

secure the base to the encoder using 2x M2x8mm self-tapping screws.

Downloads:

Magnetic Rotary Encoder 3D files

Hardware

• Magnetic Rotary Encoder Kit

• 1x 6906 Ball Bearing

• 3x M1.4x10mm self-tapping screws

• 2x M2x8mm self-tapping screws (optional)

• (36x) 3x1mm Neodymium magnets.

3D Printed Parts

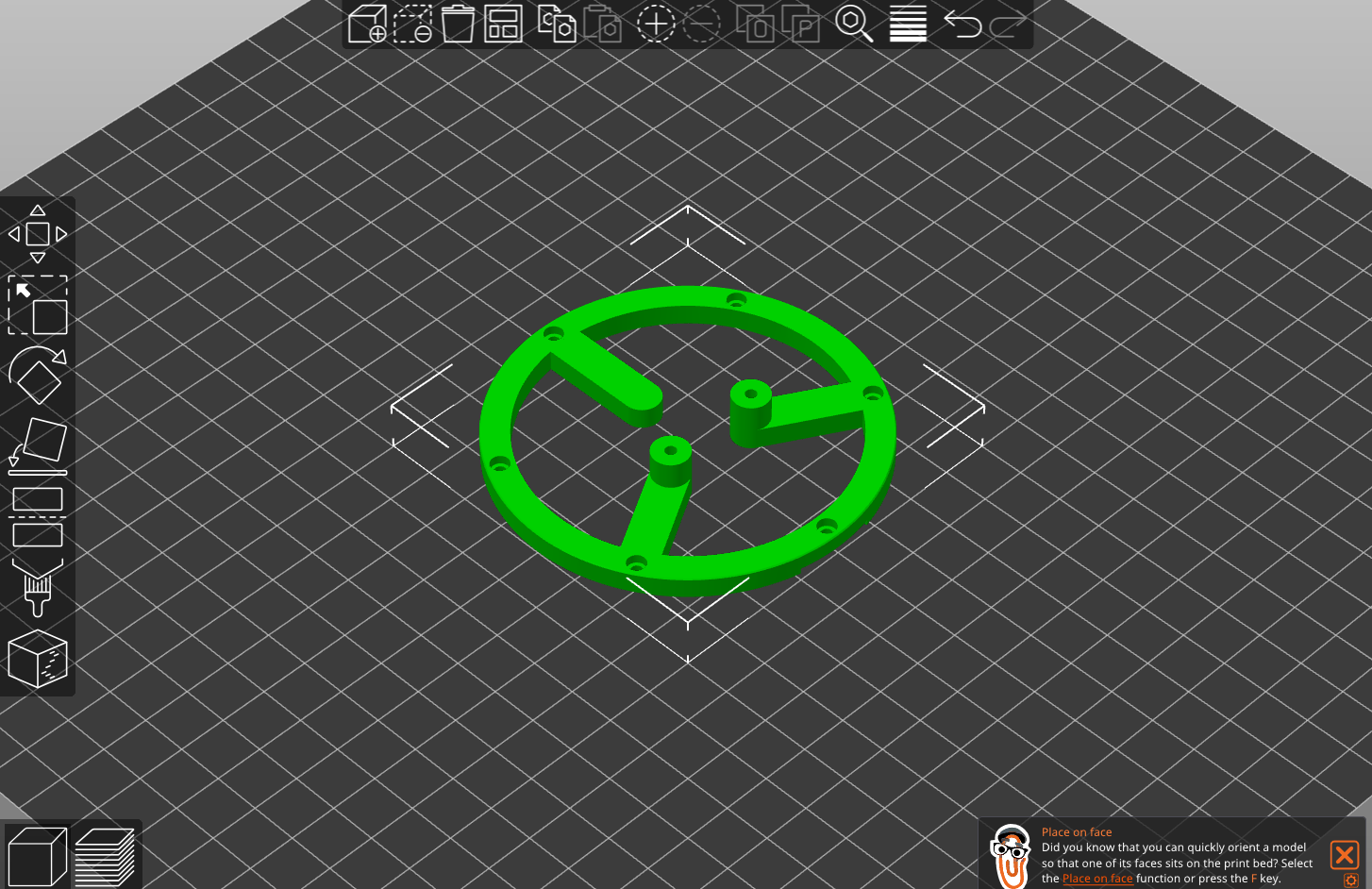

BEARING HOLDER

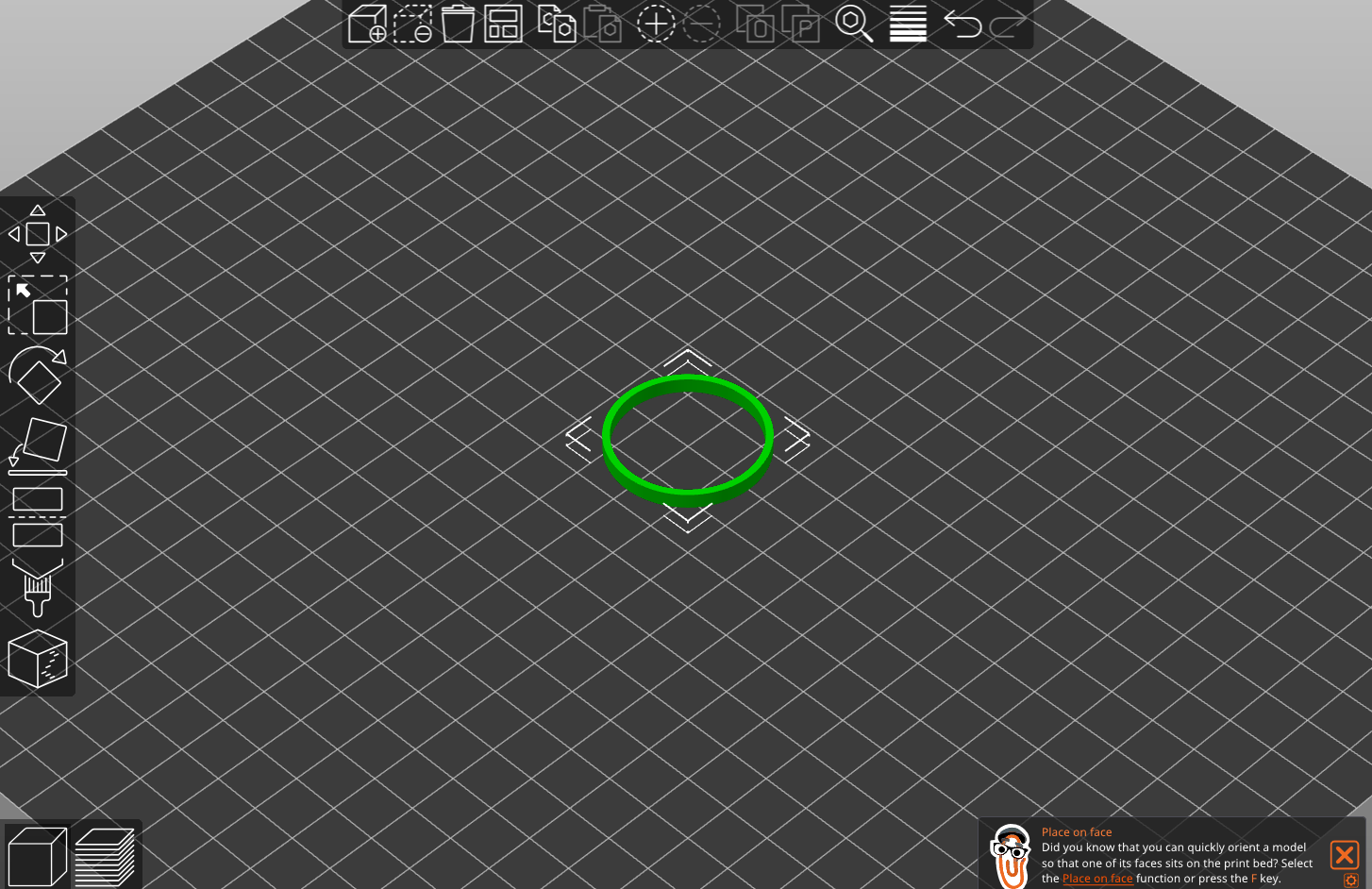

SPACER

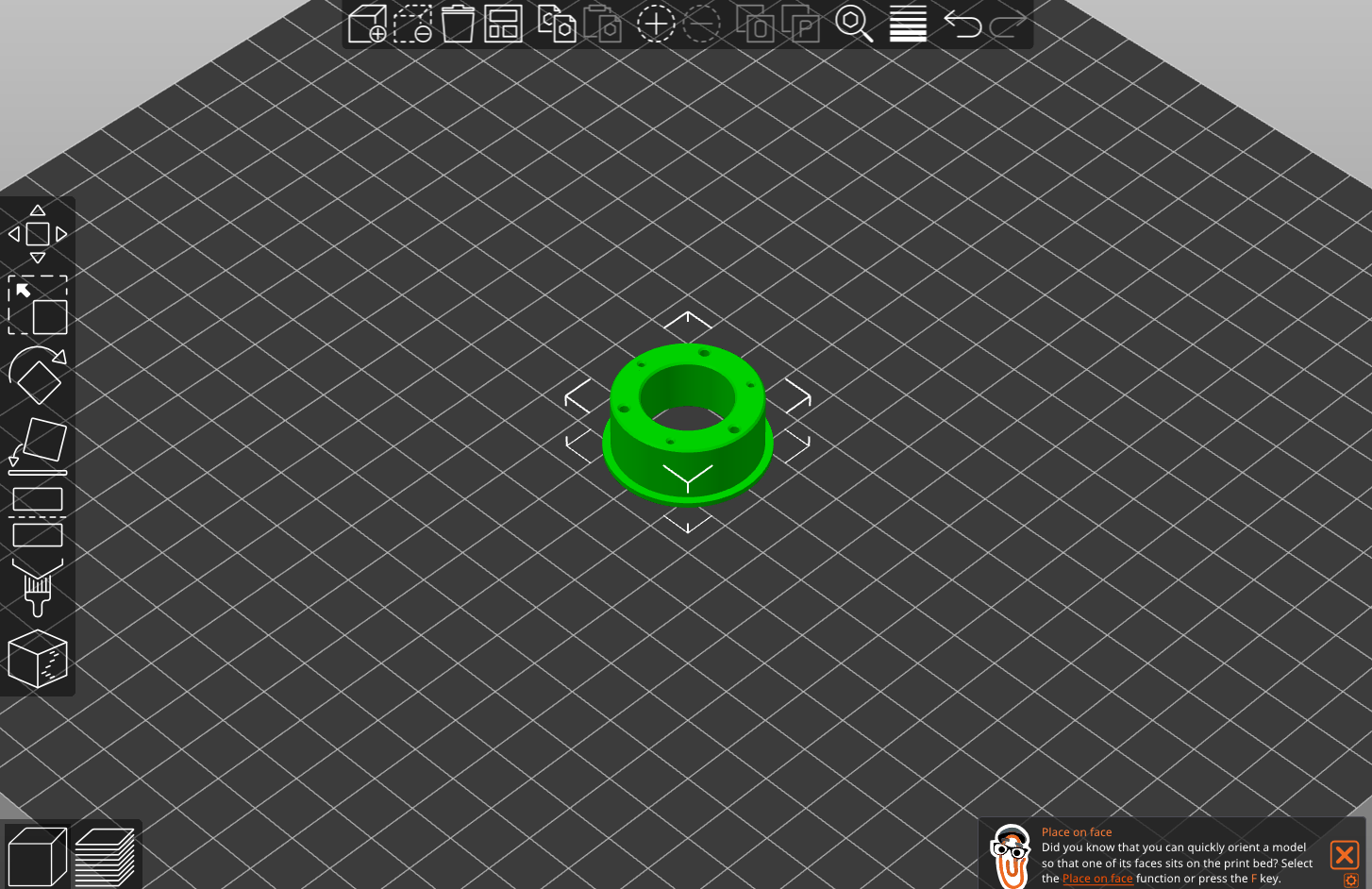

KNOB

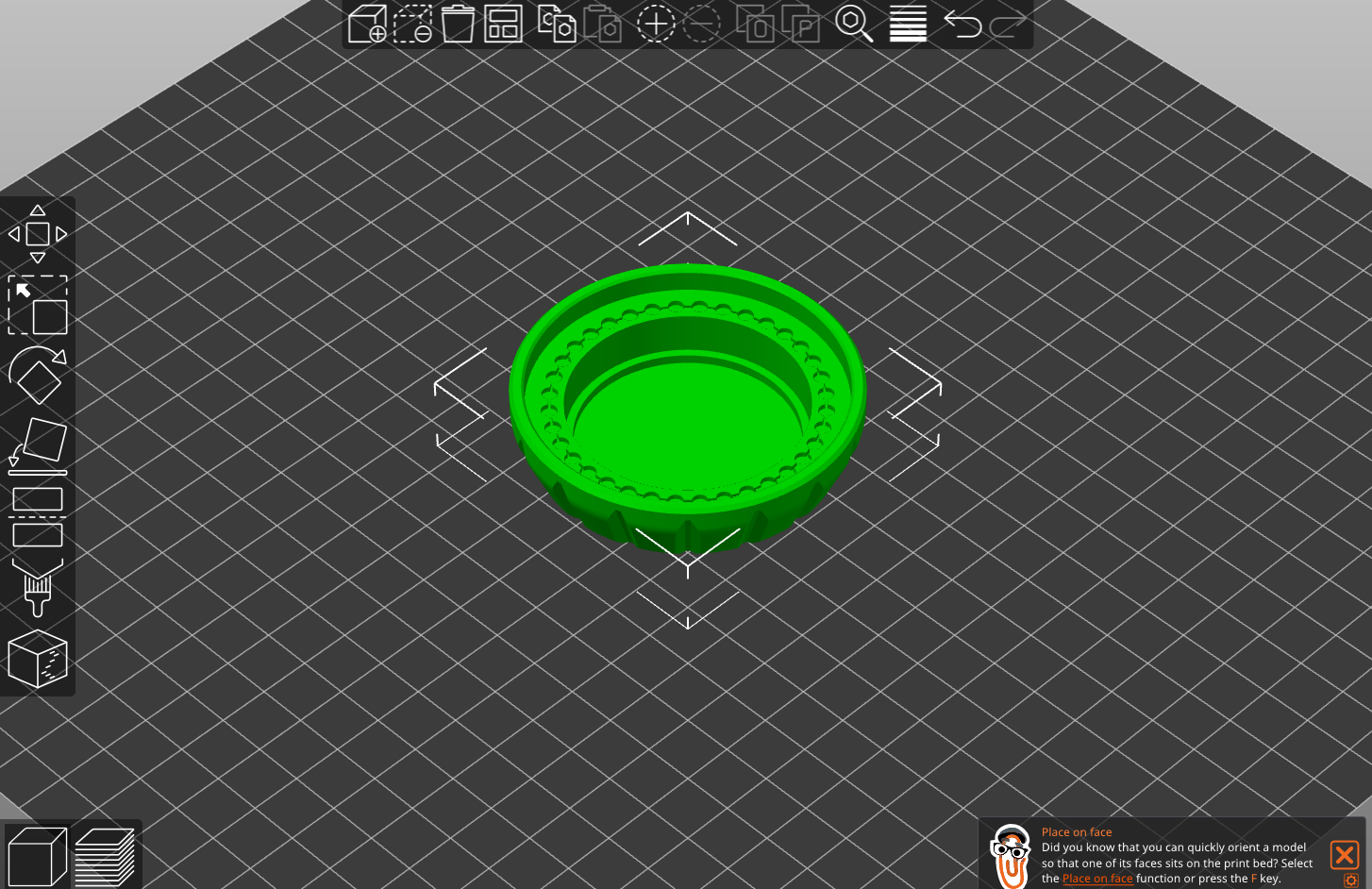

MOUNTING BASE (OPTIONAL)

After acquiring the required hardware and 3D printing the required parts, scroll to the slide at the top of the page to begin assembling your encoder.
