Magnetic Rotary Encoder MINI Assembly Instructions

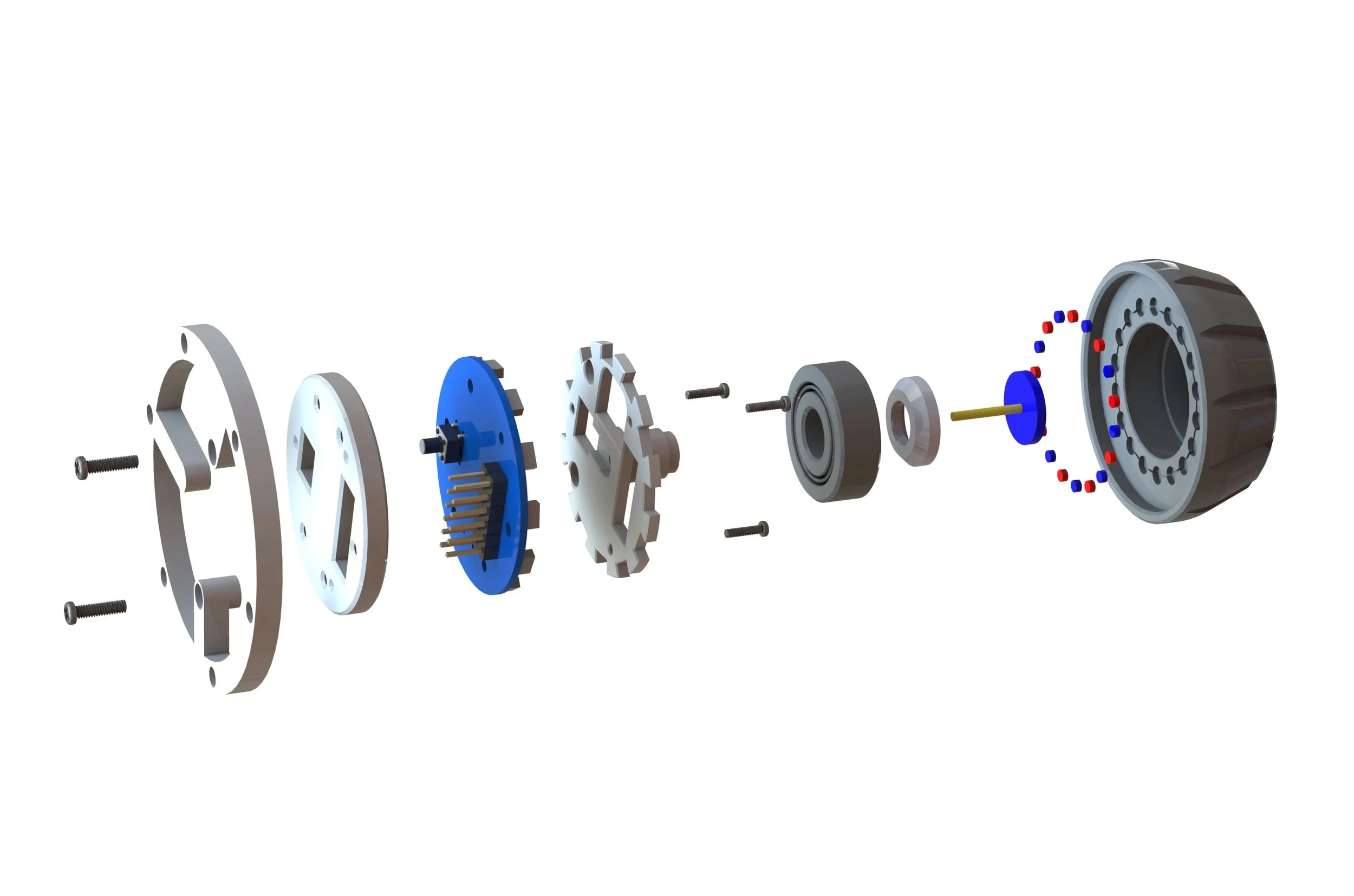

Make sure you have all the hardware and 3D-printed parts for the MINI size magnetic rotary encoder.

If you plan to use capacitive touch, you will need to solder a short wire between the CONTROL BOARD and the CAPACITIVE TOUCHPAD.

The corresponding pads are at the center of the boards

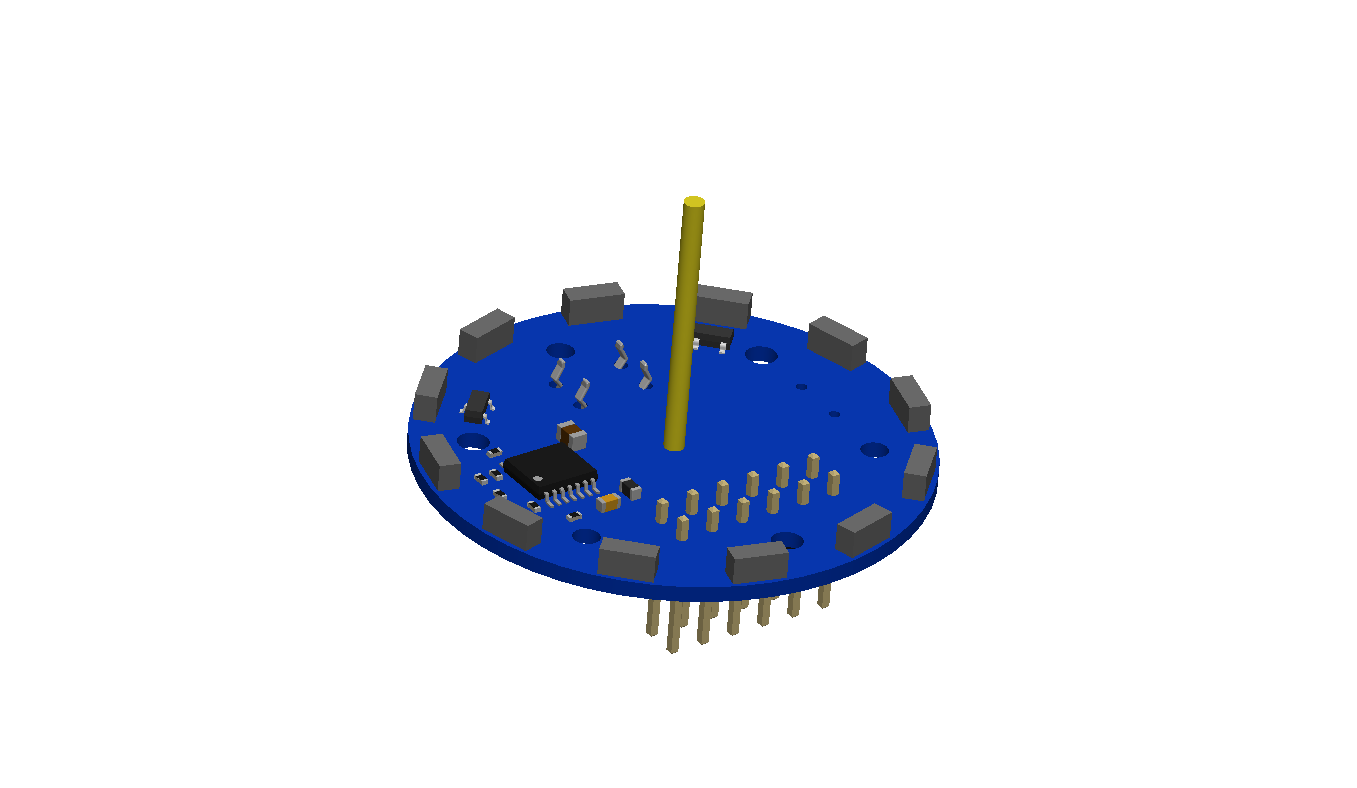

solder one side of the capacitive touch wire to the CONTROL BOARD

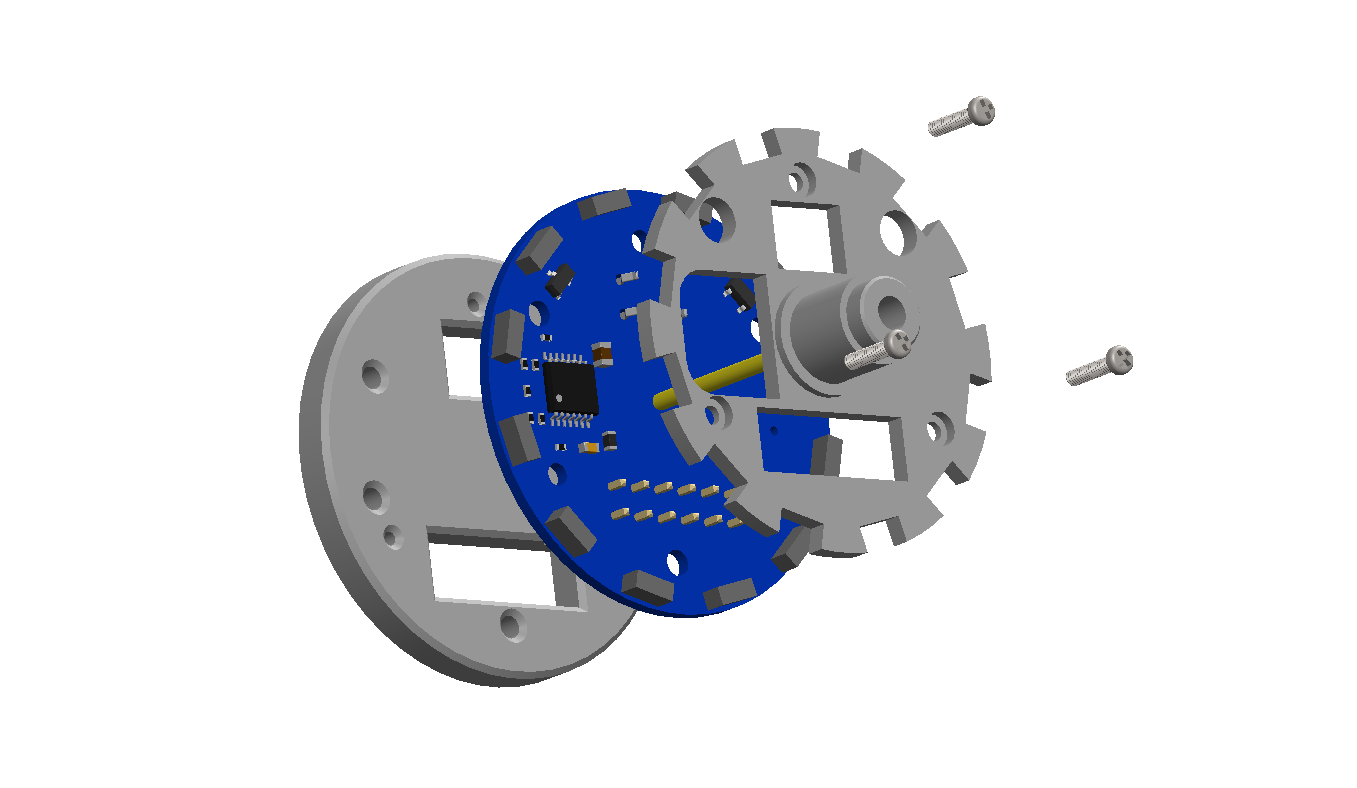

sandwich the CONTROL BOARD between the BOARD TOP part and the BOARD BOTTOM part

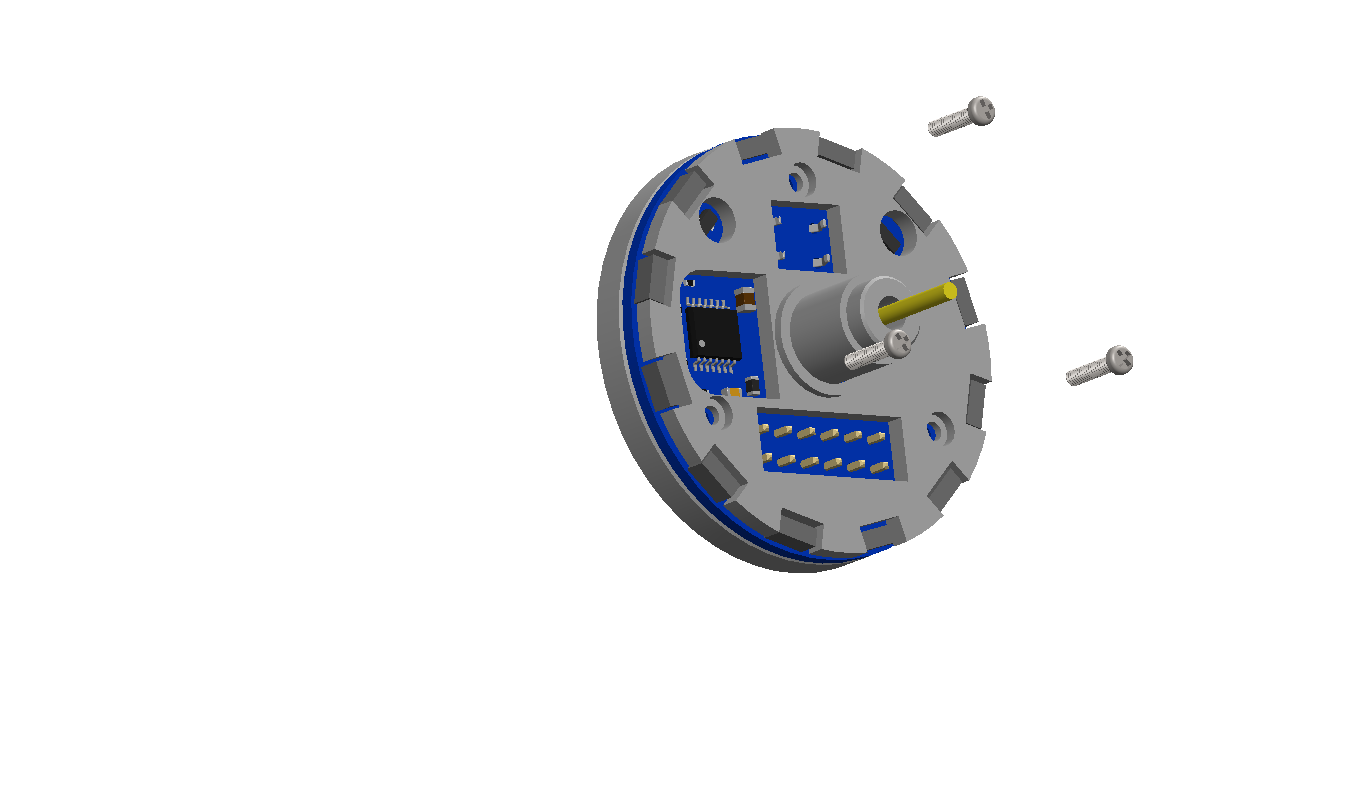

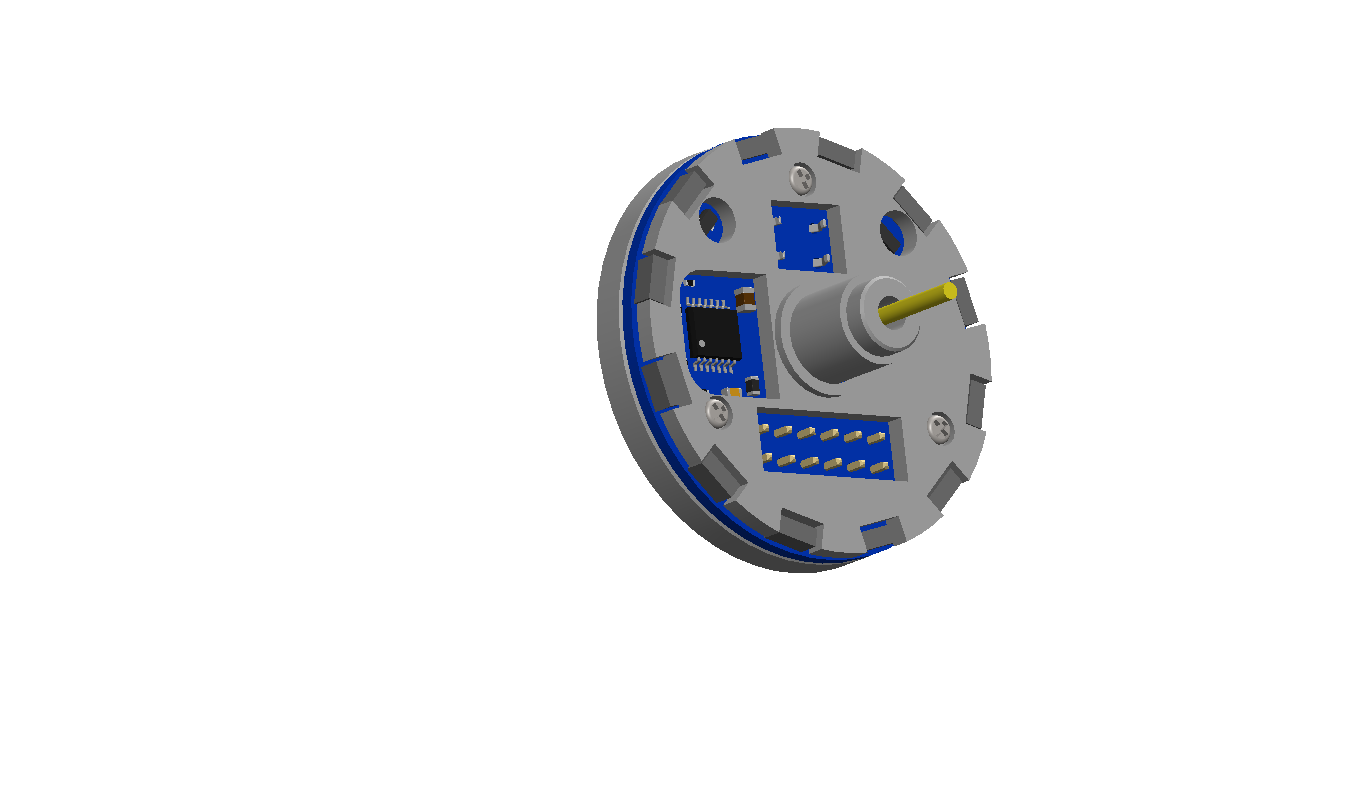

secure using 3x M1.4x6mm self-tapping screws

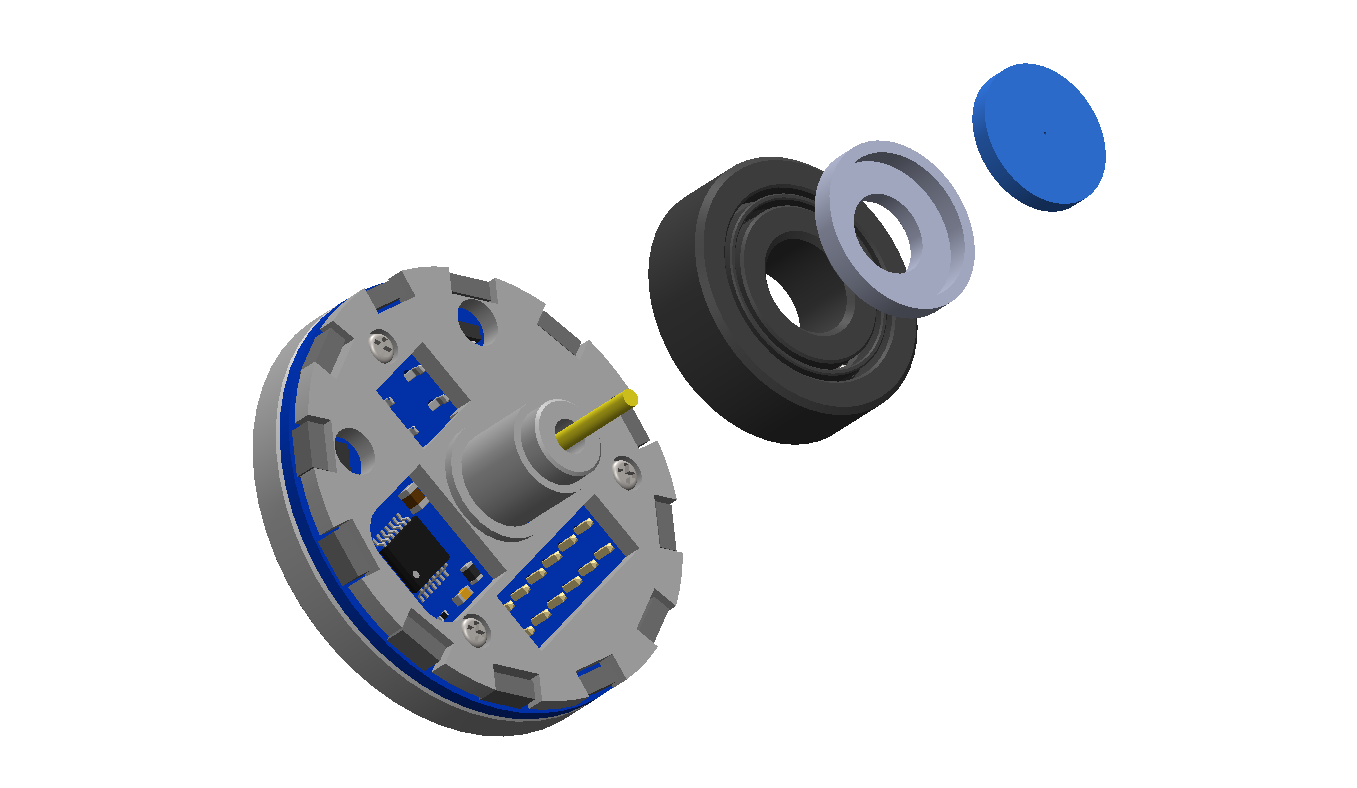

install 608 bearing

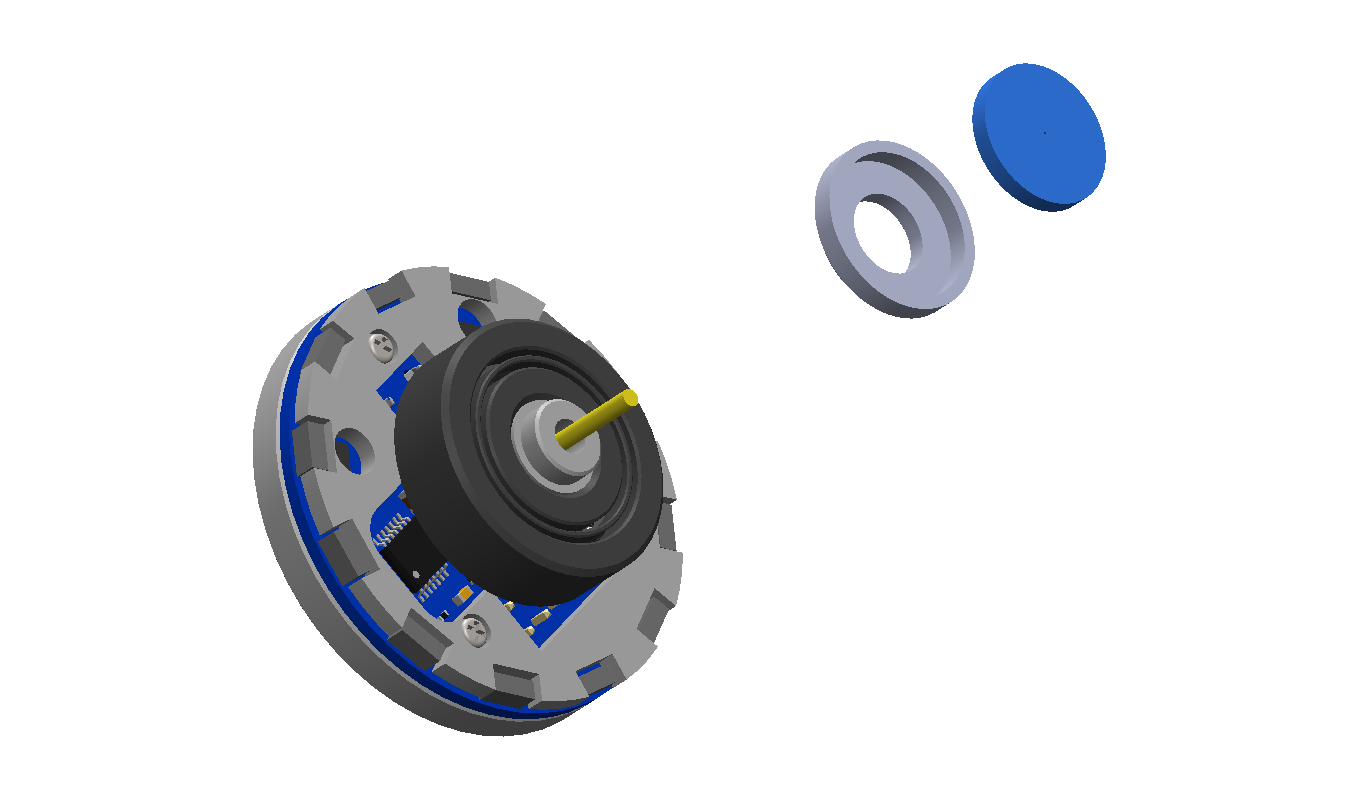

glue on the BEARING TOP HOLDER part to the BOARD TOP

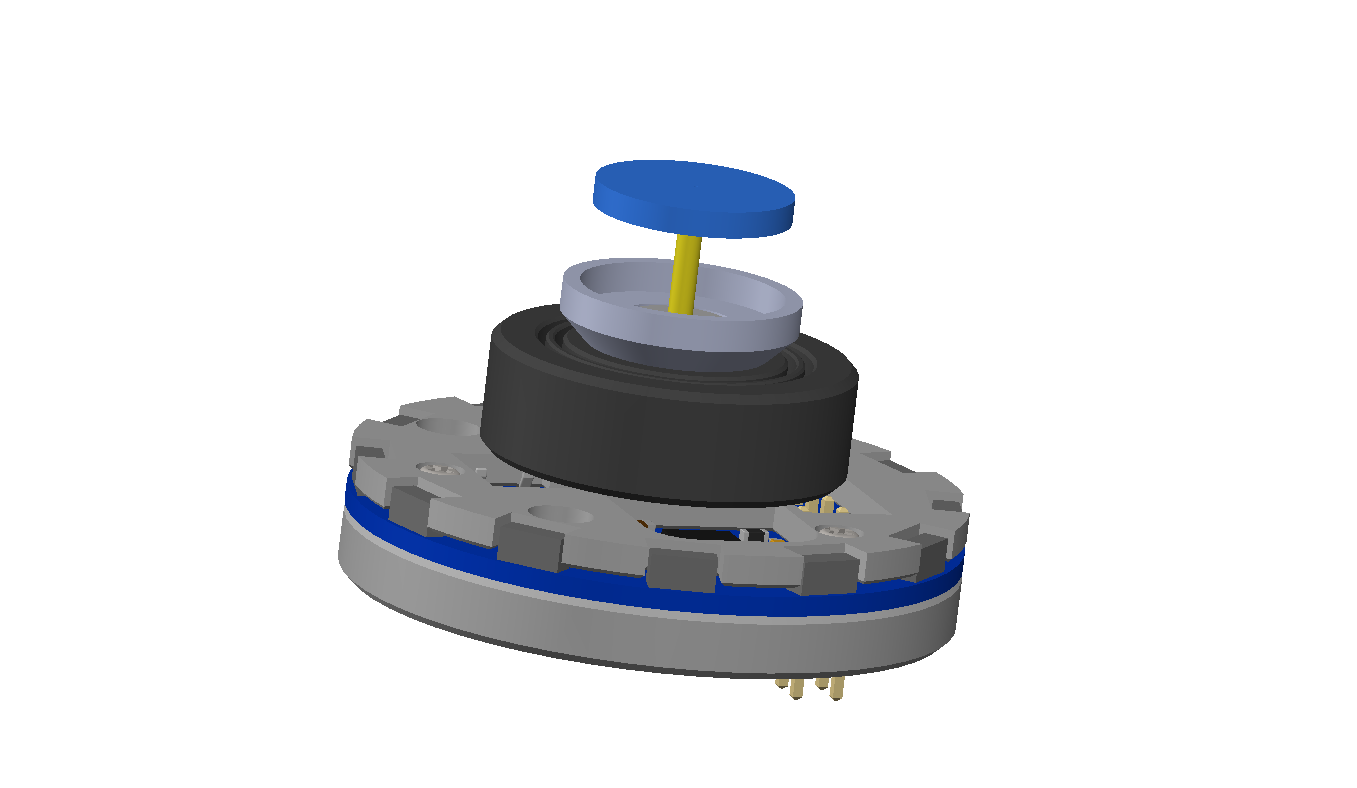

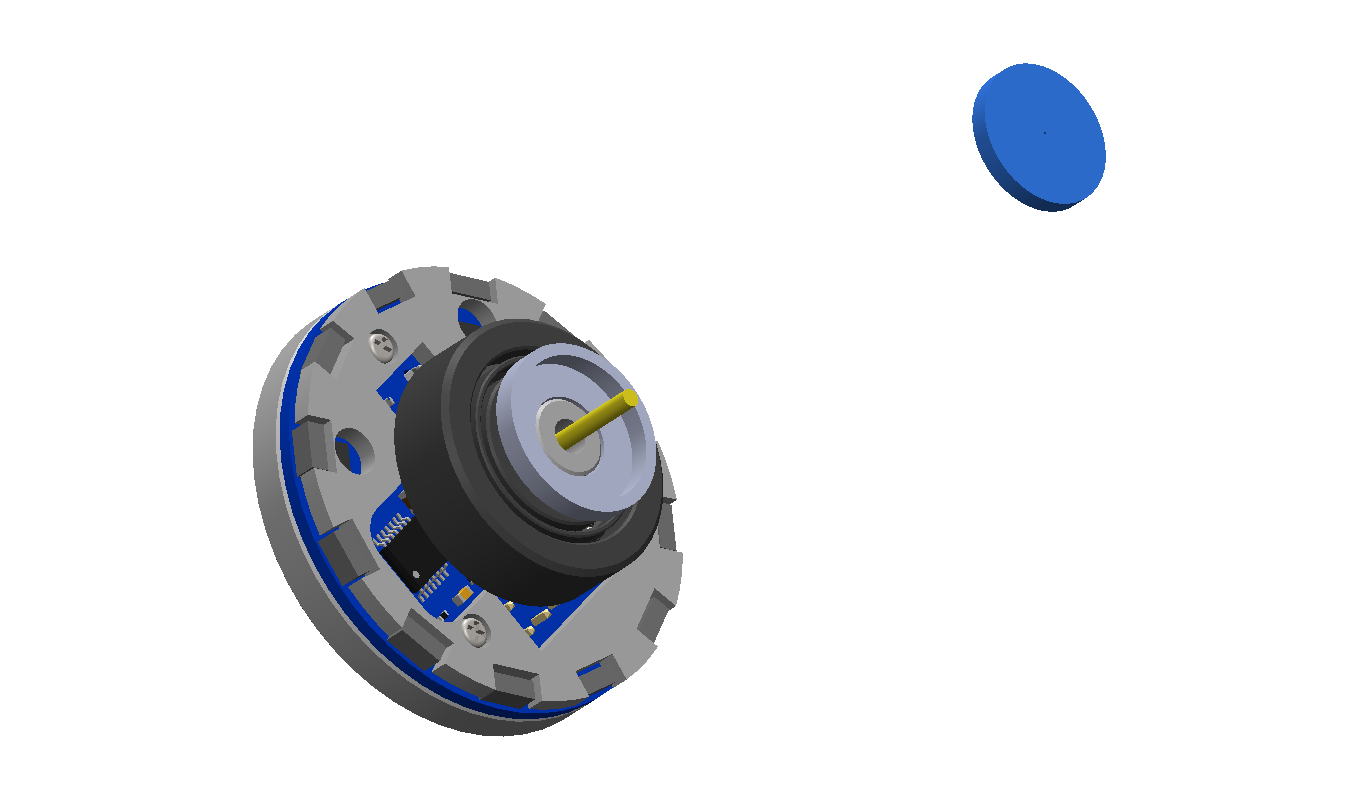

solder the other side of the capacitive touch wire to the CAPACITIVE TOUCHPAD and press fit or glue it to the BEARING TOP HOLDER

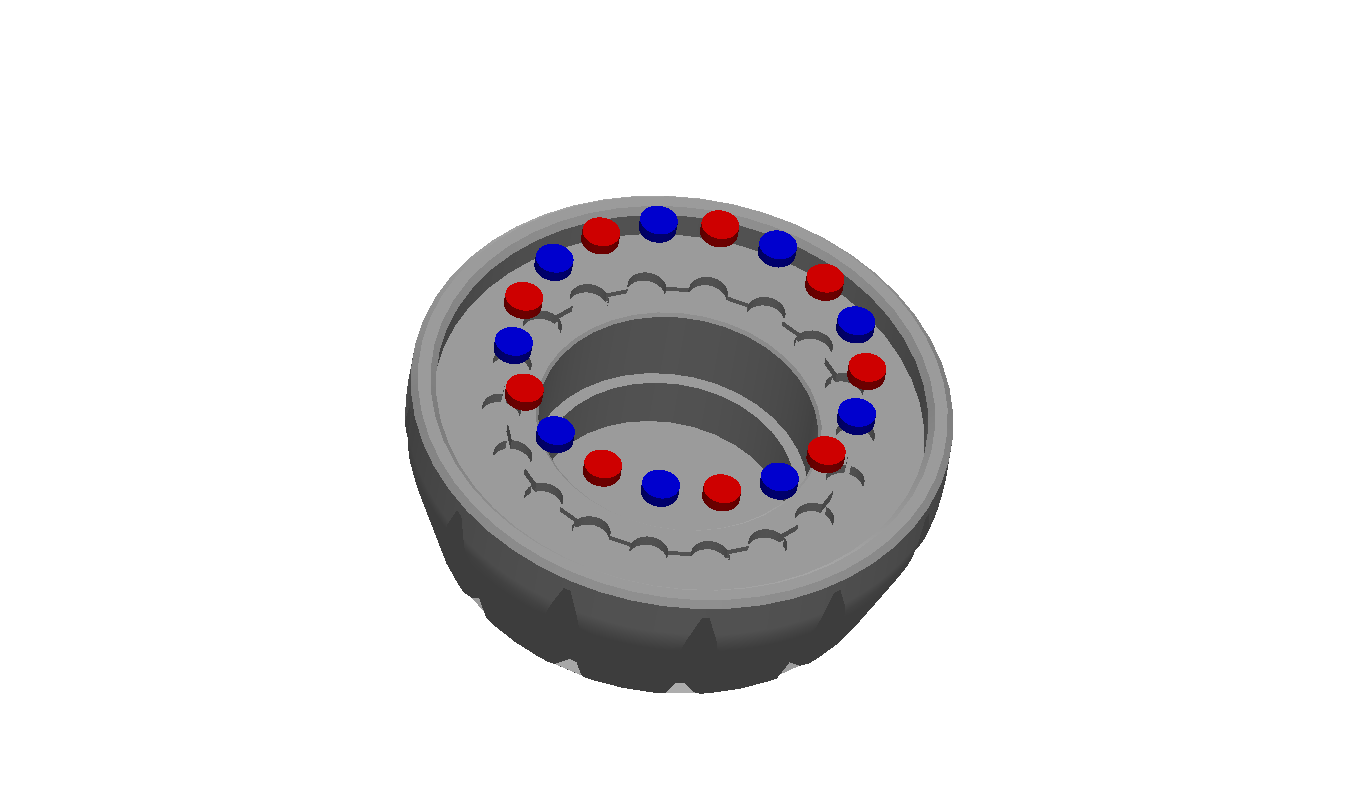

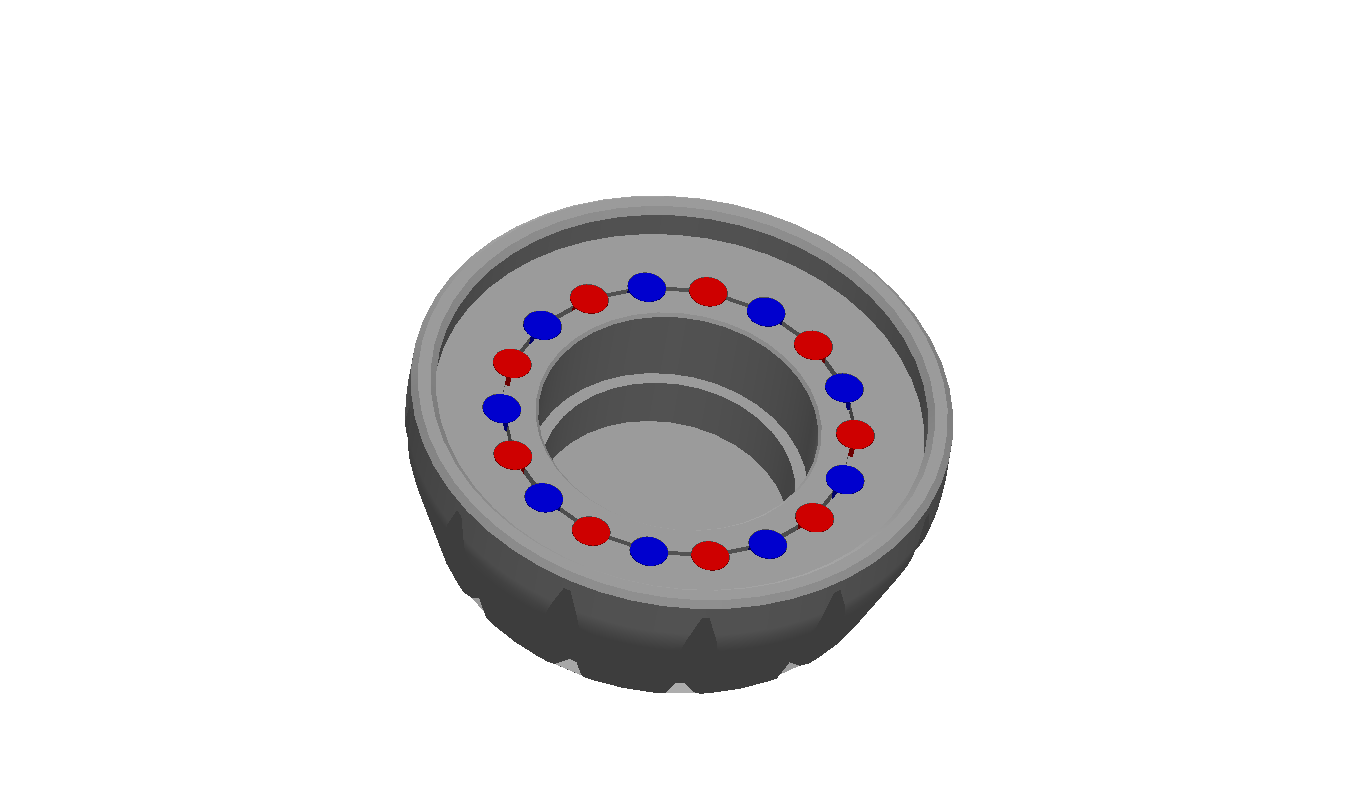

install 18x 3x1mm neodymium magnets to the KNOB in an alternating pole configuration (press fit or glue)

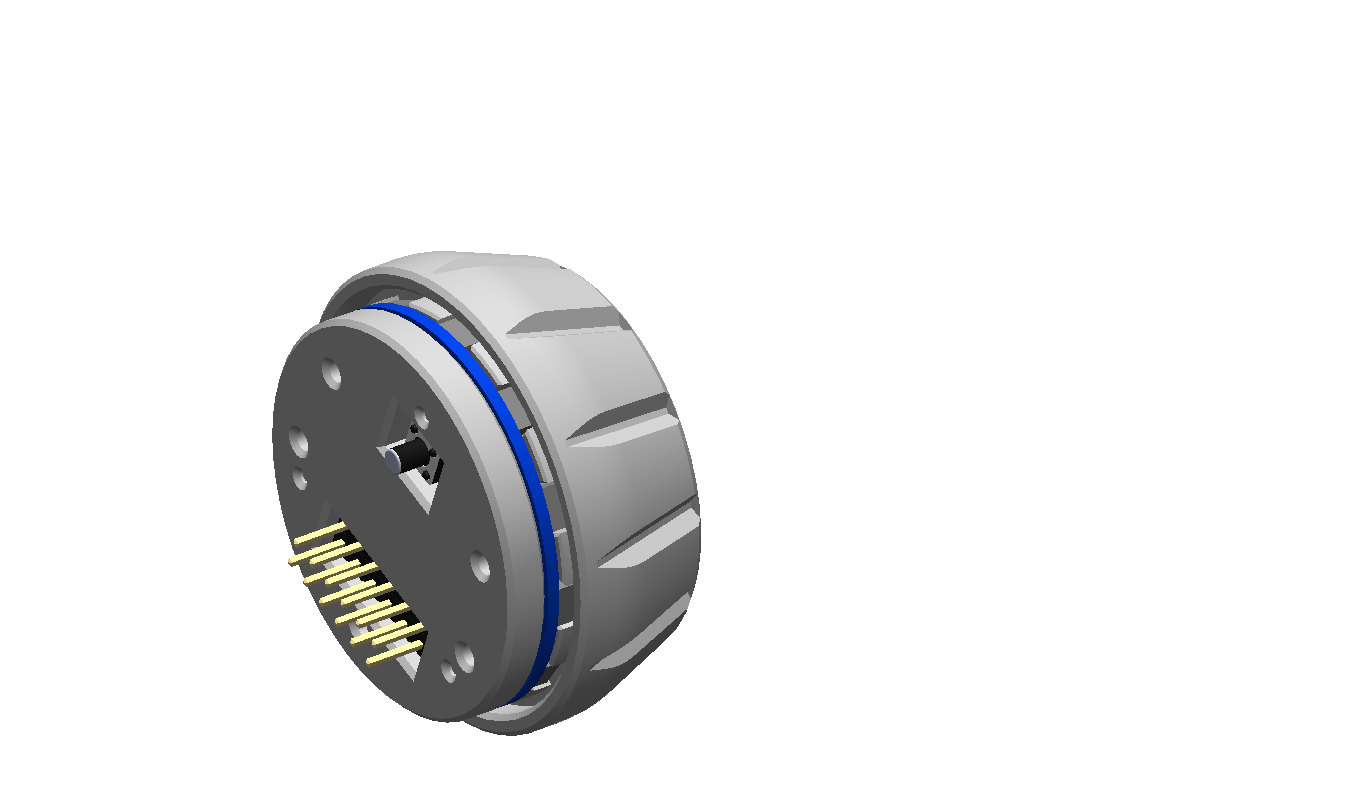

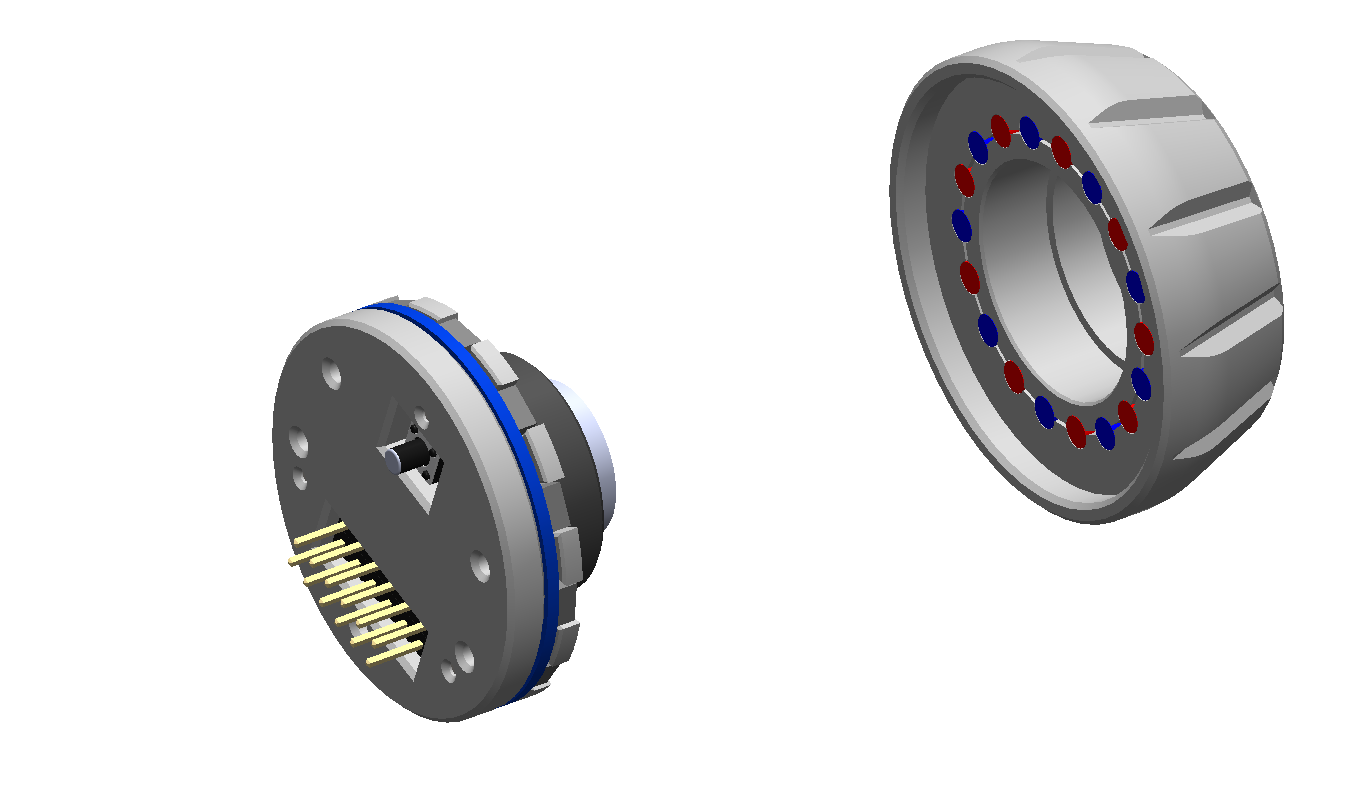

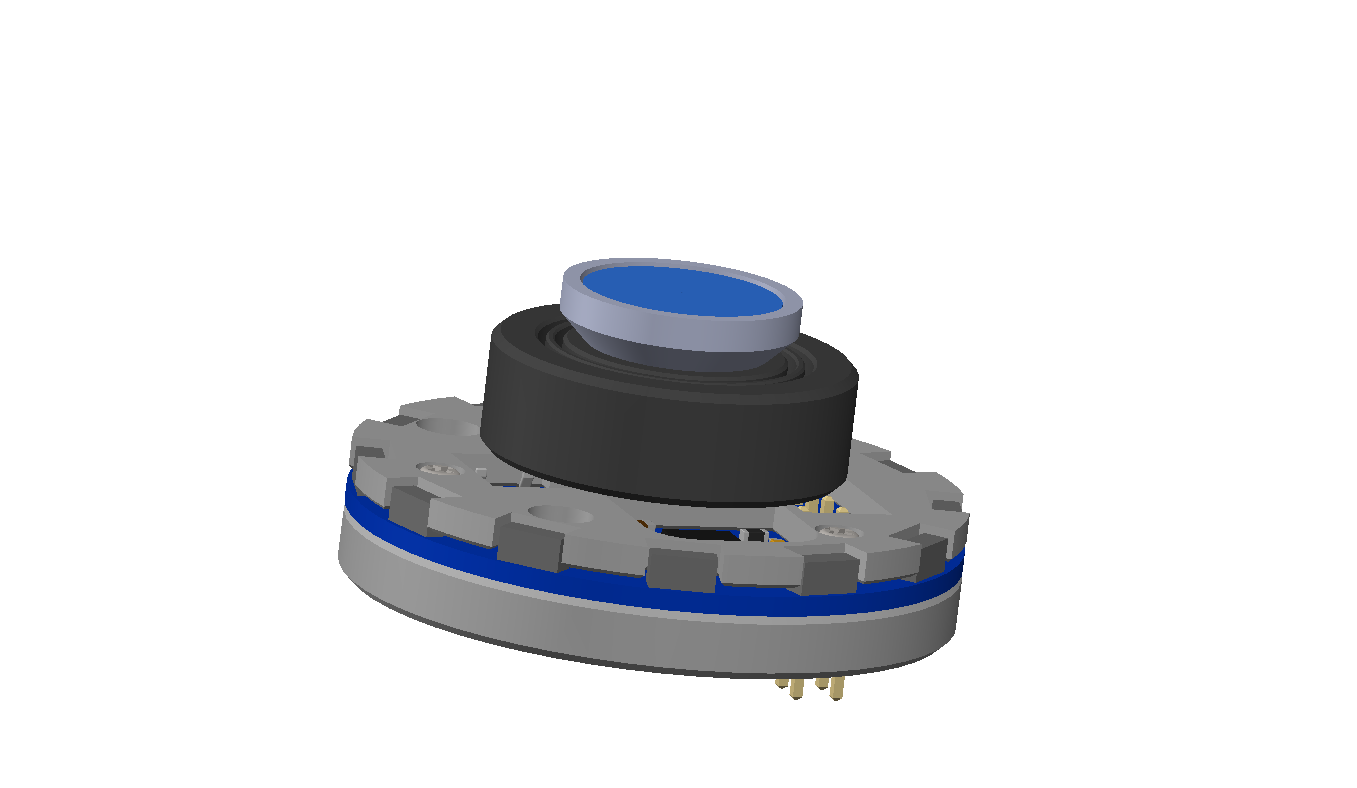

attach KNOB

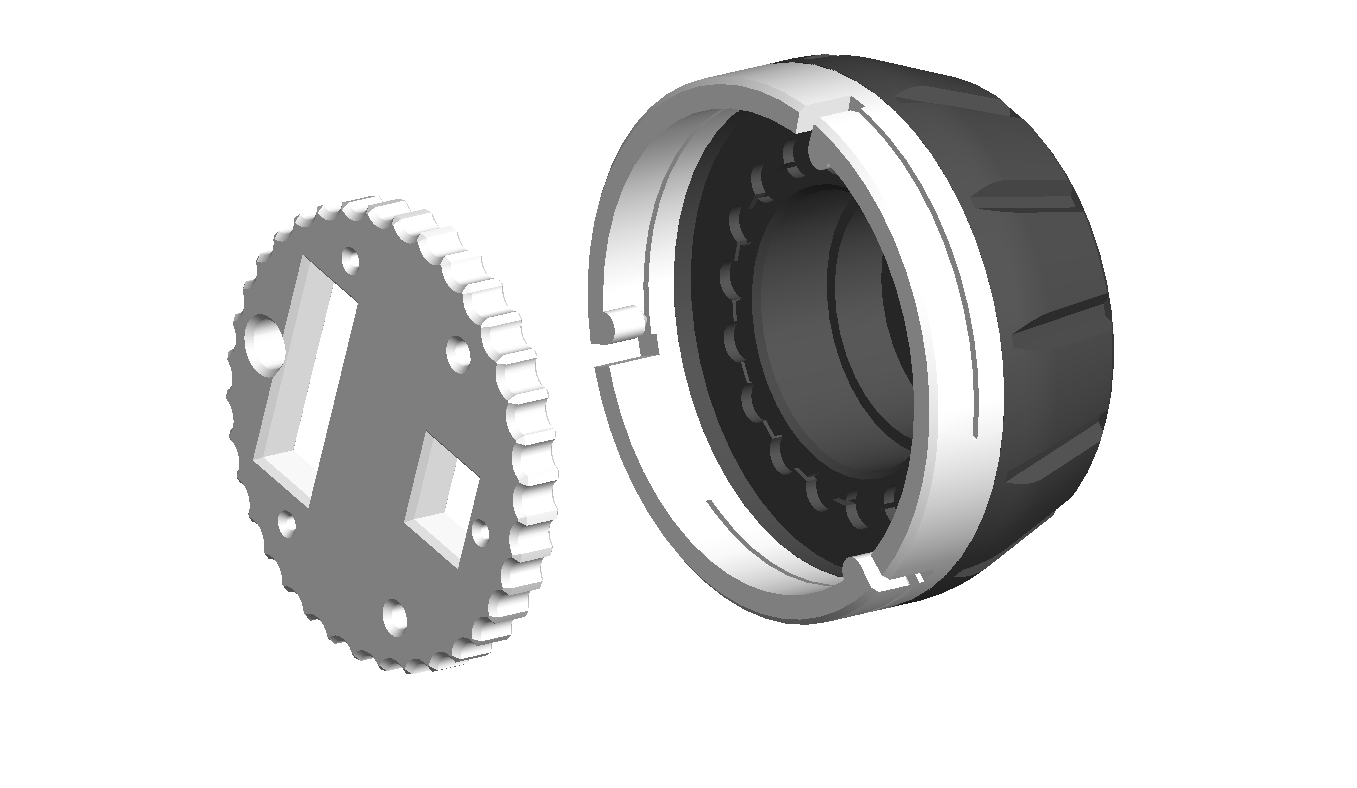

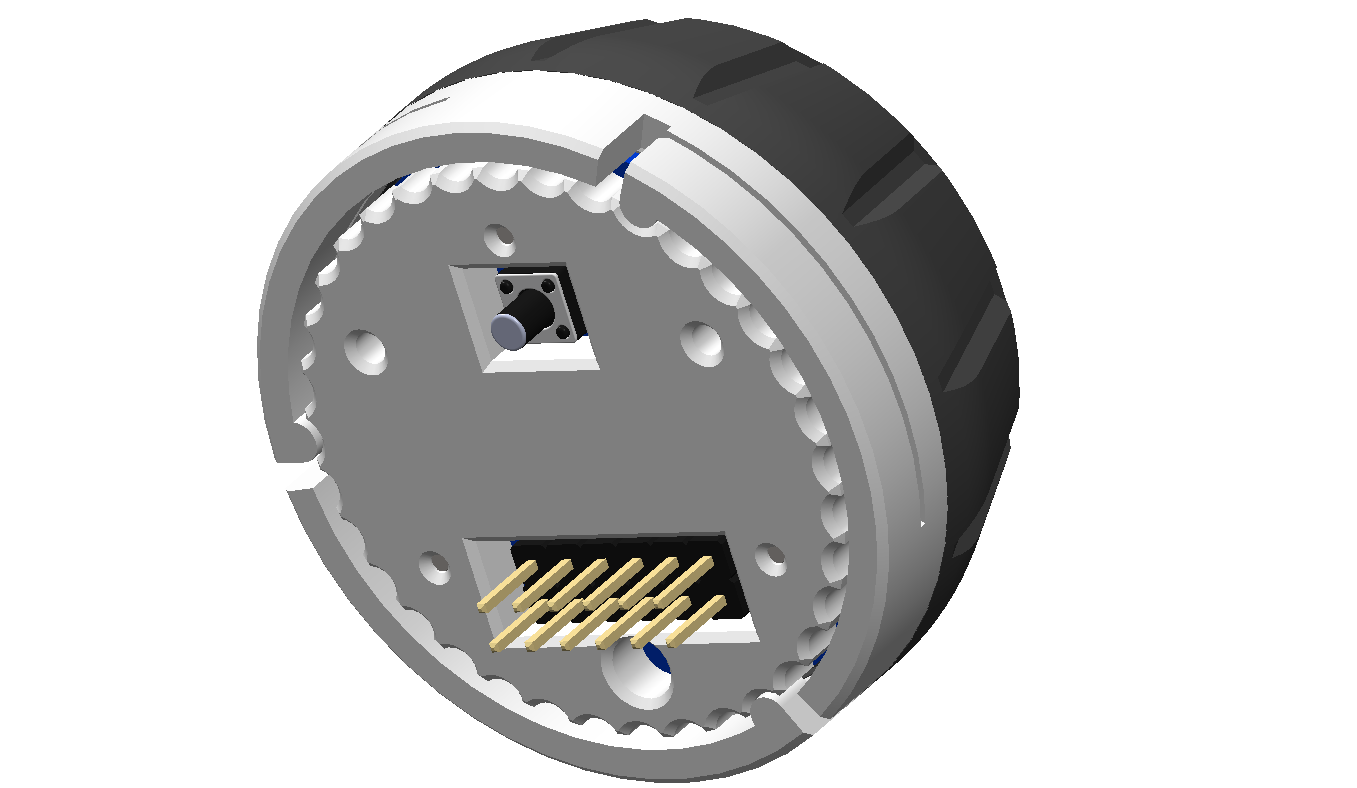

if you are planning to make the clicking “indexed“ encoder, use these parts in place of the default BOARD BOTTOM and KNOB

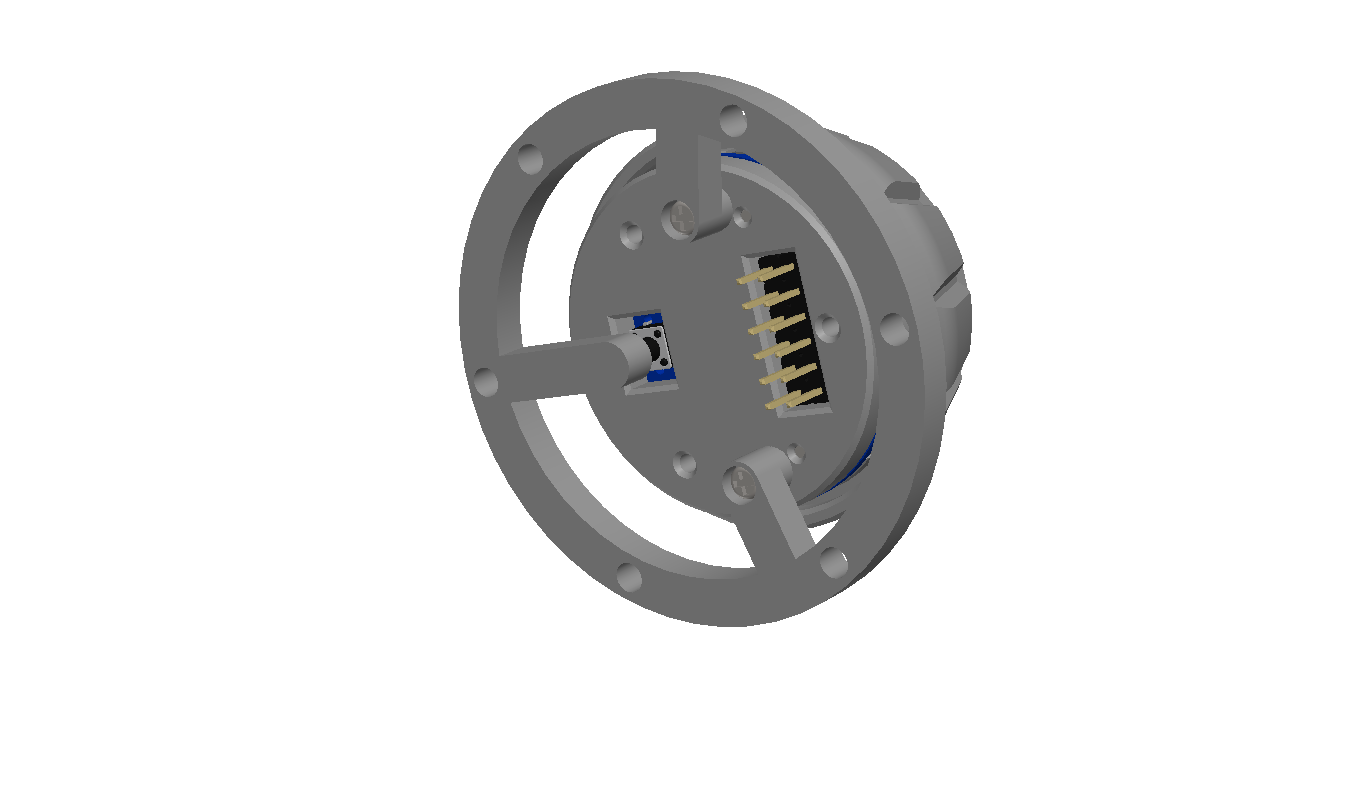

installing the mounting base is optional, and it may not be needed for your specific application.

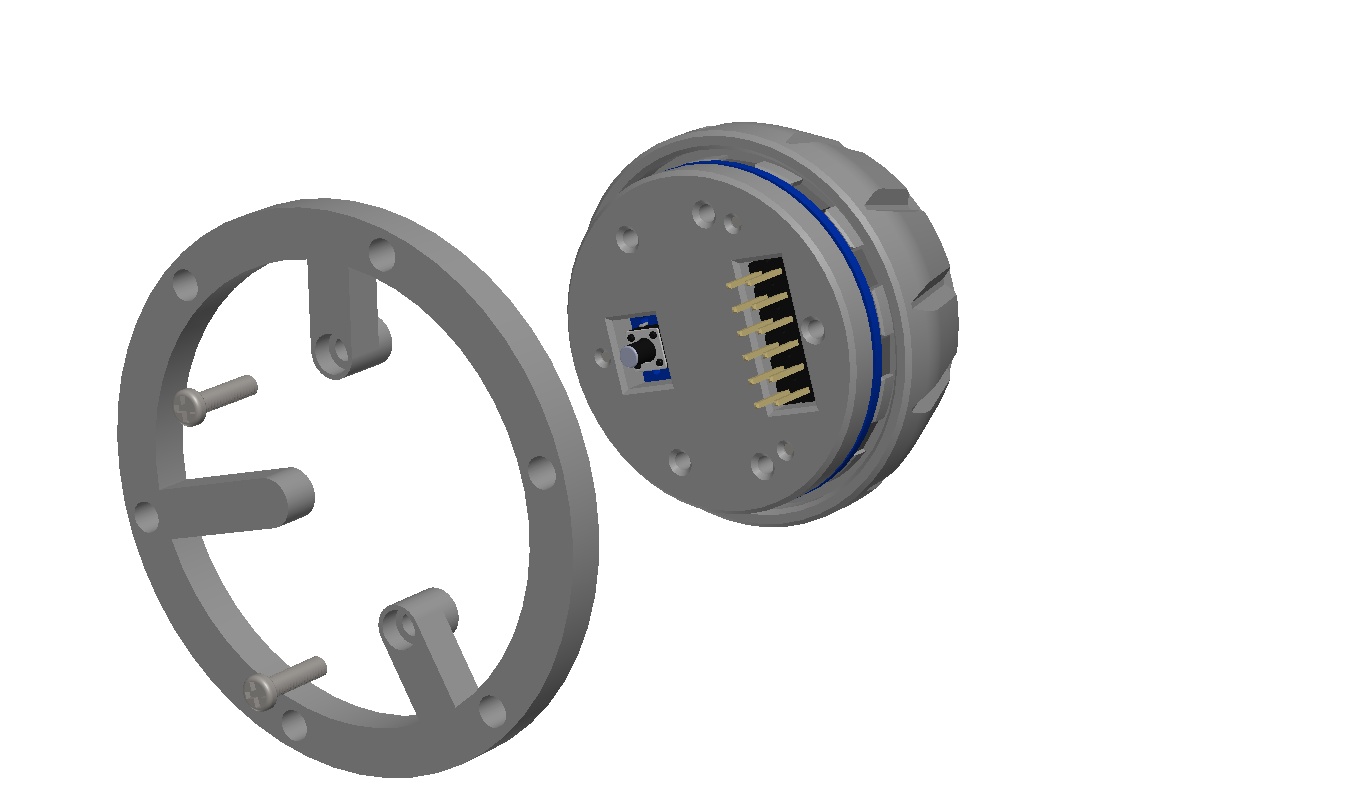

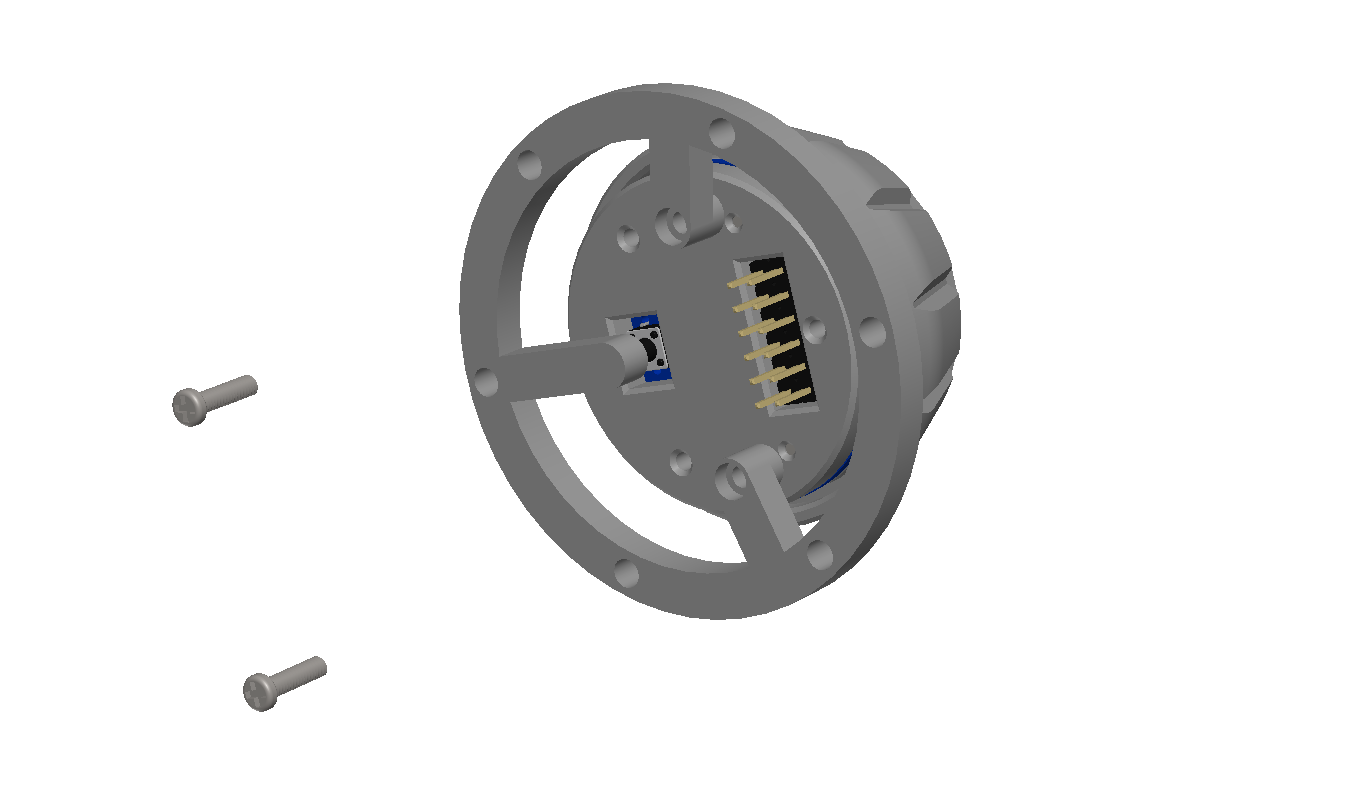

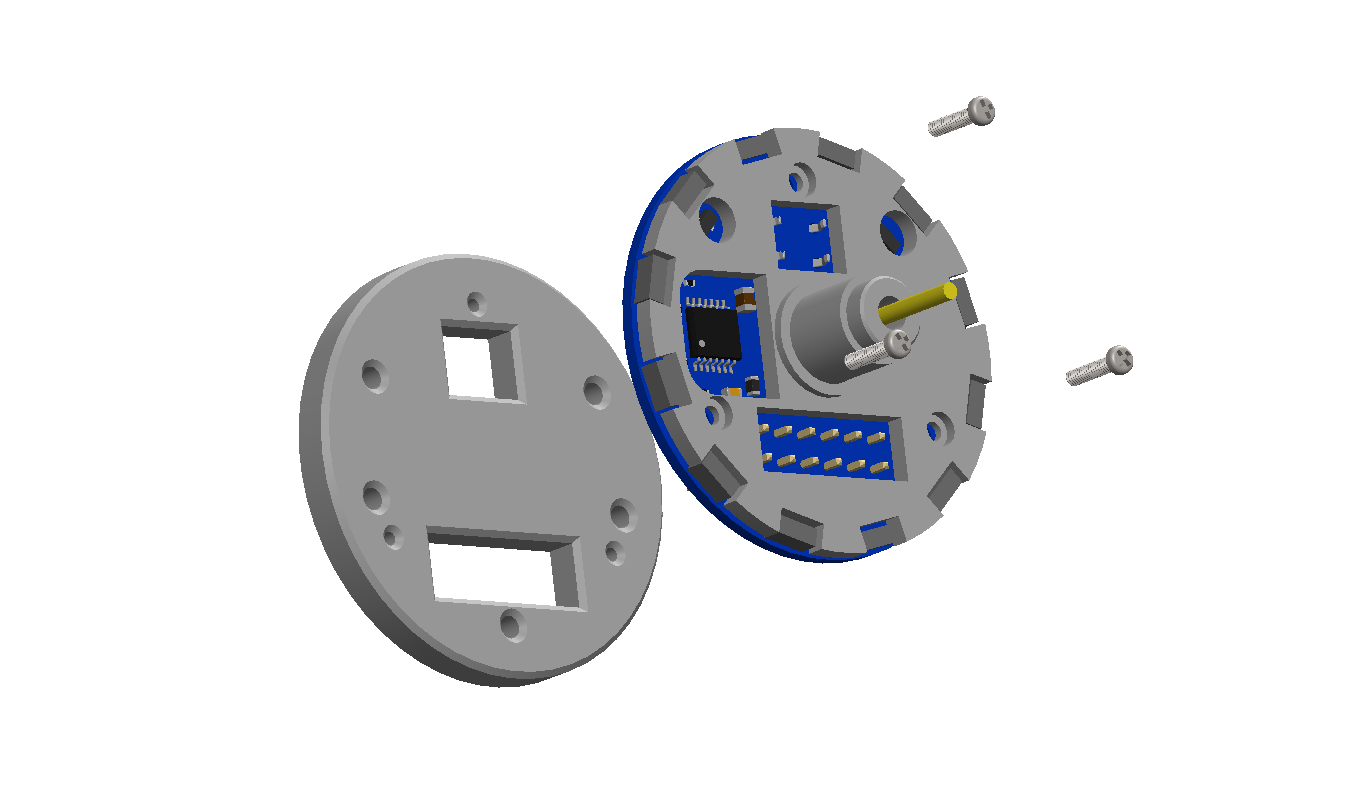

secure the base to the encoder using 2x M2x8mm self-tapping screws.

Downloads:

Magnetic Rotary Encoder MINI 3D files

Hardware

• Magnetic Rotary Encoder MINI Kit

• 1x 608 Ball Bearing

• 3x M1.4x6mm self-tapping screws

• 2x M2x8mm self-tapping screws (optional)

• (18x) 3x1mm Neodymium magnets.

3D Printed Parts

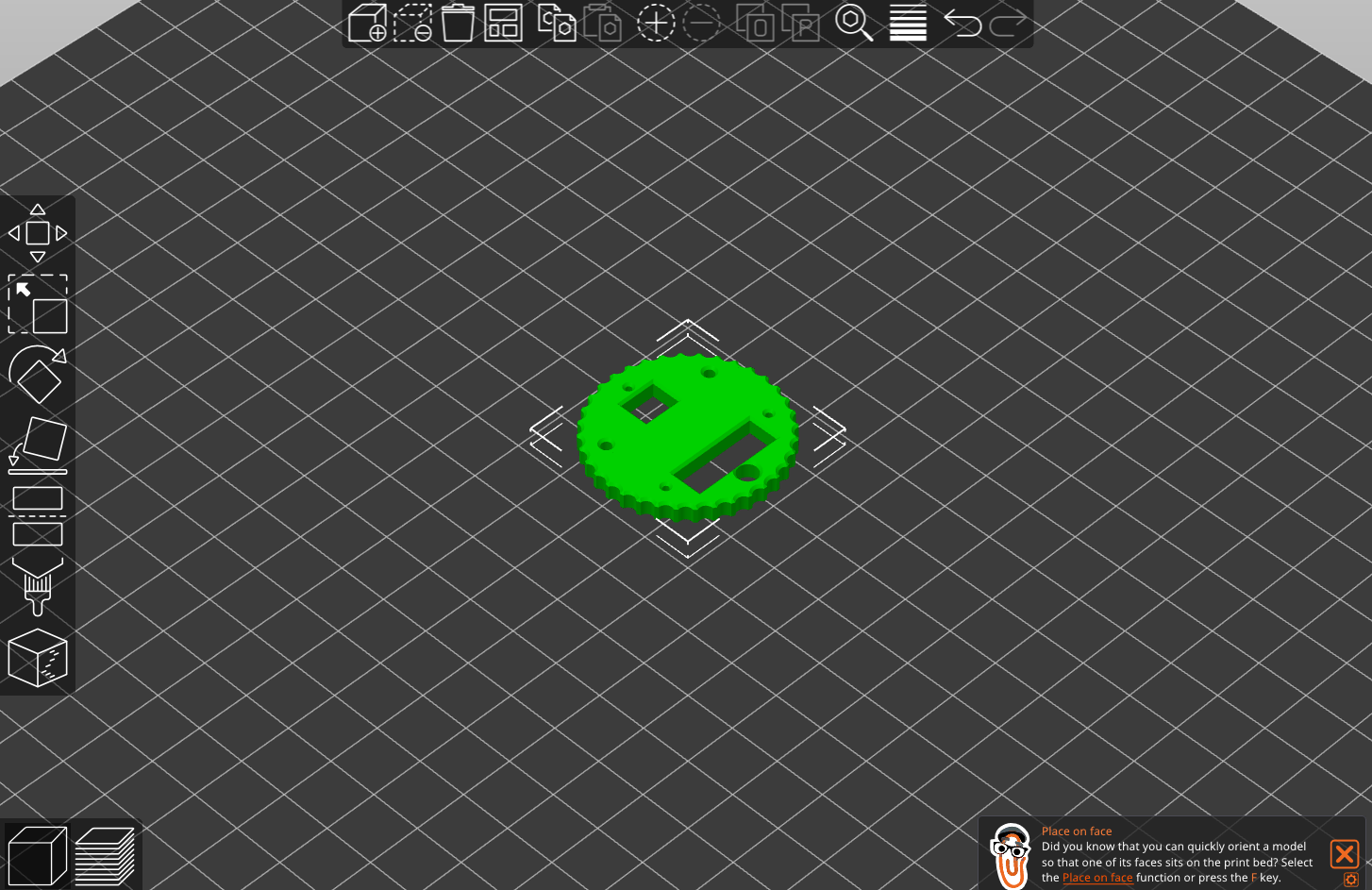

BOARD TOP

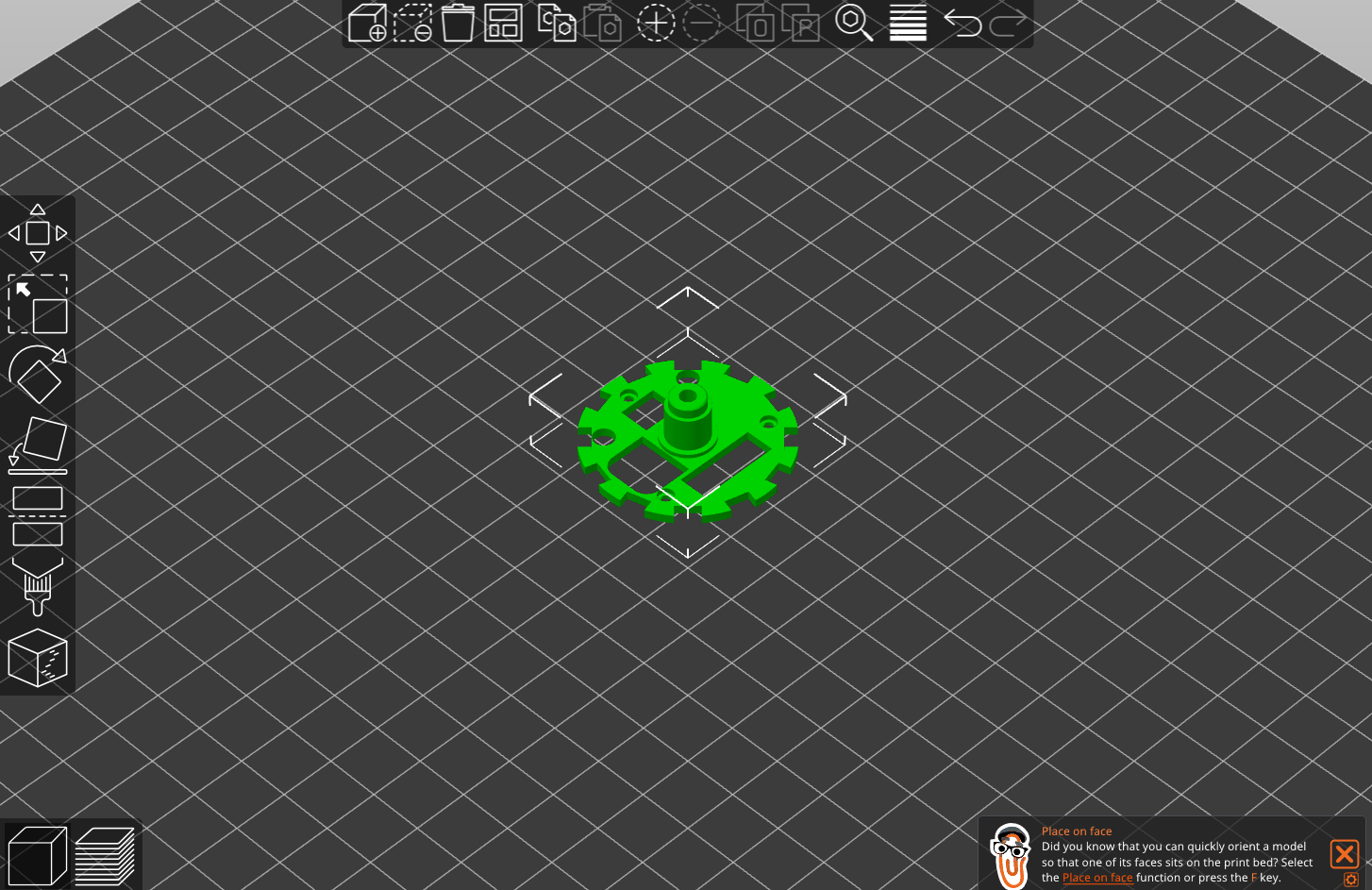

BOARD BOTTOM

BOARD BOTTOM FOR INDEXED KNOB

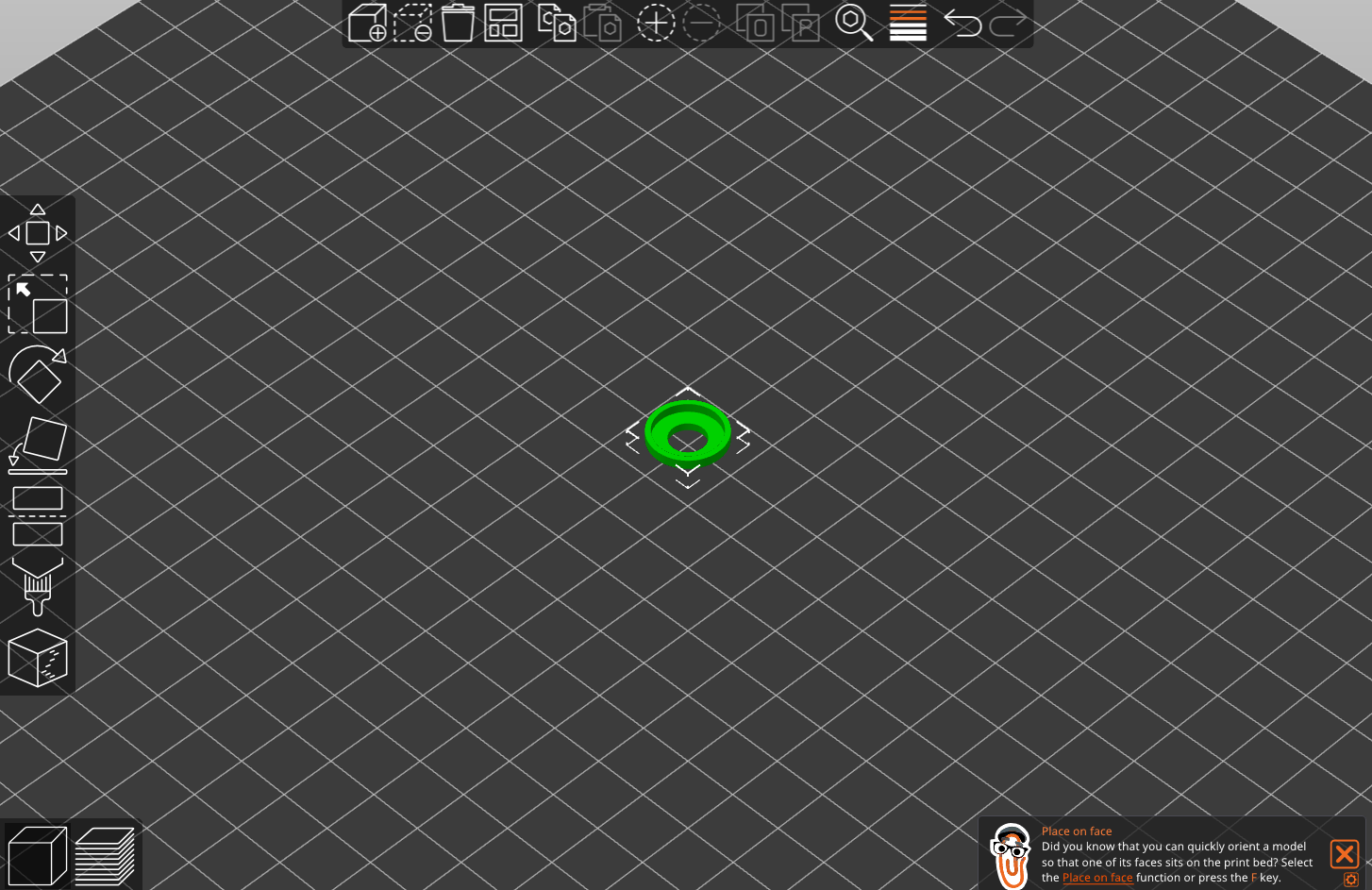

BEARING TOP HOLDER

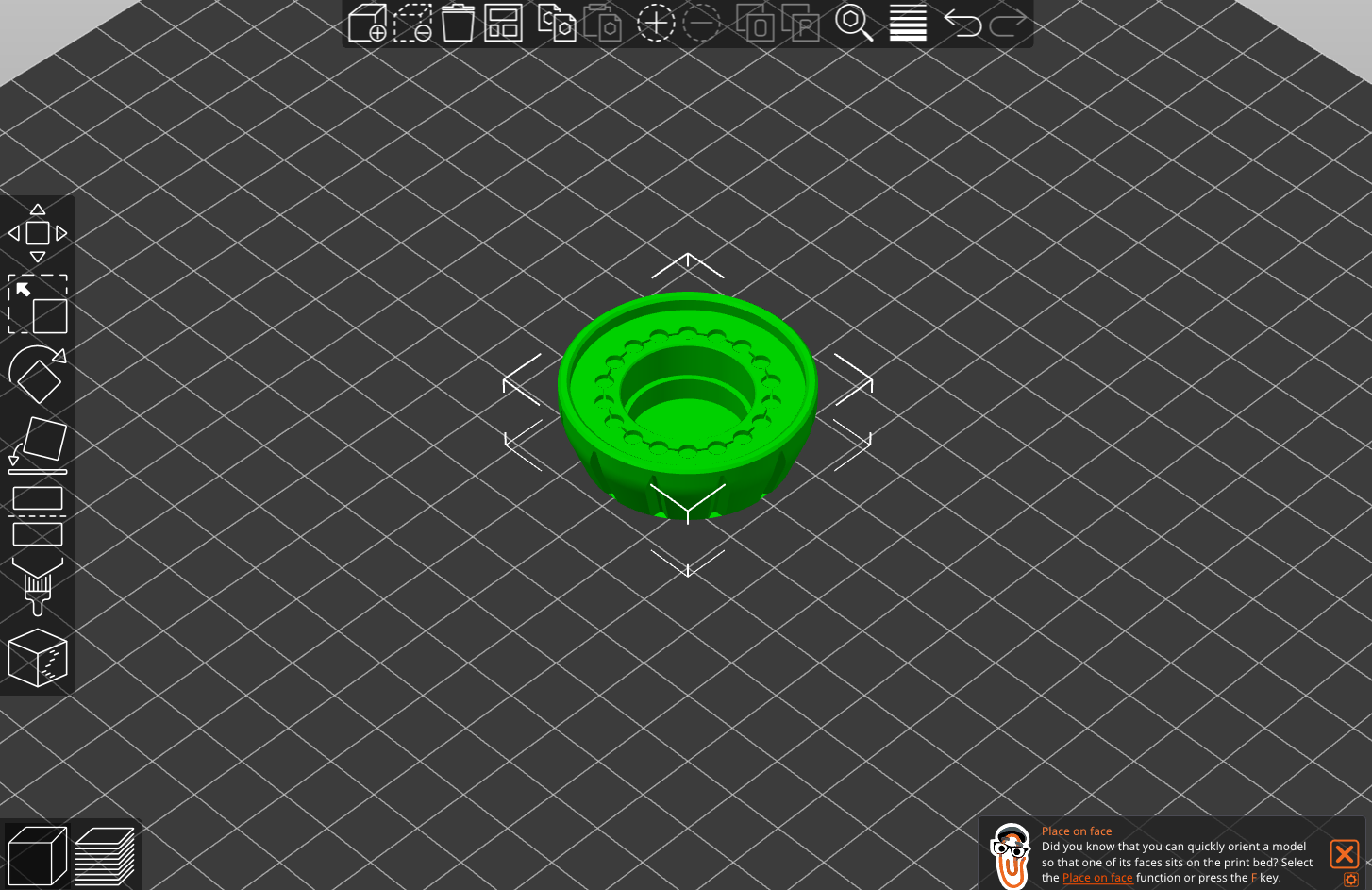

KNOB

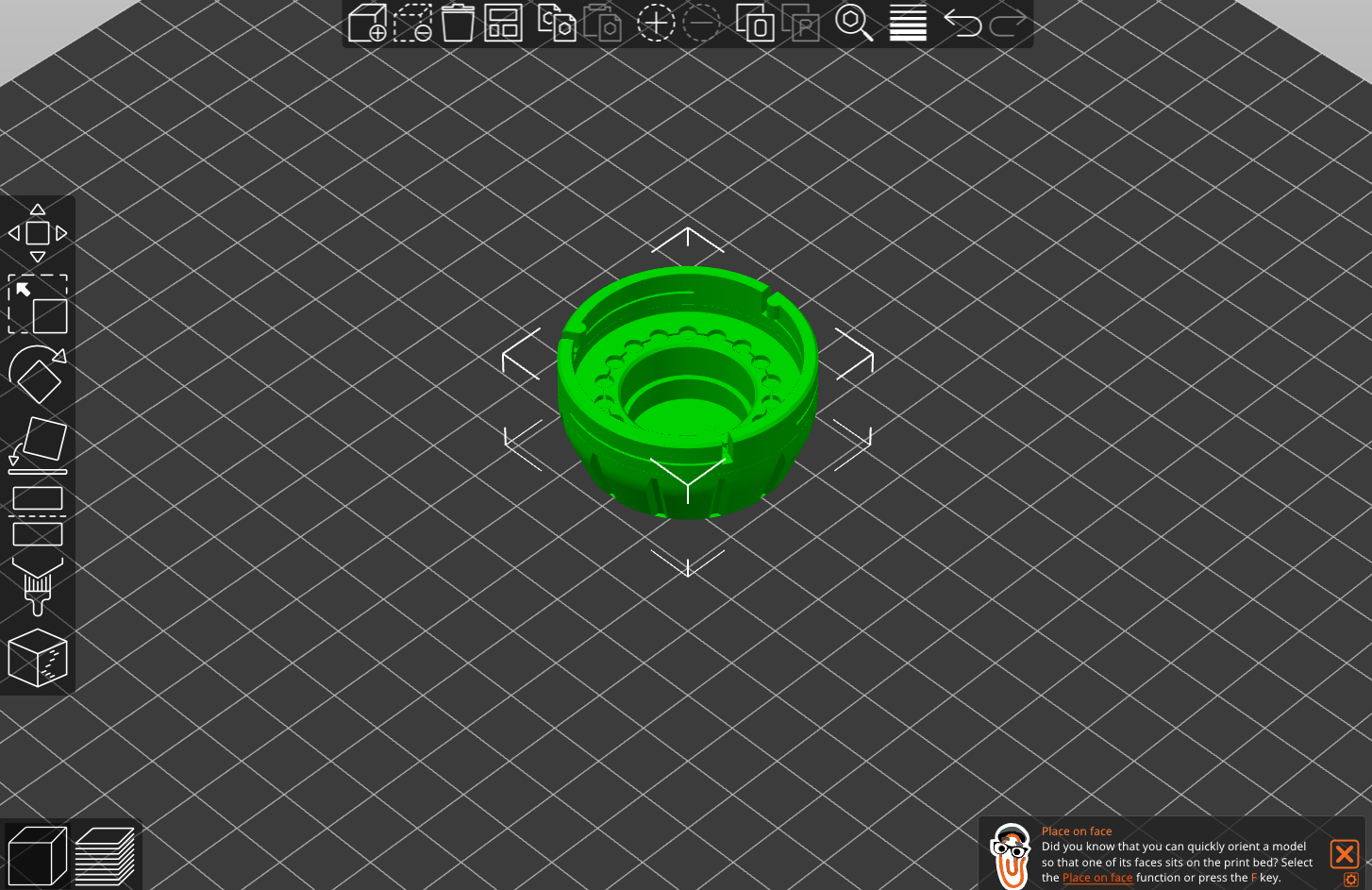

INDEXED KNOB

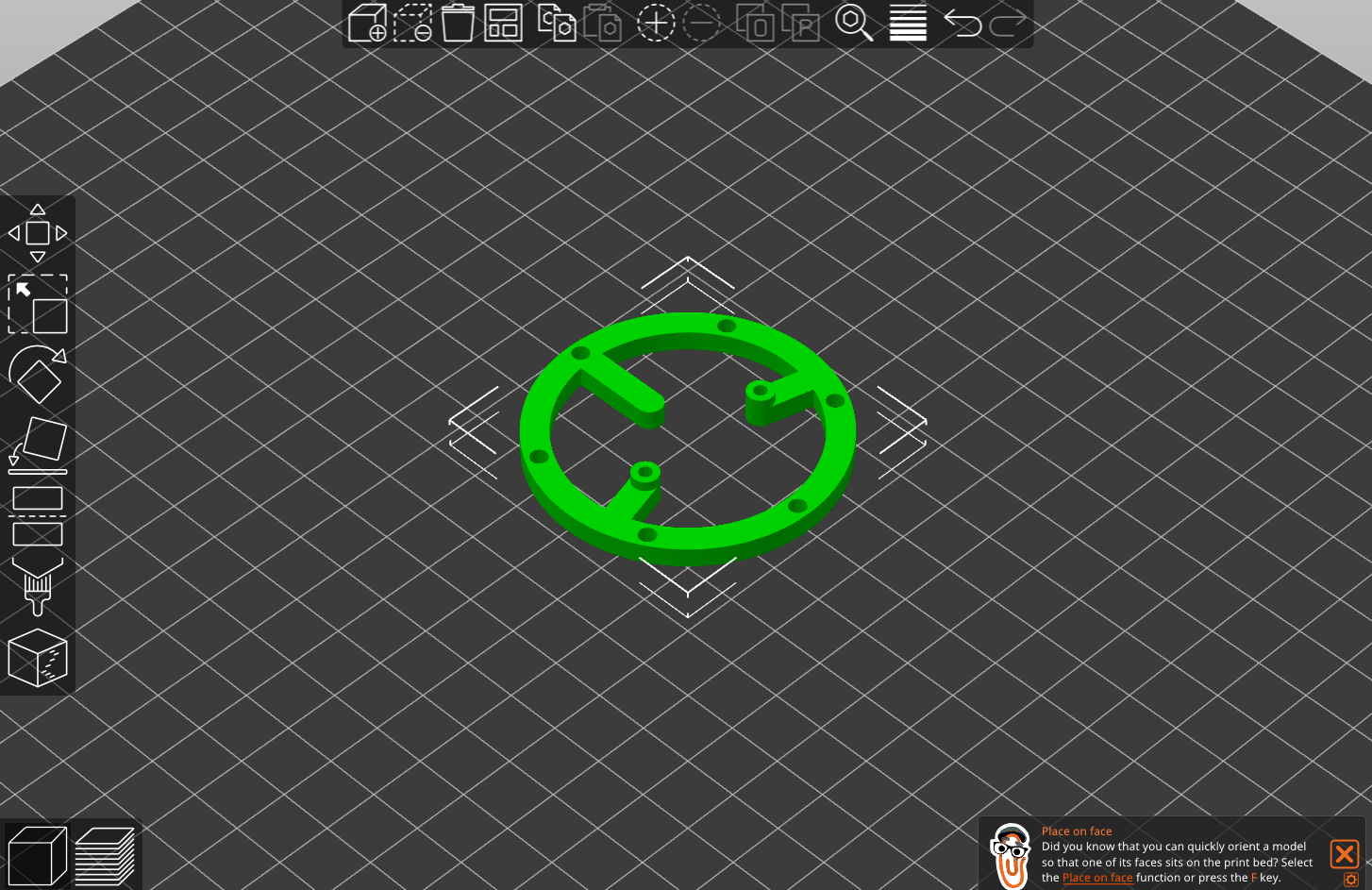

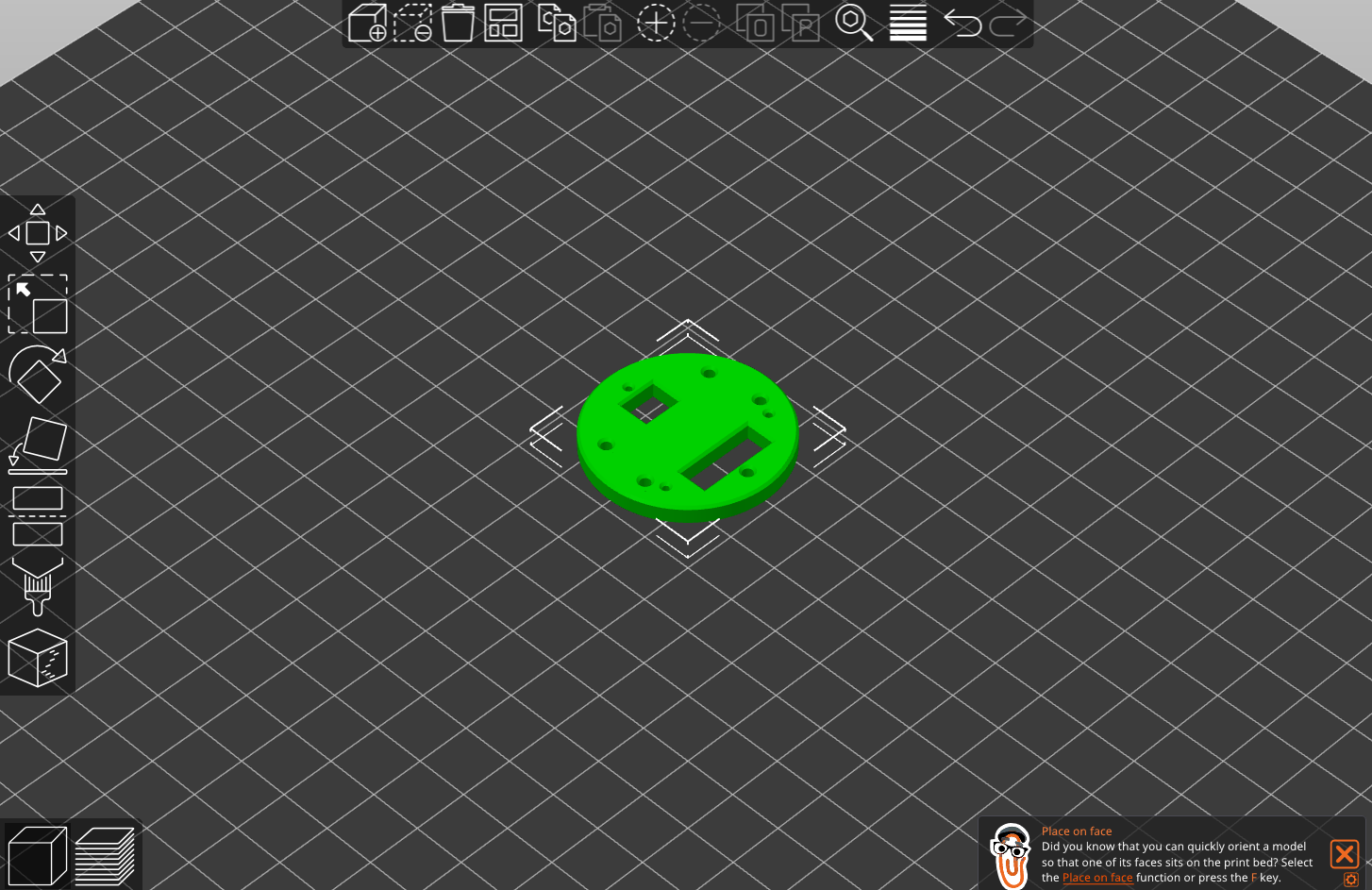

MOUNTING BASE (OPTIONAL)

After acquiring the required hardware and 3D printing the required parts, scroll to the slide at the top of the page to begin assembling your encoder.

See Code and Details on GitHub

Learn more about this project >
