PICO DEV M3 Assembly Instructions

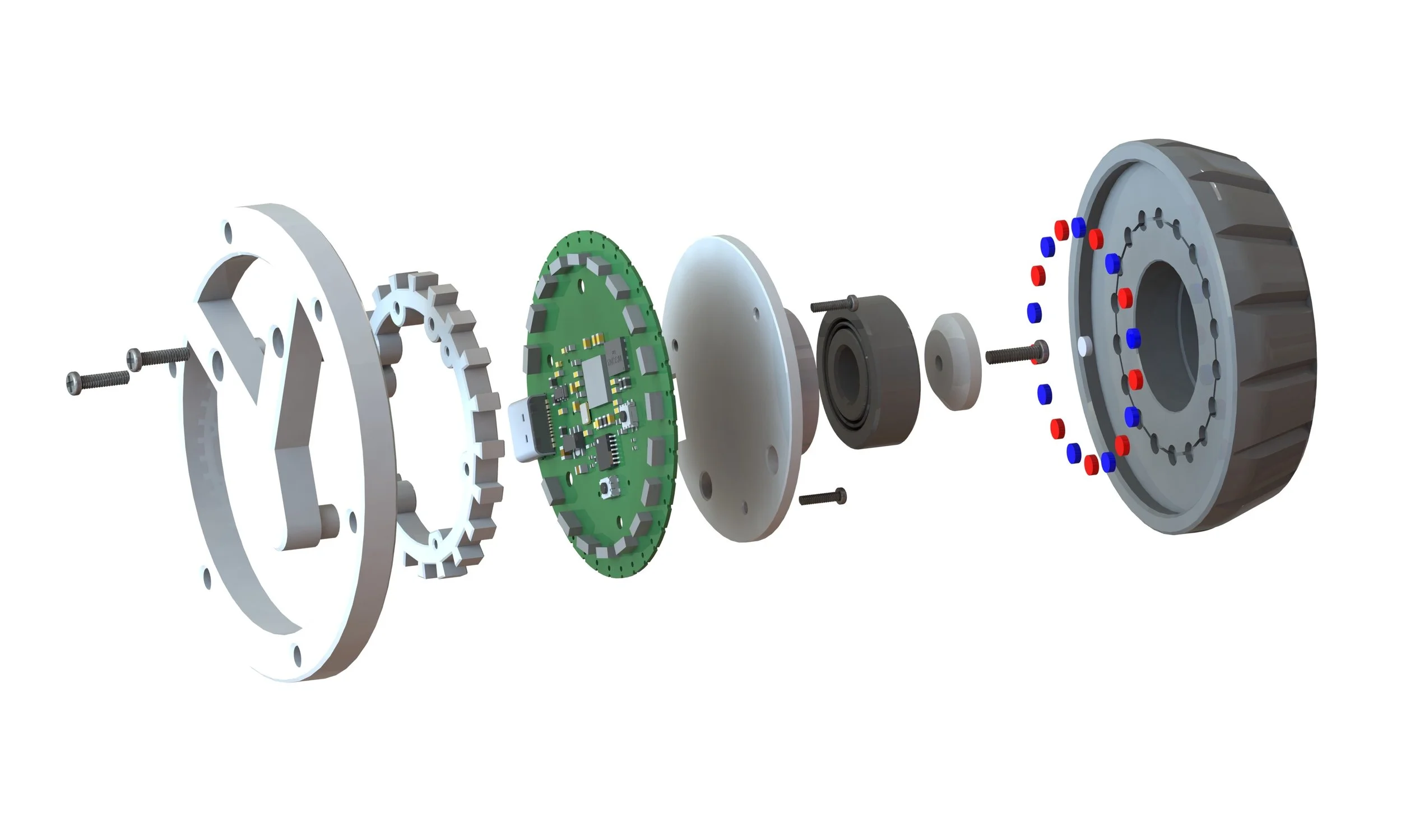

Make sure you have all the hardware and 3D-printed parts for the PICO DEV M3..

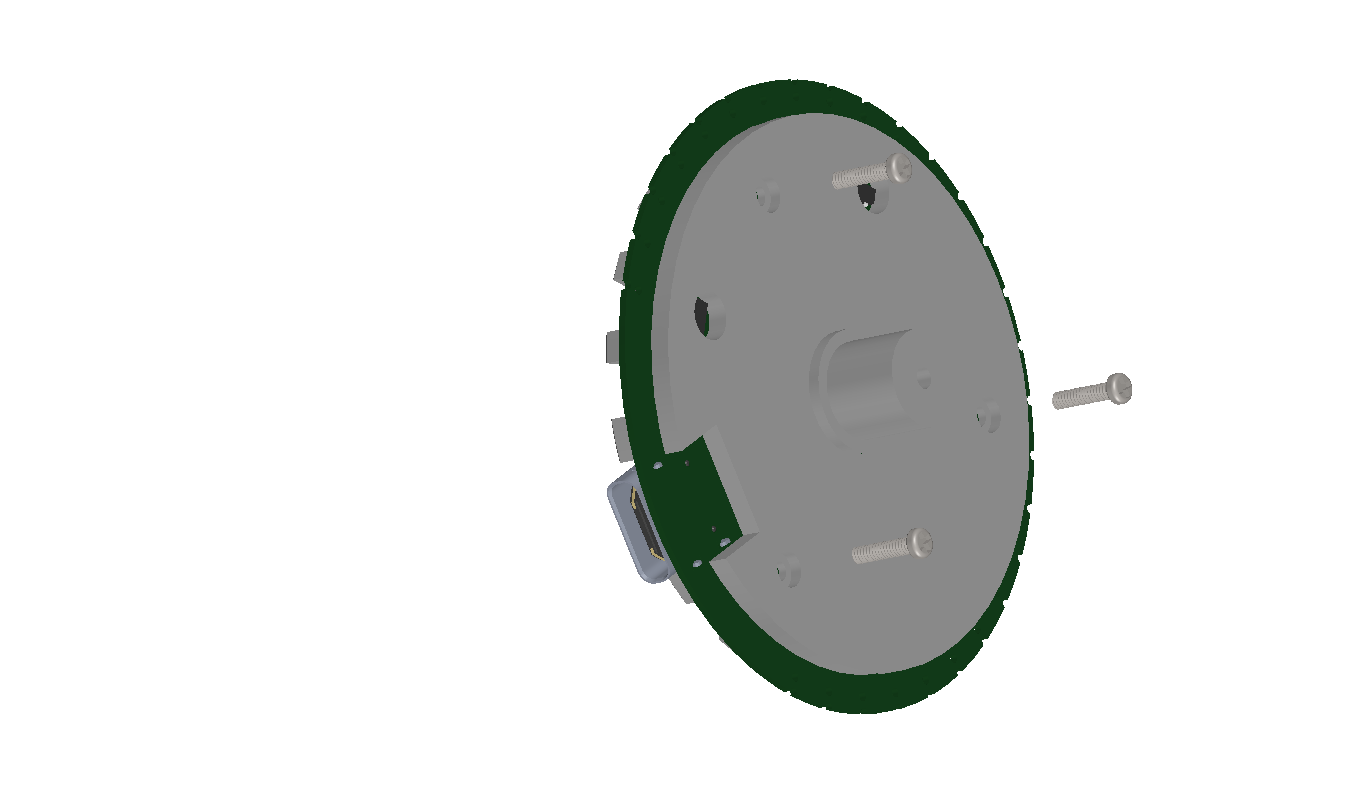

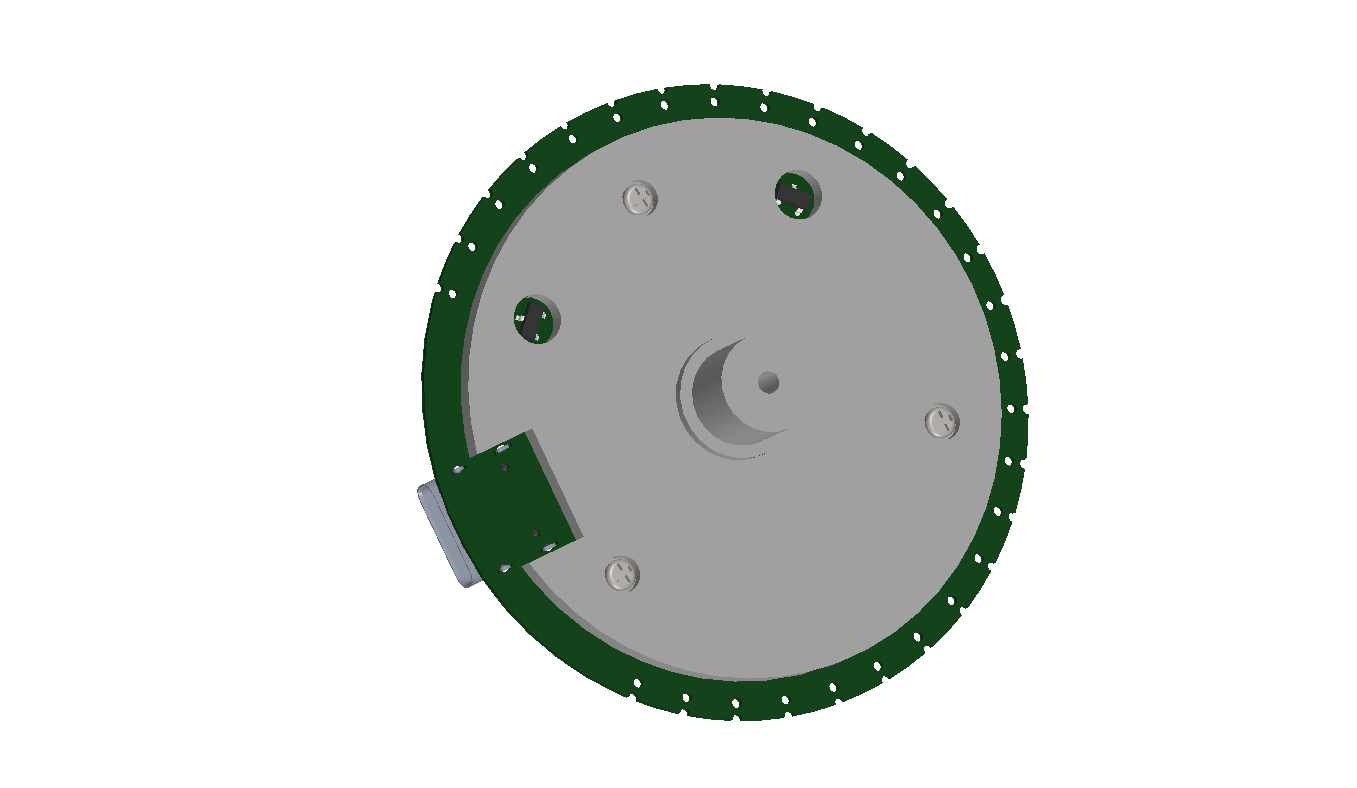

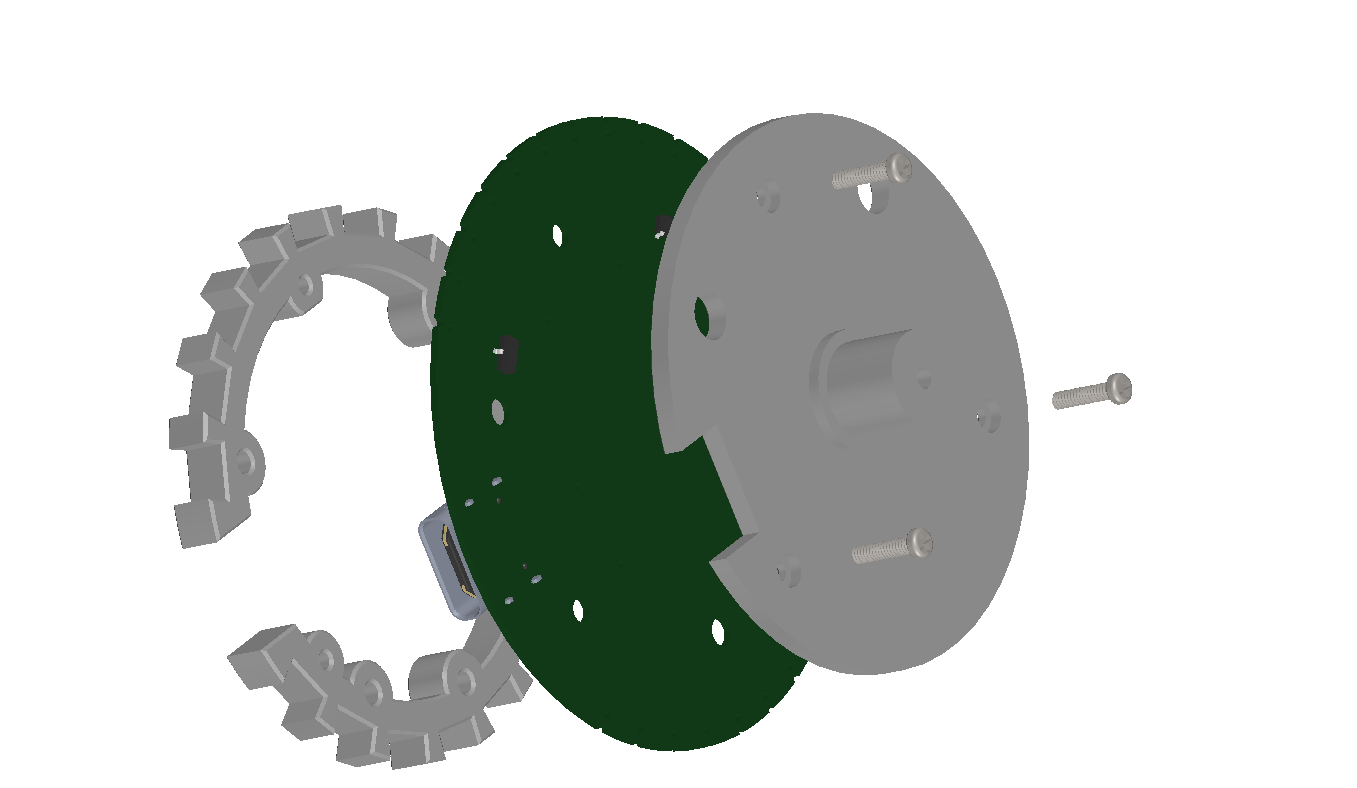

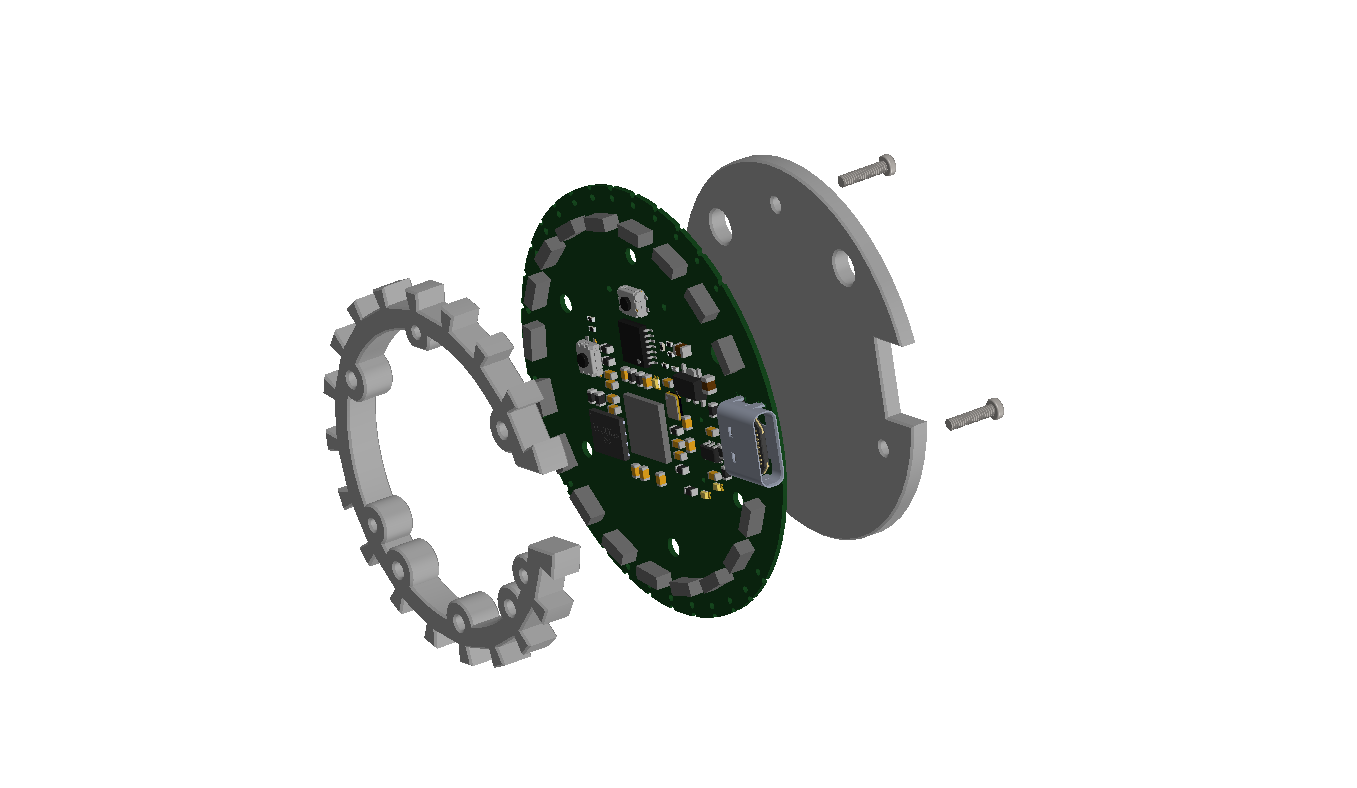

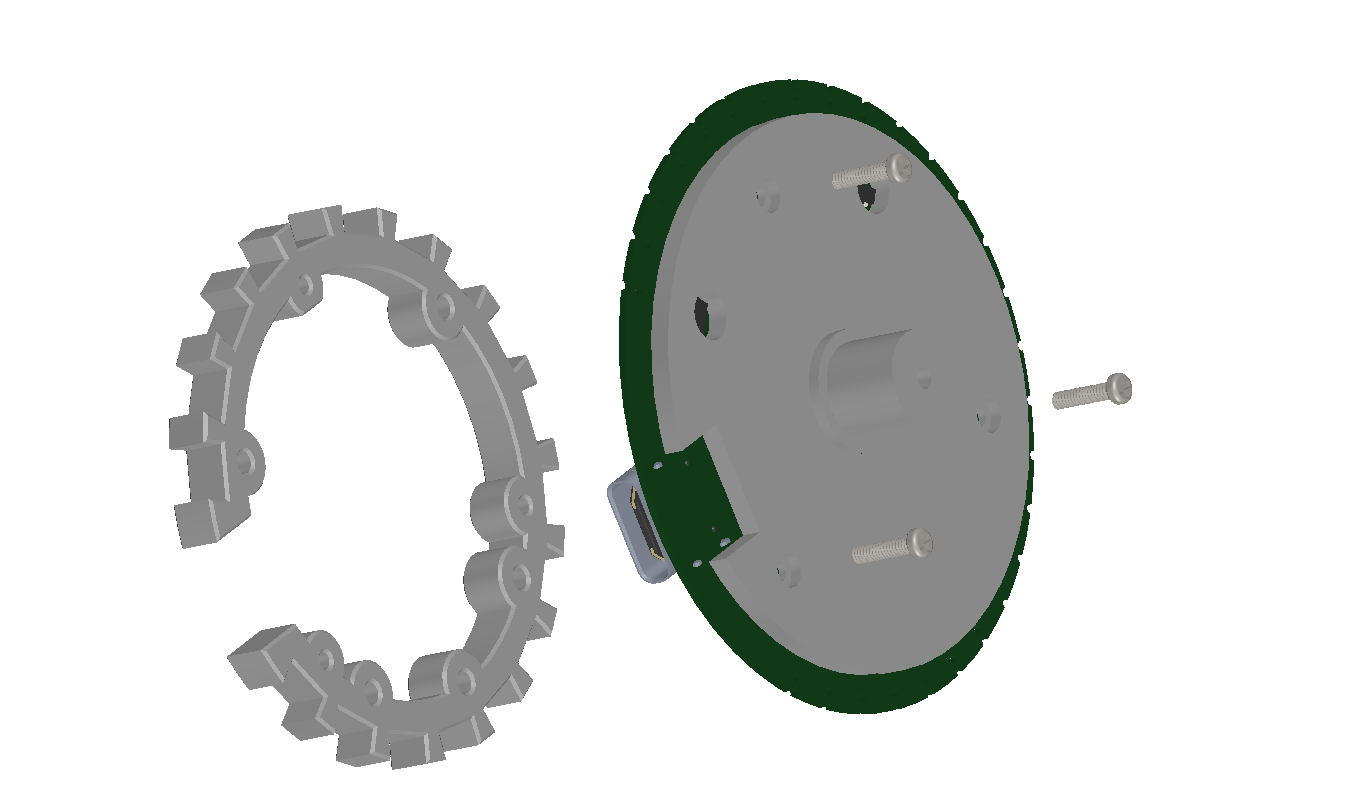

sandwich the PICO DEV M3 board between the BOARD TOP and BOARD BOTTOM parts.

Secure with 3x M1.4x6mm self-tapping screws

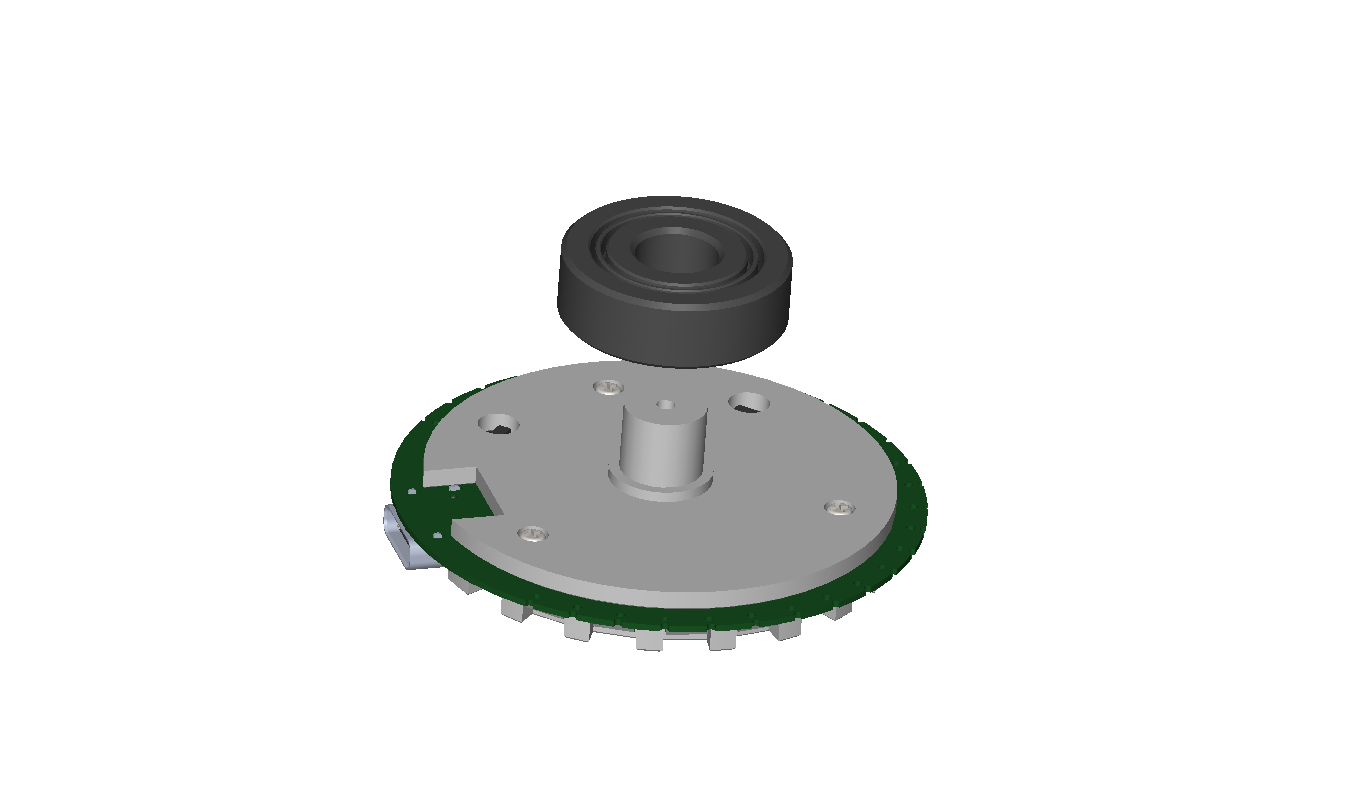

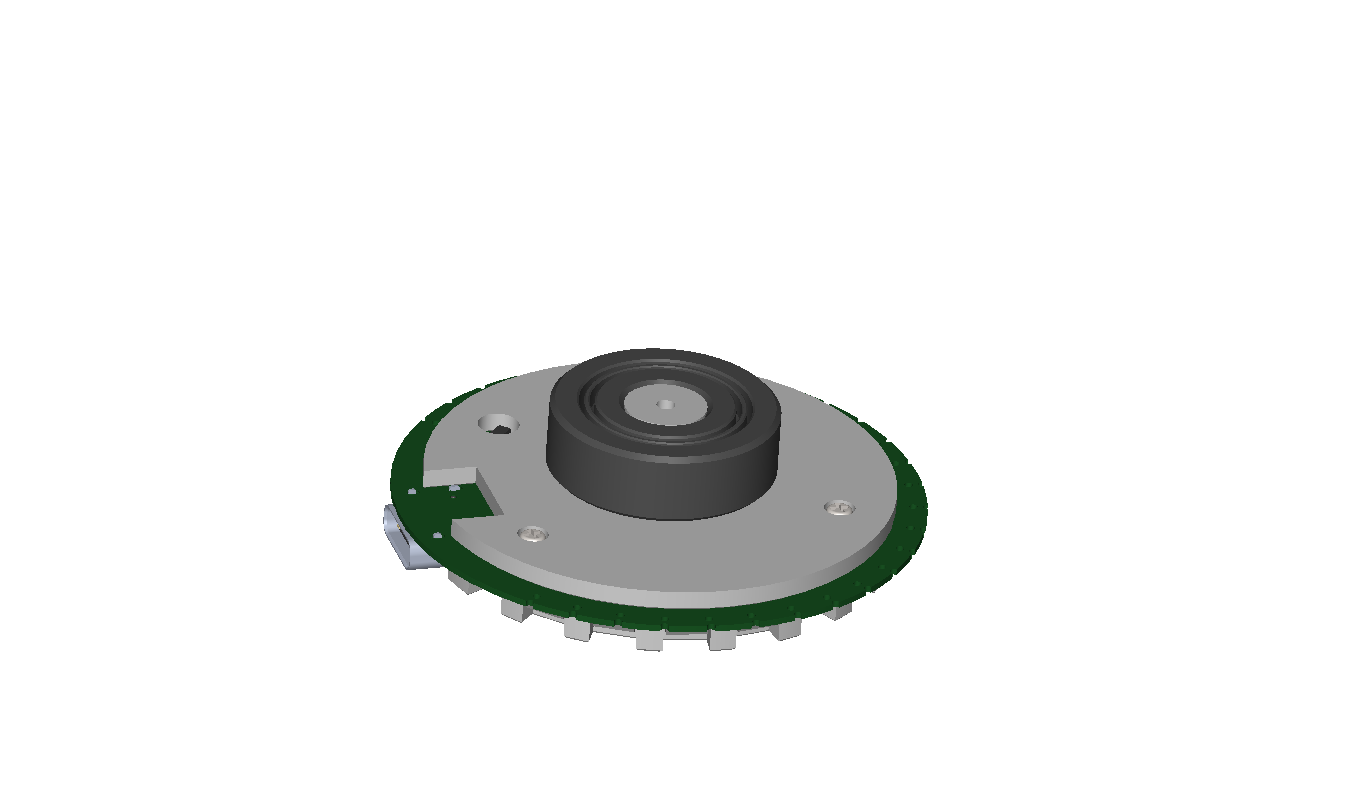

attach 608 bearing

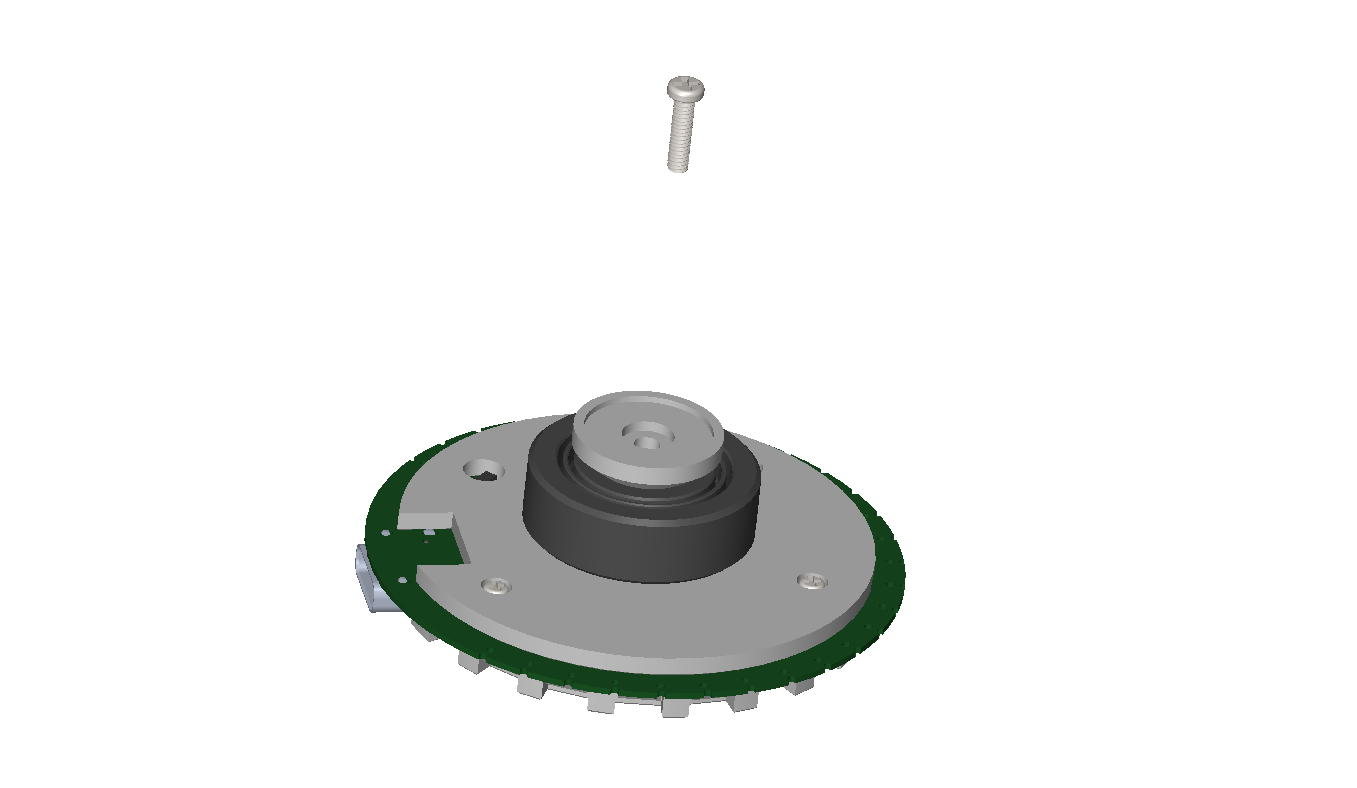

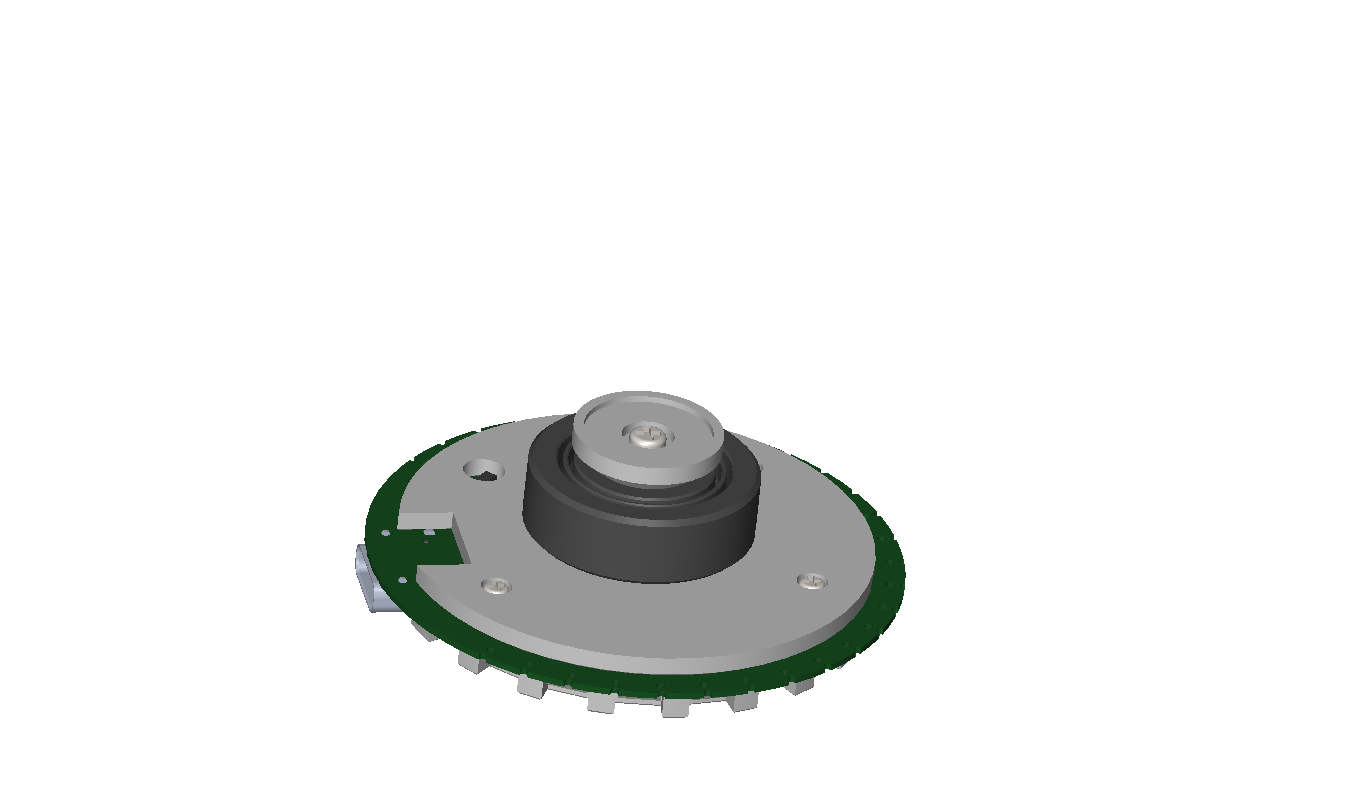

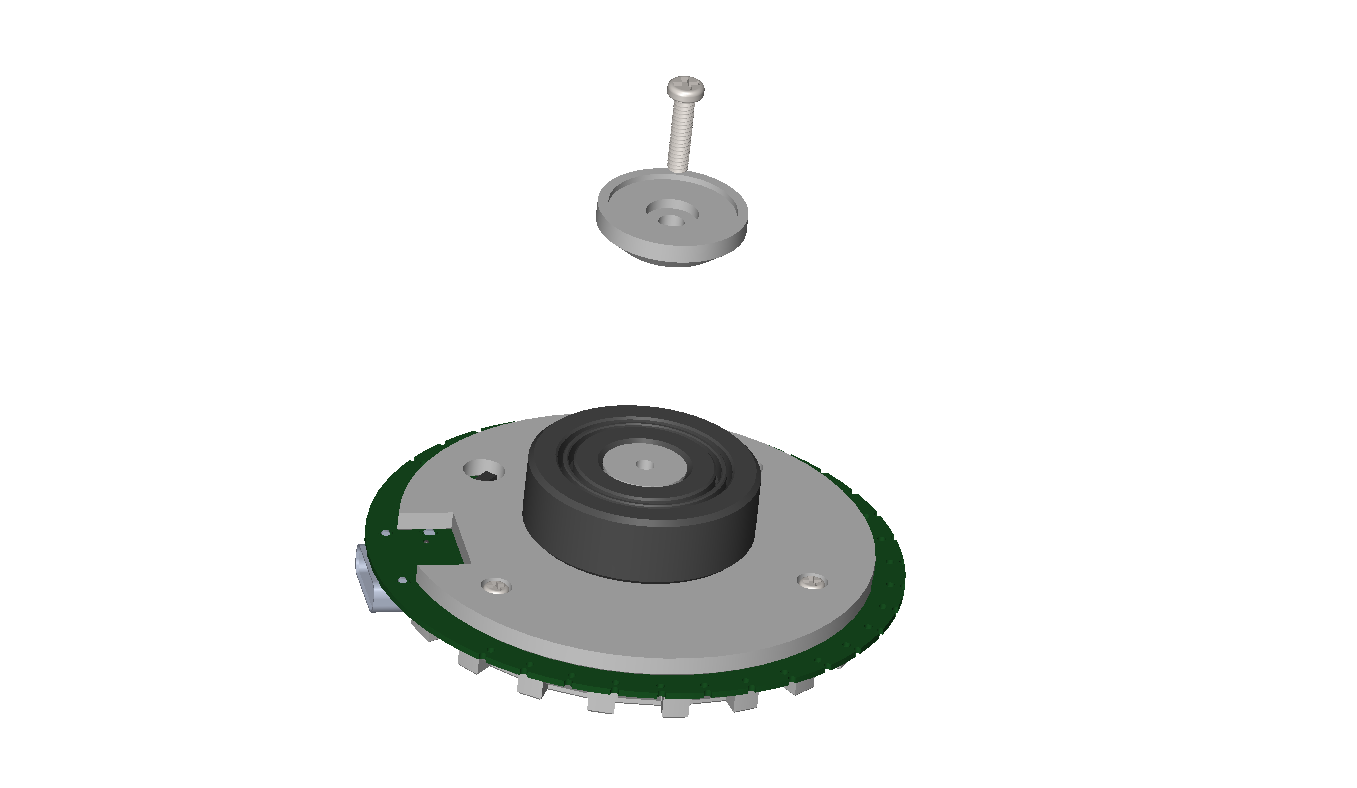

attach BEARING TOP HOLDER to BOARD TOP using M2x8mm self-tapping screws

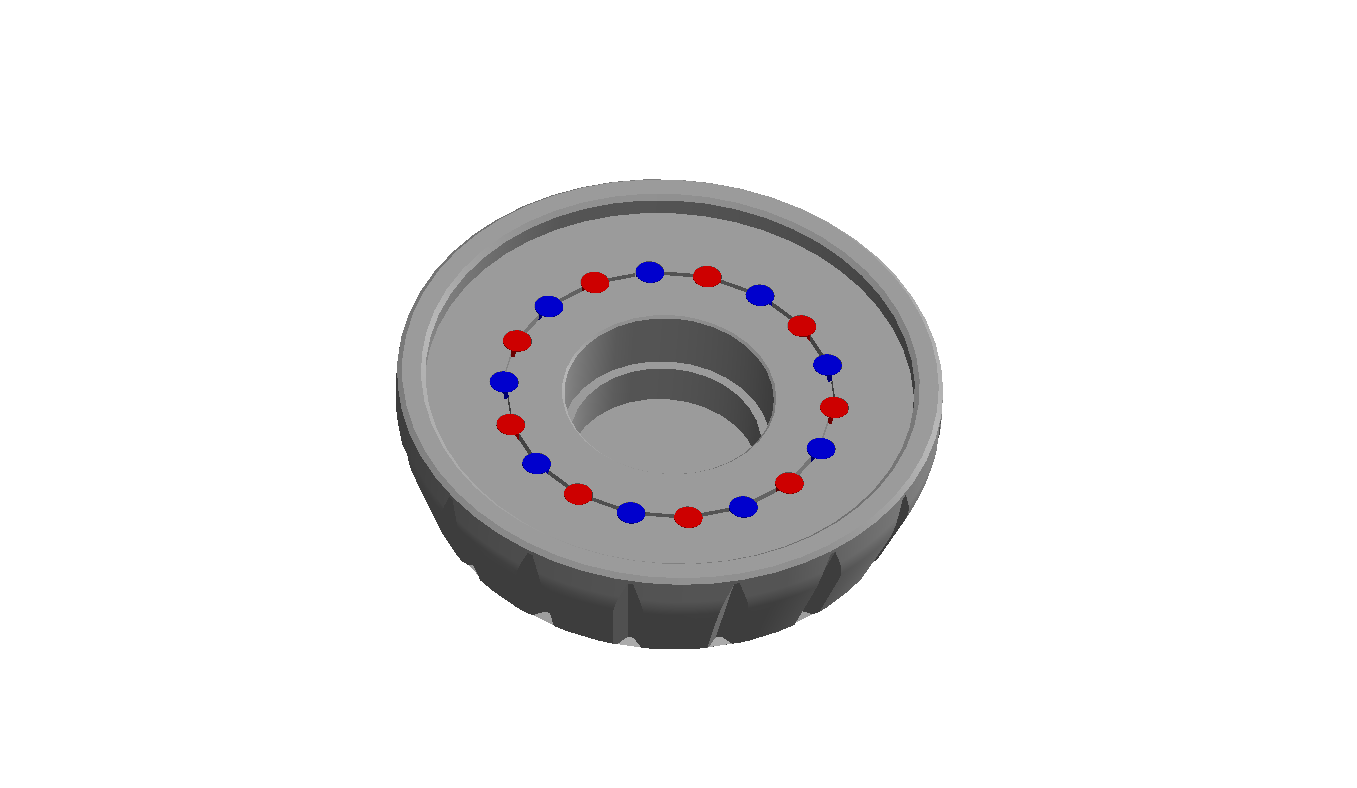

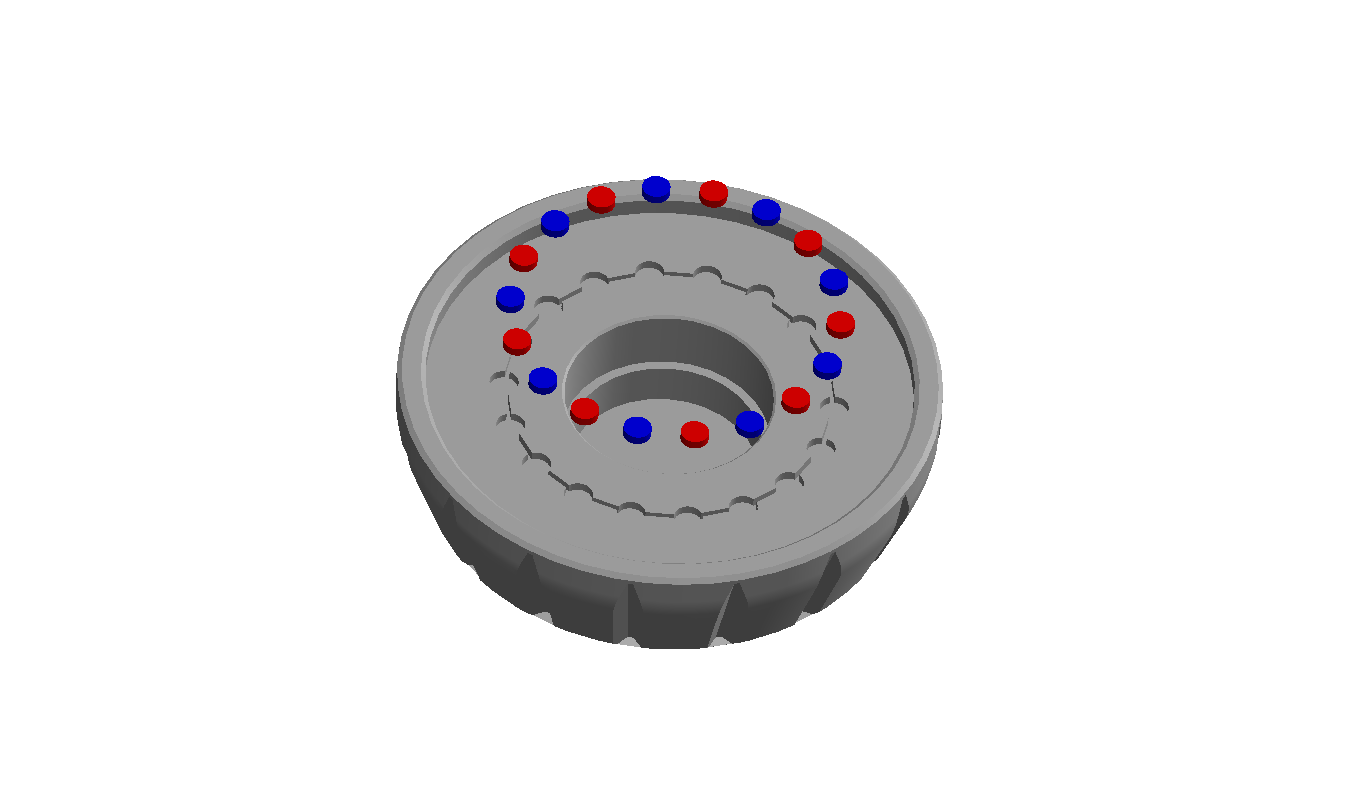

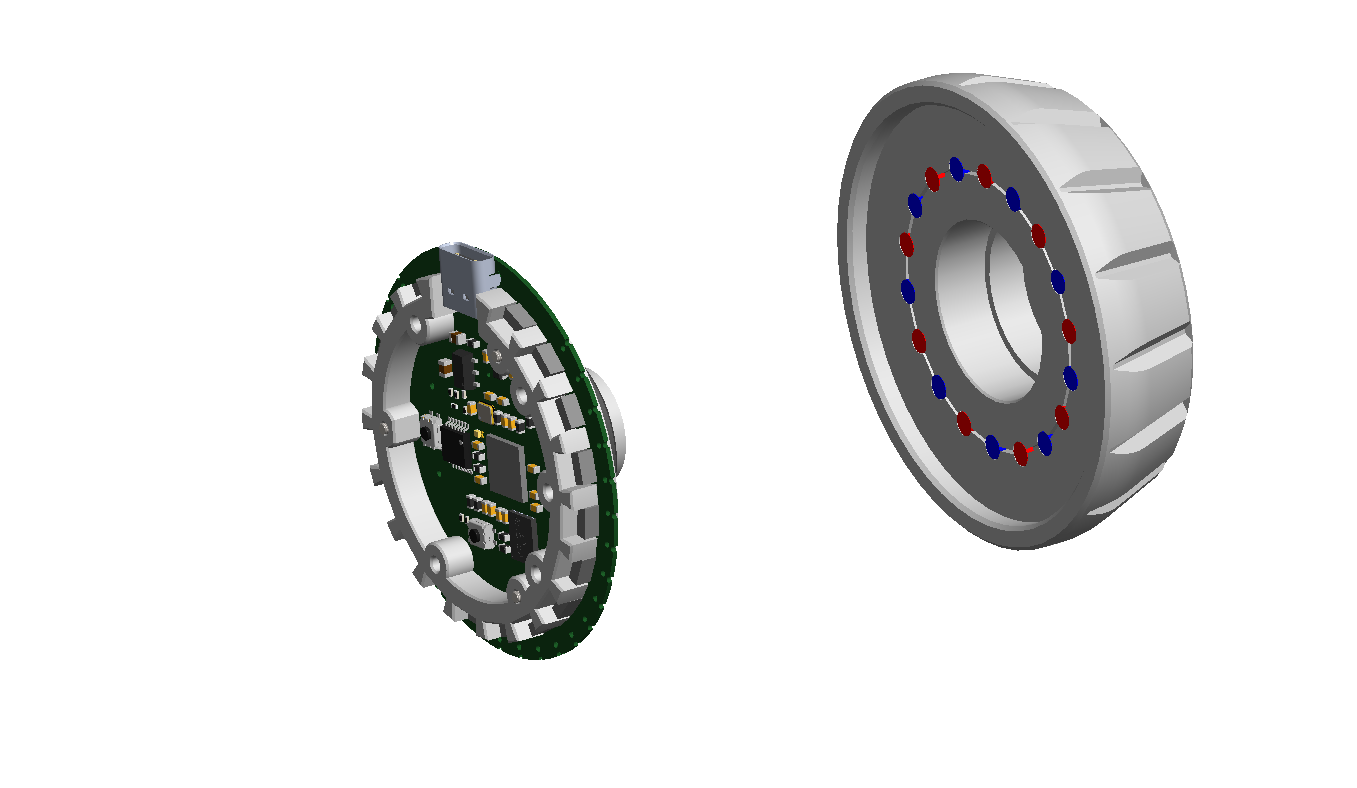

install 18x 3x1mm neodymium magnets to the KNOB in an alternating pole configuration (press fit or glue)

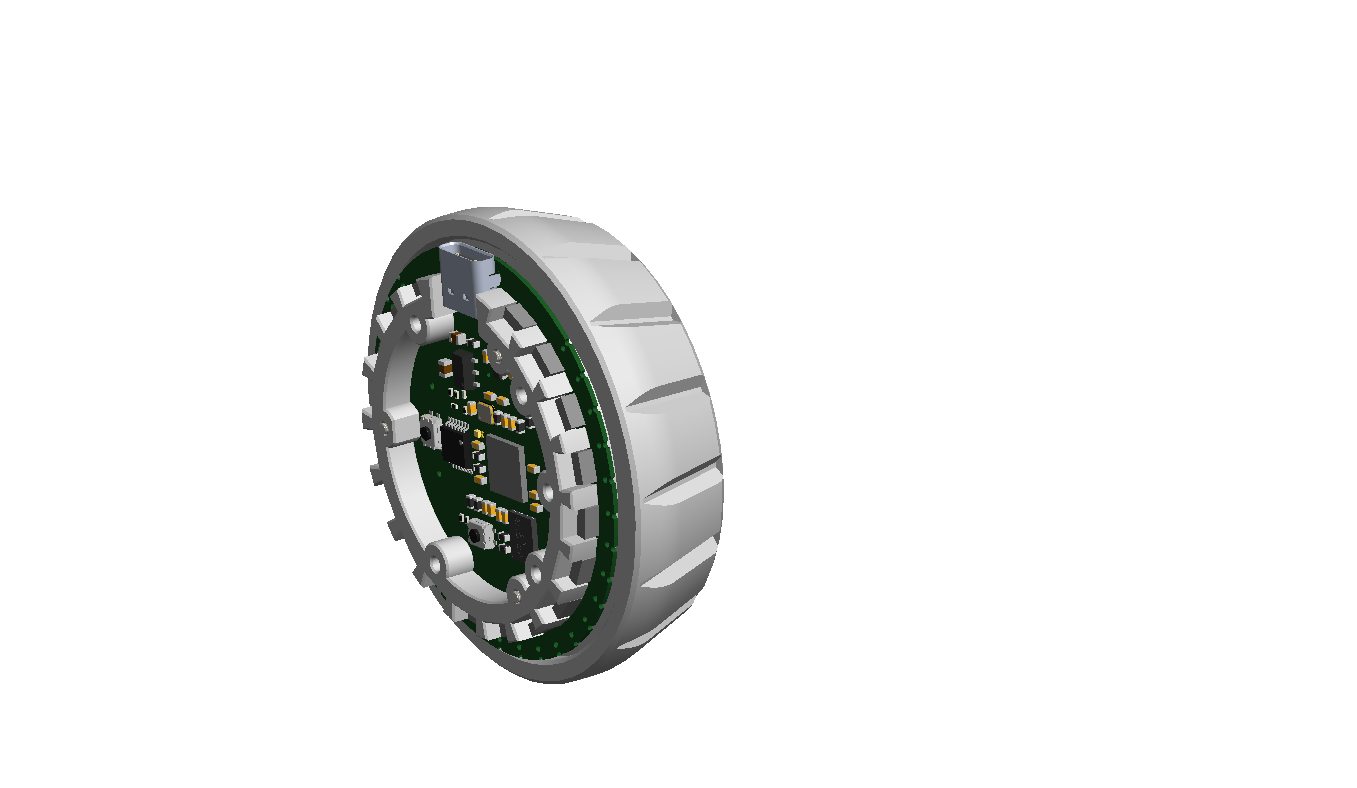

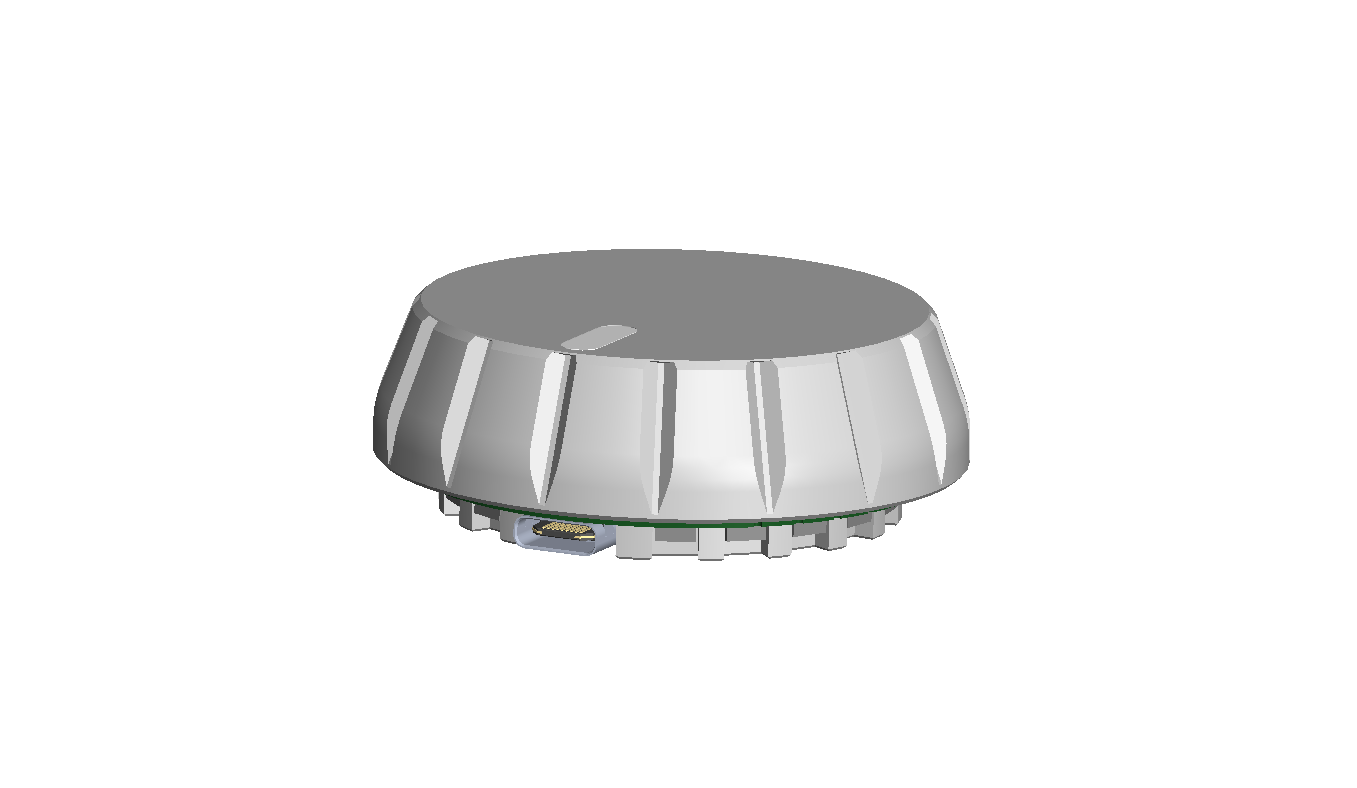

attach KNOB

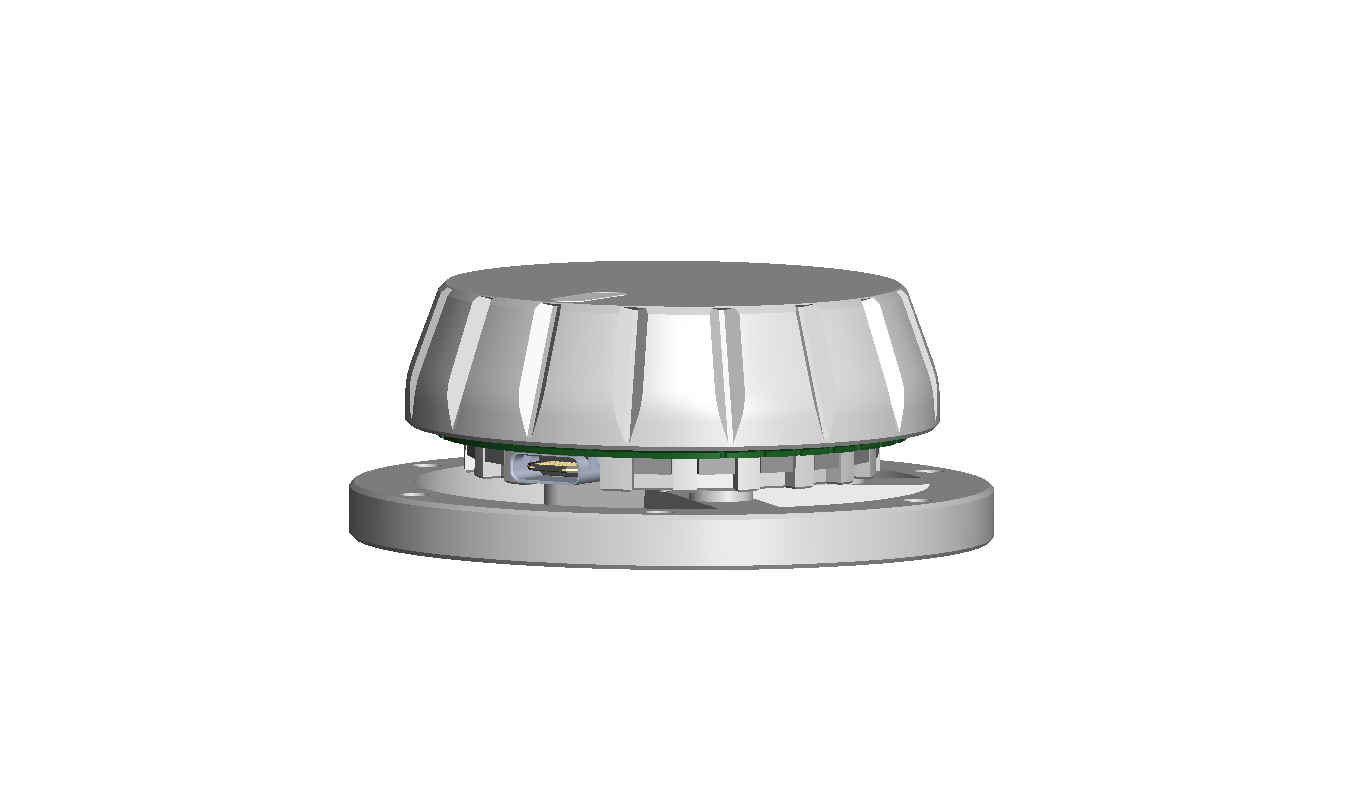

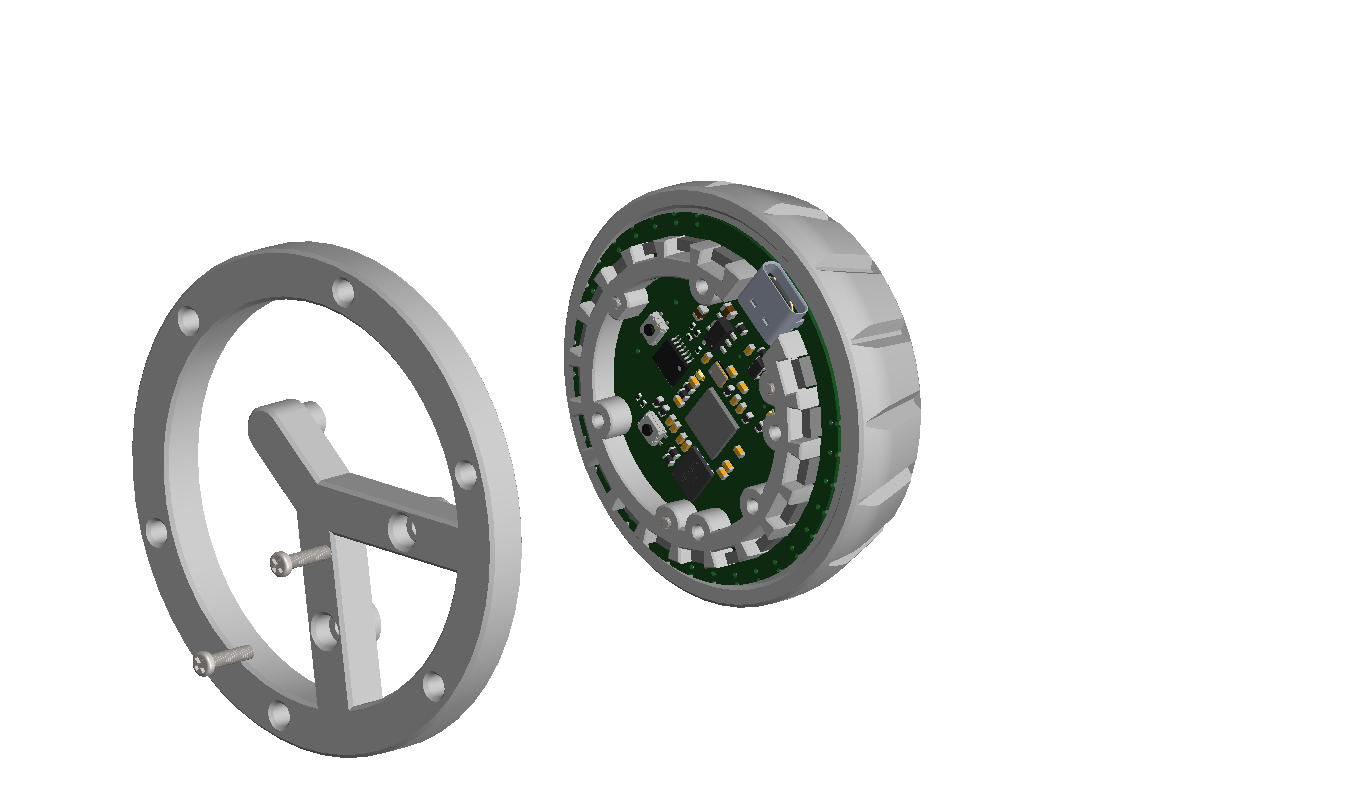

installing the mounting base is optional, and it may not be needed for your specific application.

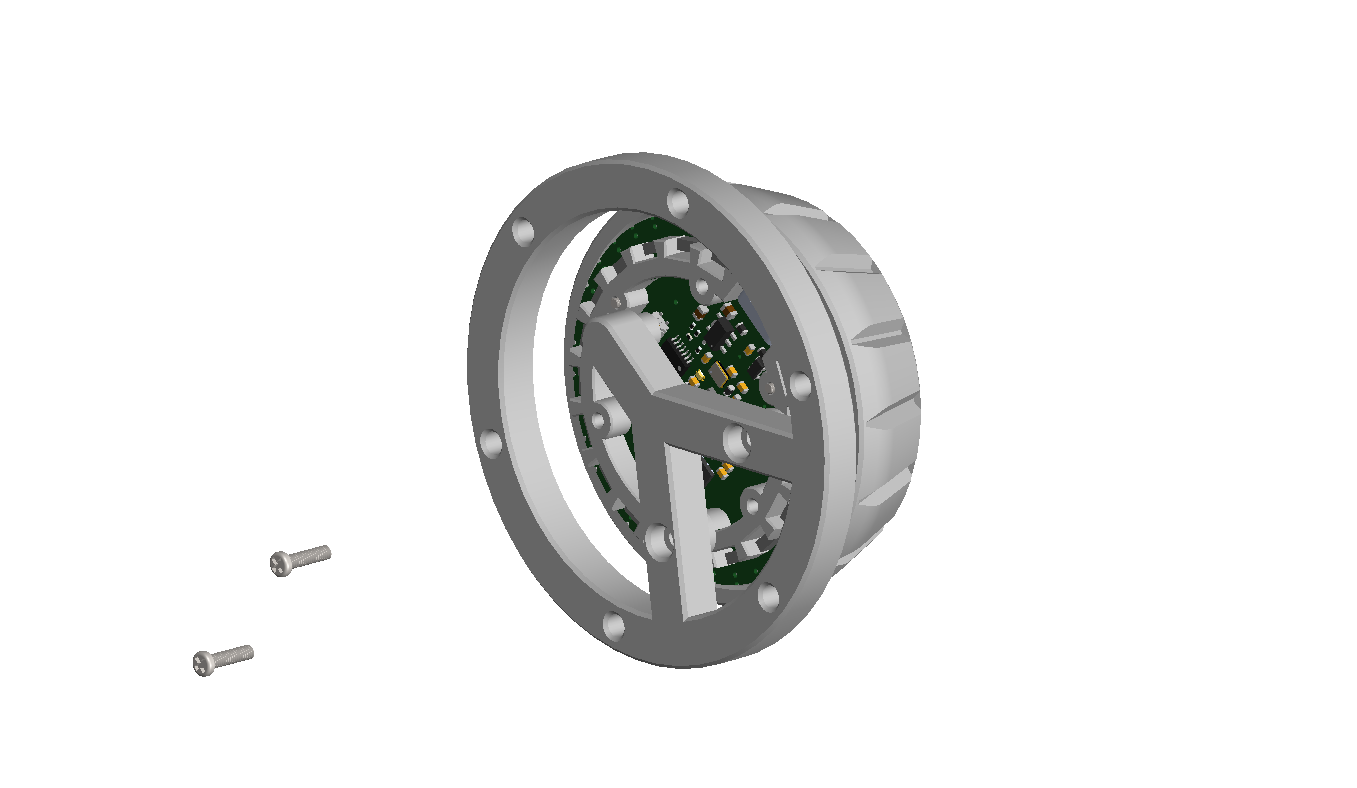

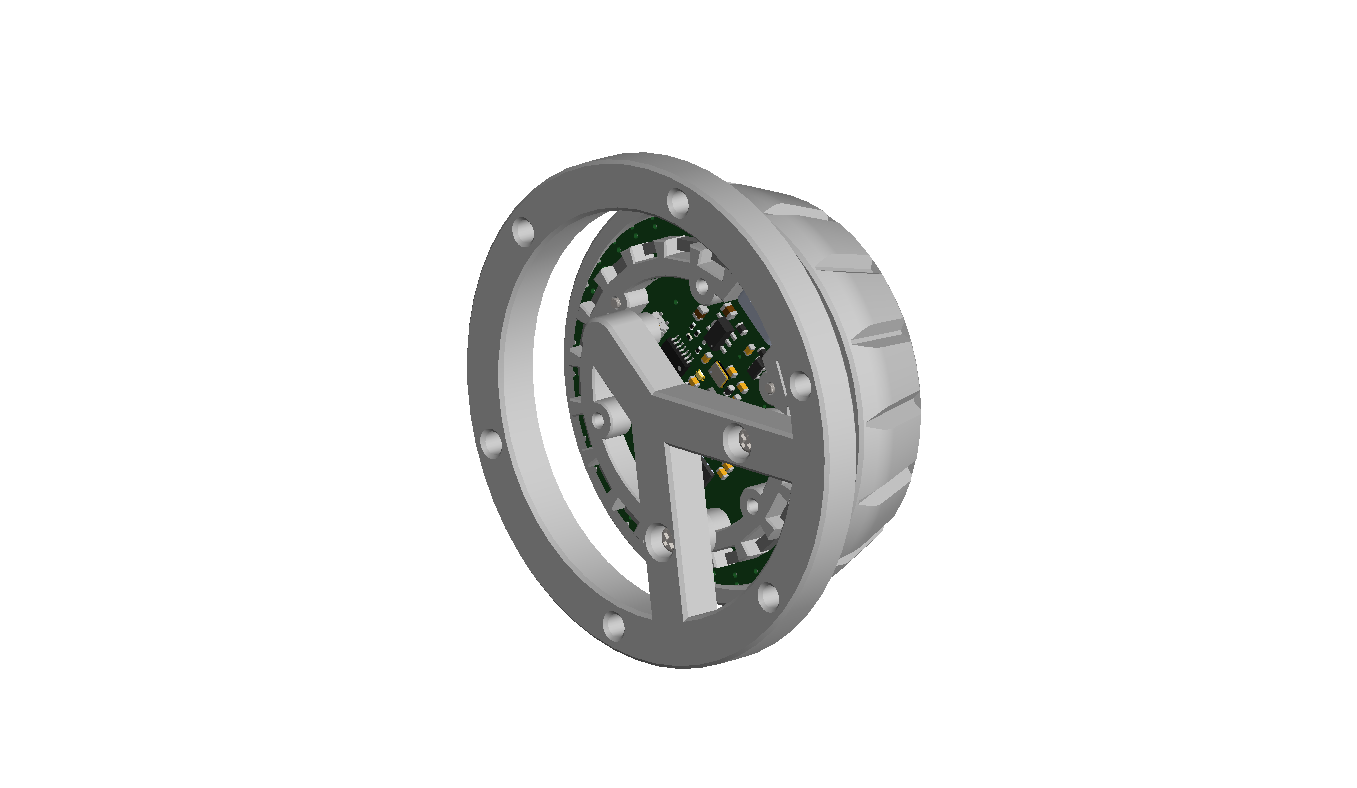

secure the base to the encoder using 2x M2x8mm self-tapping screws.

Downloads:

PICO DEV M3 3D files

Hardware

• PICO DEV M3 Board

• 1x 608 Ball Bearing

• 3x M1.4x6mm self-tapping screws

• 2x M2x8mm self-tapping screws (optional)

• (18x) 3x1mm Neodymium magnets.

3D Printed Parts

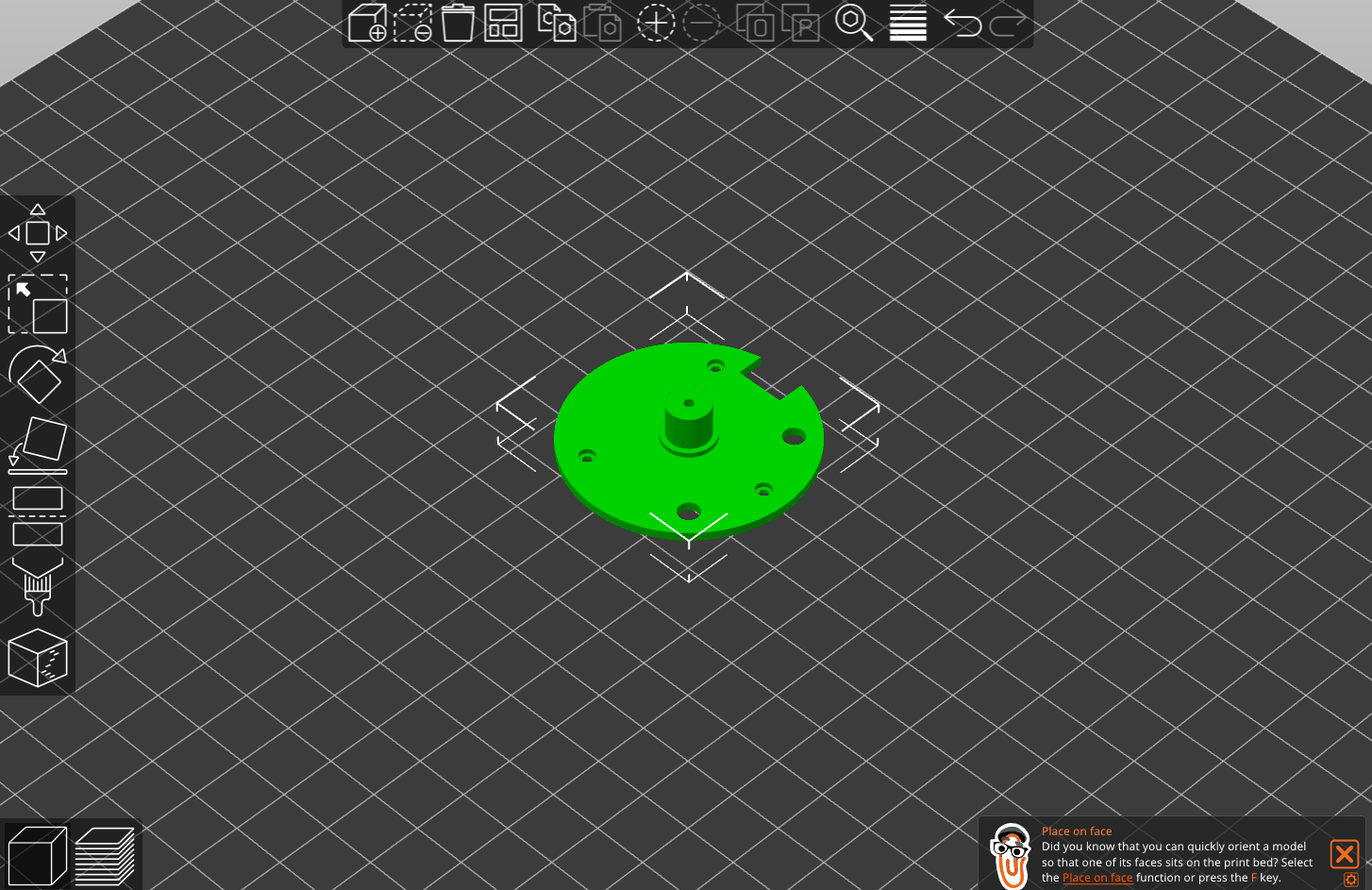

BOARD BOTTOM

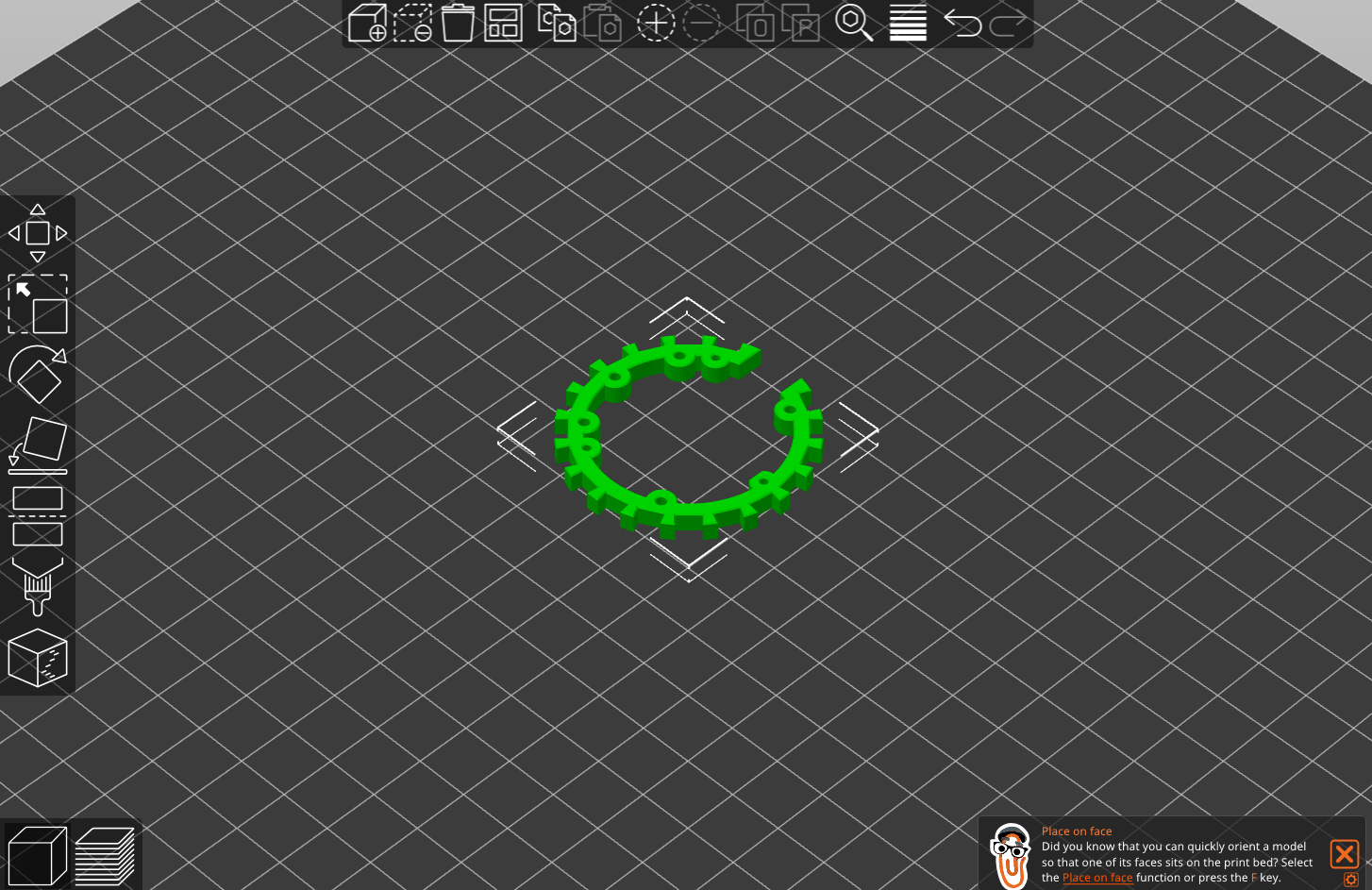

BOARD TOP

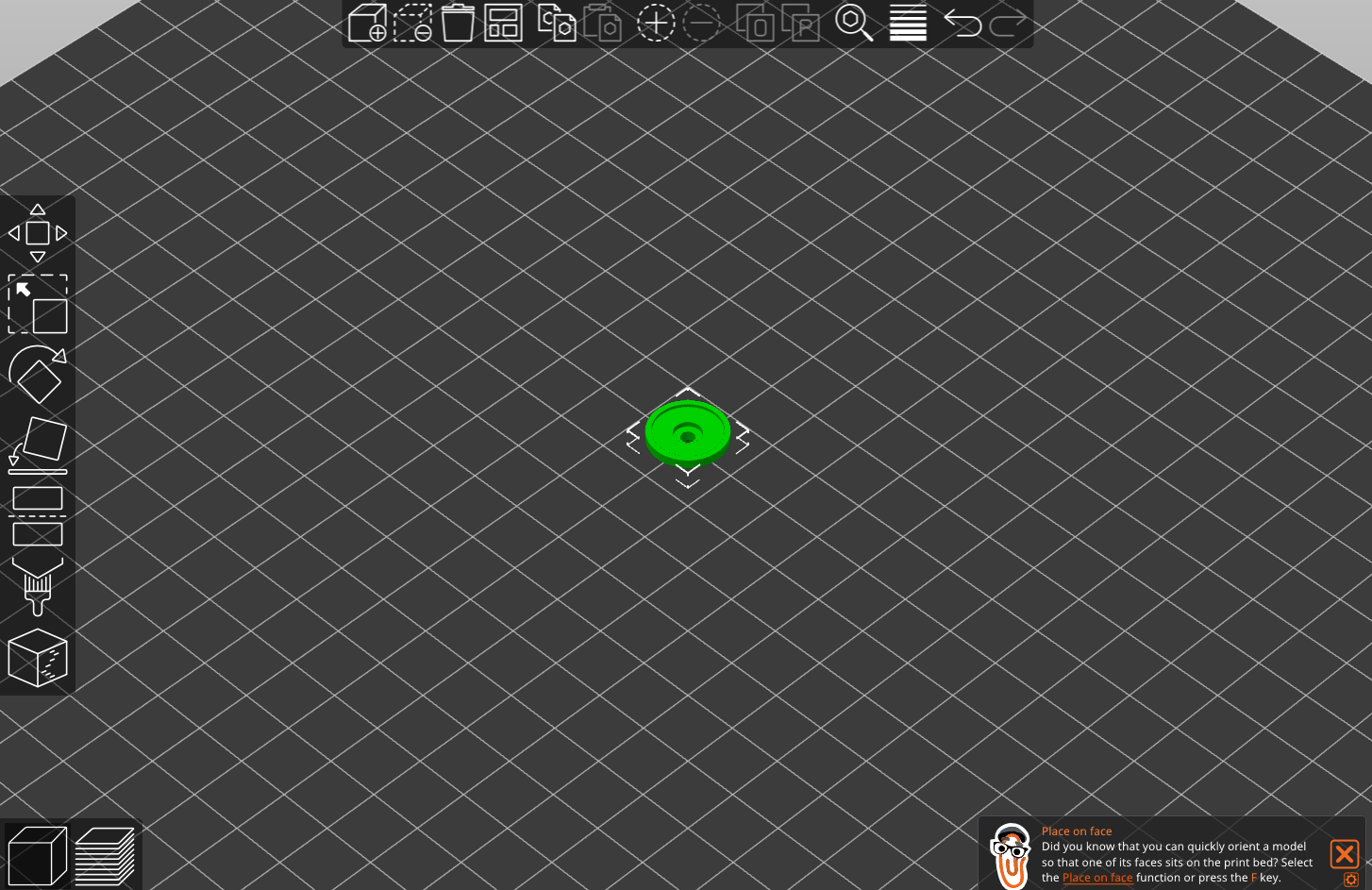

BEARING TOP HOLDER

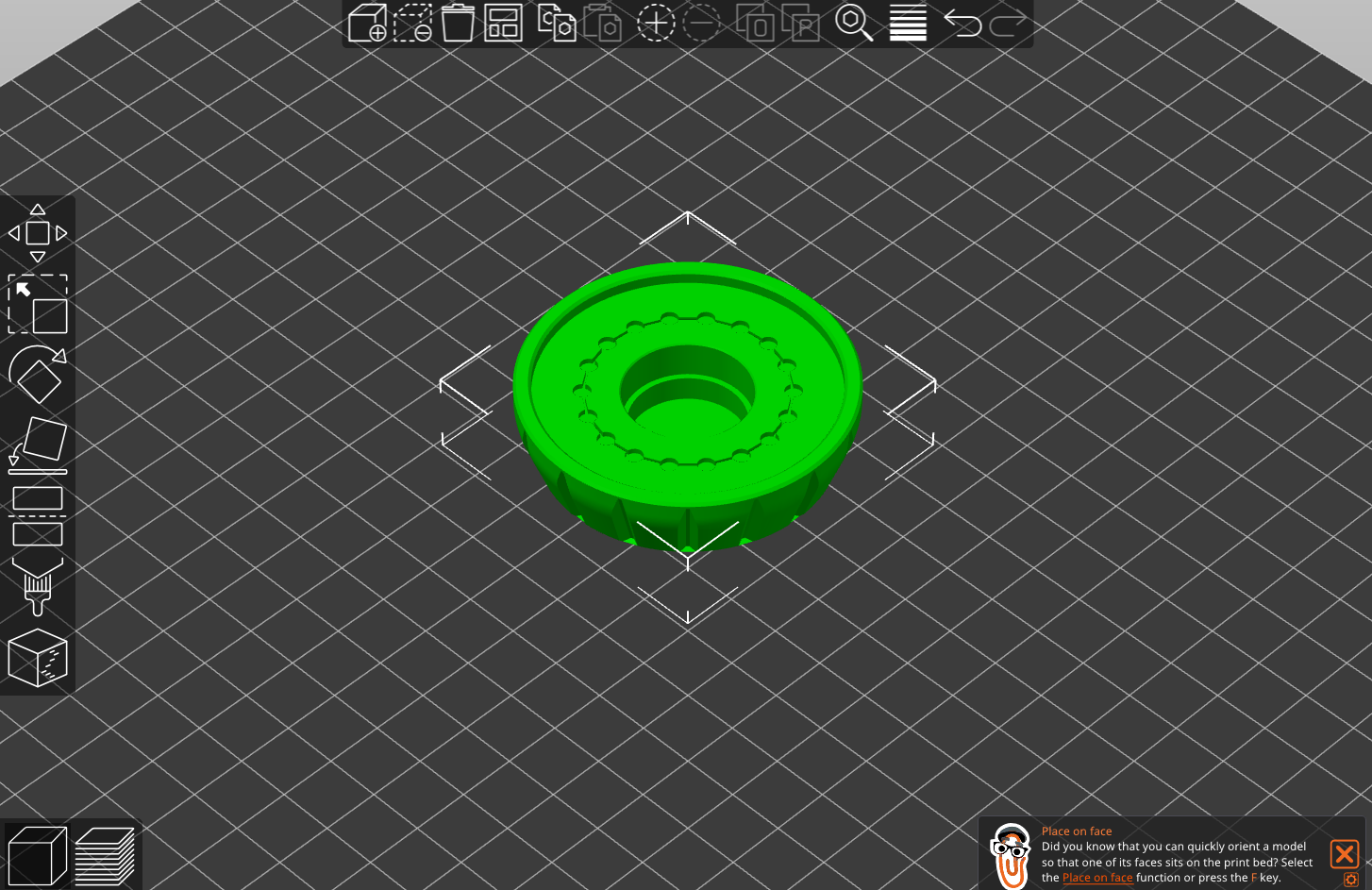

KNOB

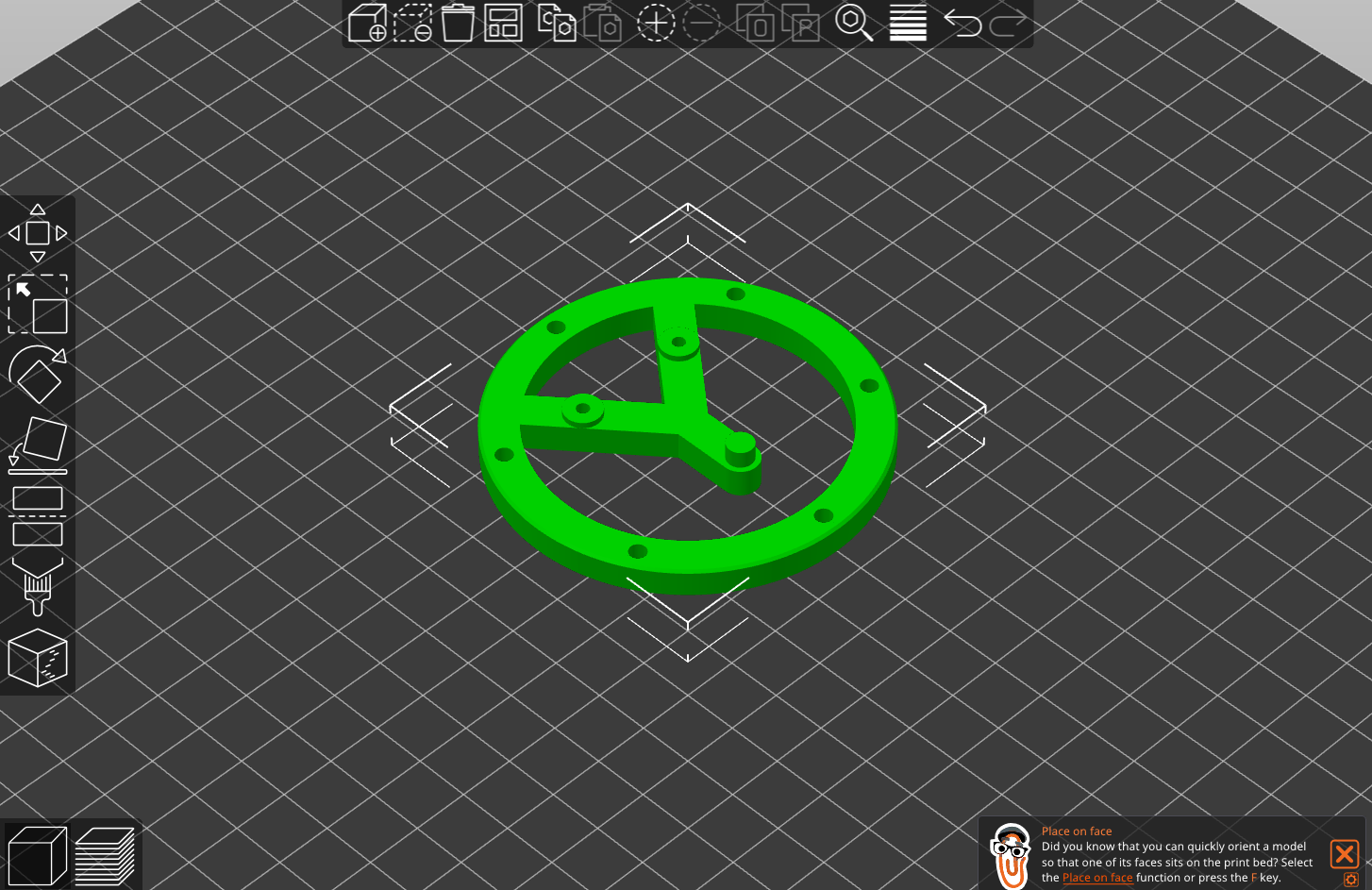

MOUNTING BASE (OPTIONAL)

After acquiring the required hardware and 3D printing the required parts, scroll to the slide at the top of the page to begin assembling your encoder.

See Code and Details on GitHub

Learn more about this project >
