The Pico Dev M3 is a development board based on Raspberry Pi's RP2040 microcontroller chip, the board is also a high-resolution magnetic rotary encoder when paired with a few 3D printed parts, which makes this the perfect board for applications and projects that can benefit from having a rotary encoder, a good example is making macro pads, and other similar secondary controllers.

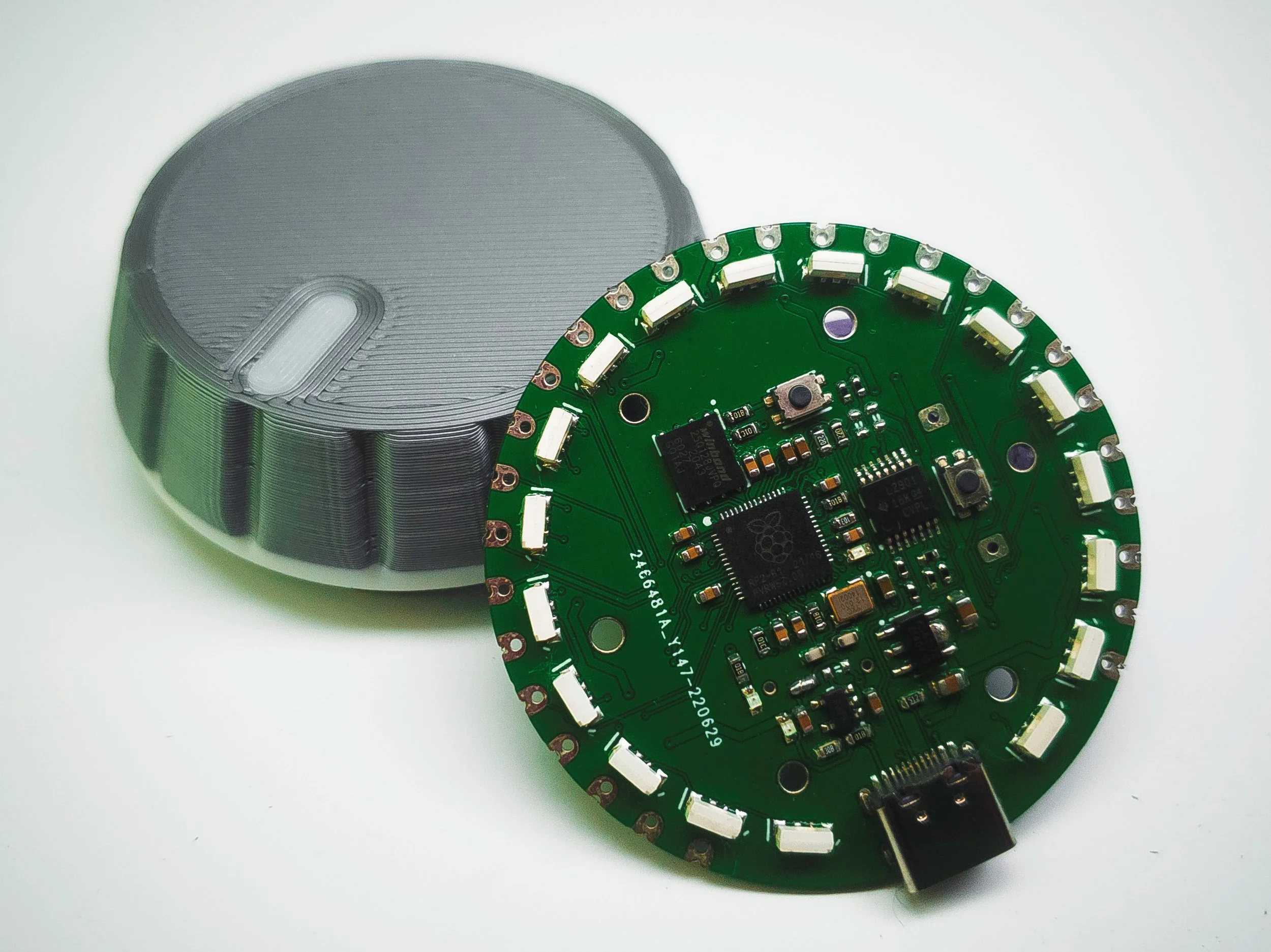

Board Features
RP2040 Datasheet: https://datasheets.raspberrypi.org/rp2040/rp2040_datasheet.pdf

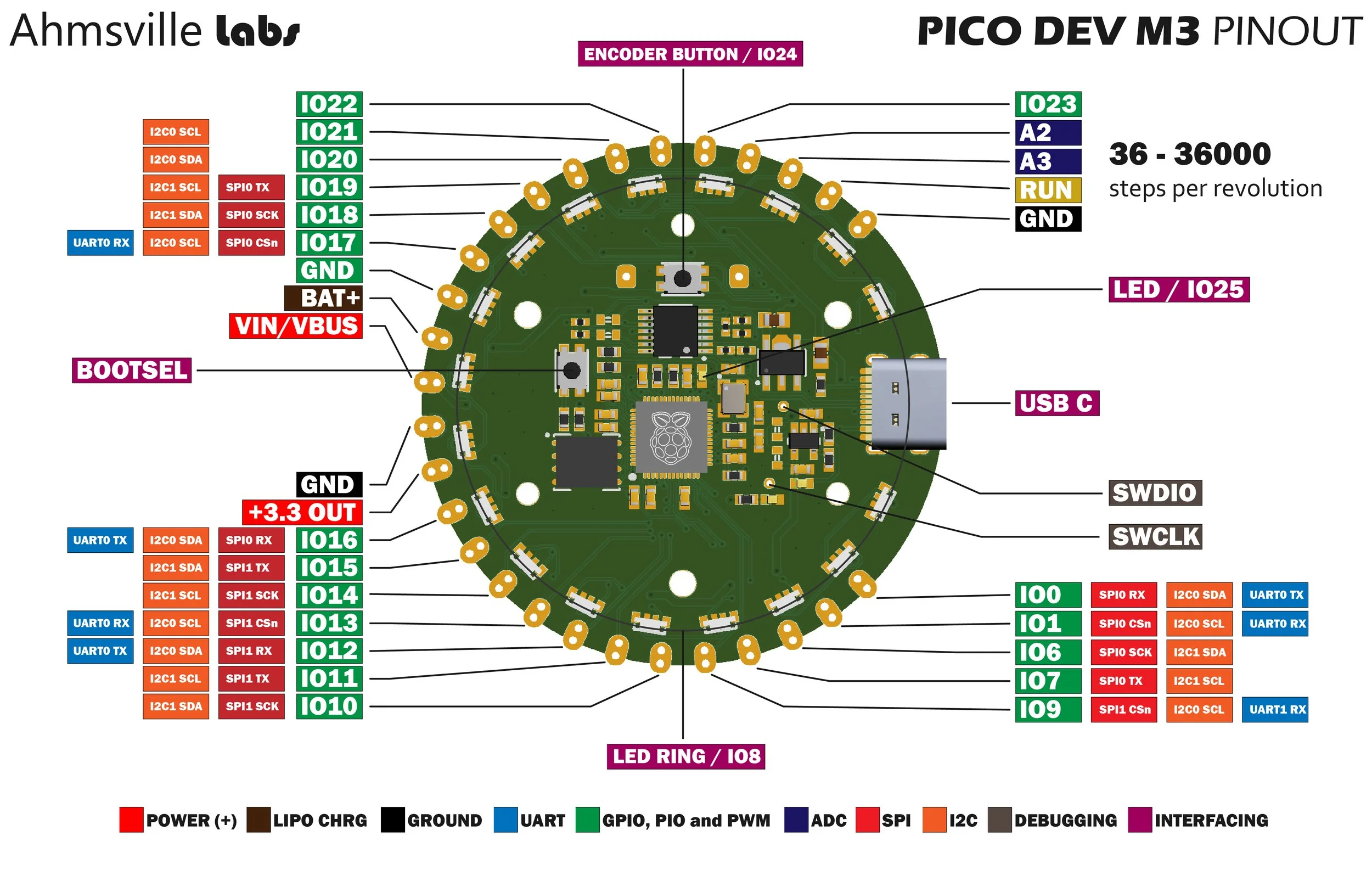

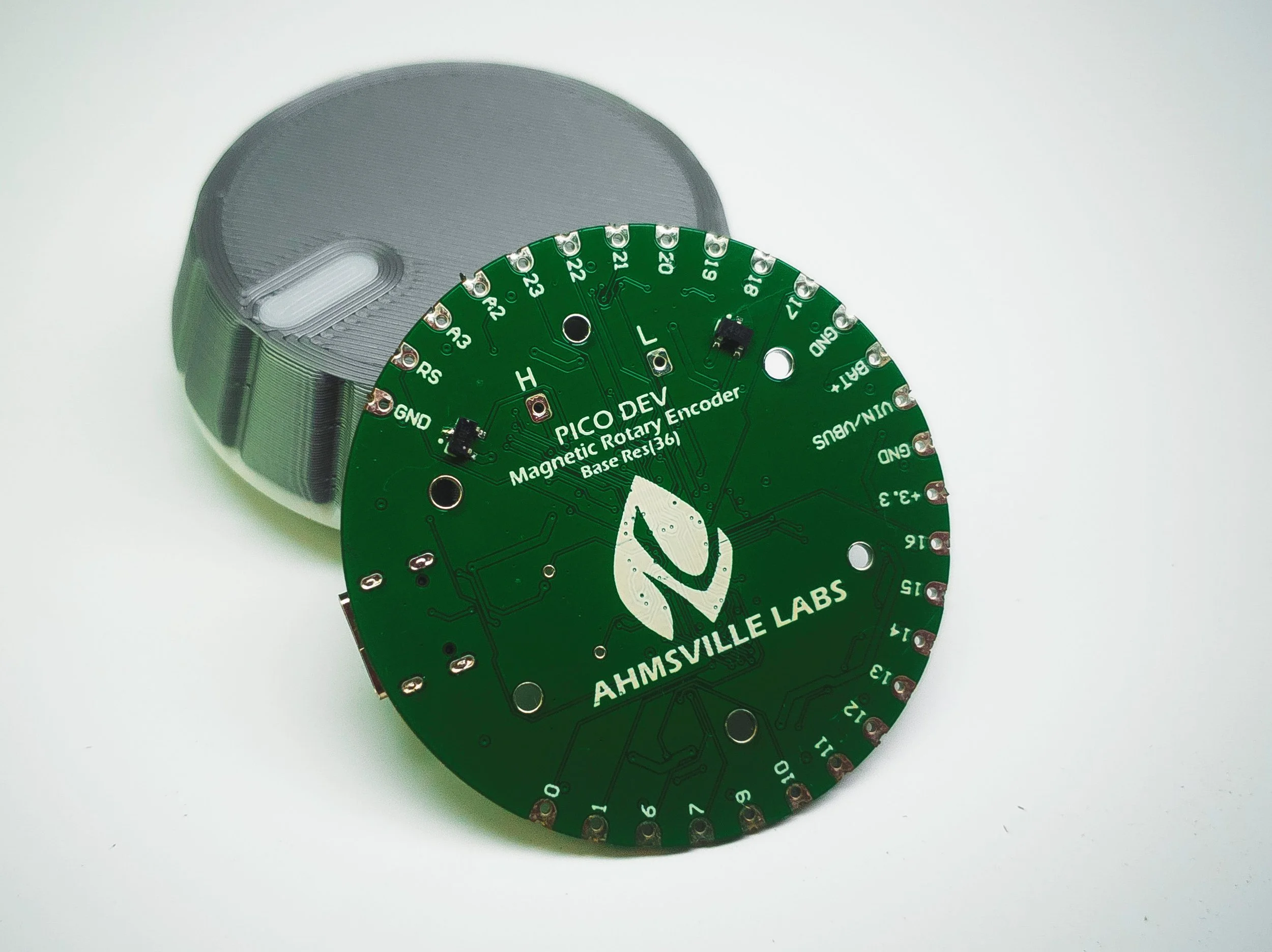

Pinout
RP2040 chip, Dual-core Arm Cortex-M0+ processor at 133 MHz
264kB on-chip SRAM
128Mb on-board QSPI flash
19 multifunction GPIO pins, with 2 analog inputs
2 UARTs
2 SPI controllers
2 I2C controllers
16 PWM channels
USB 1.1 controller with host and device support
8 PIO state machines
USB type C

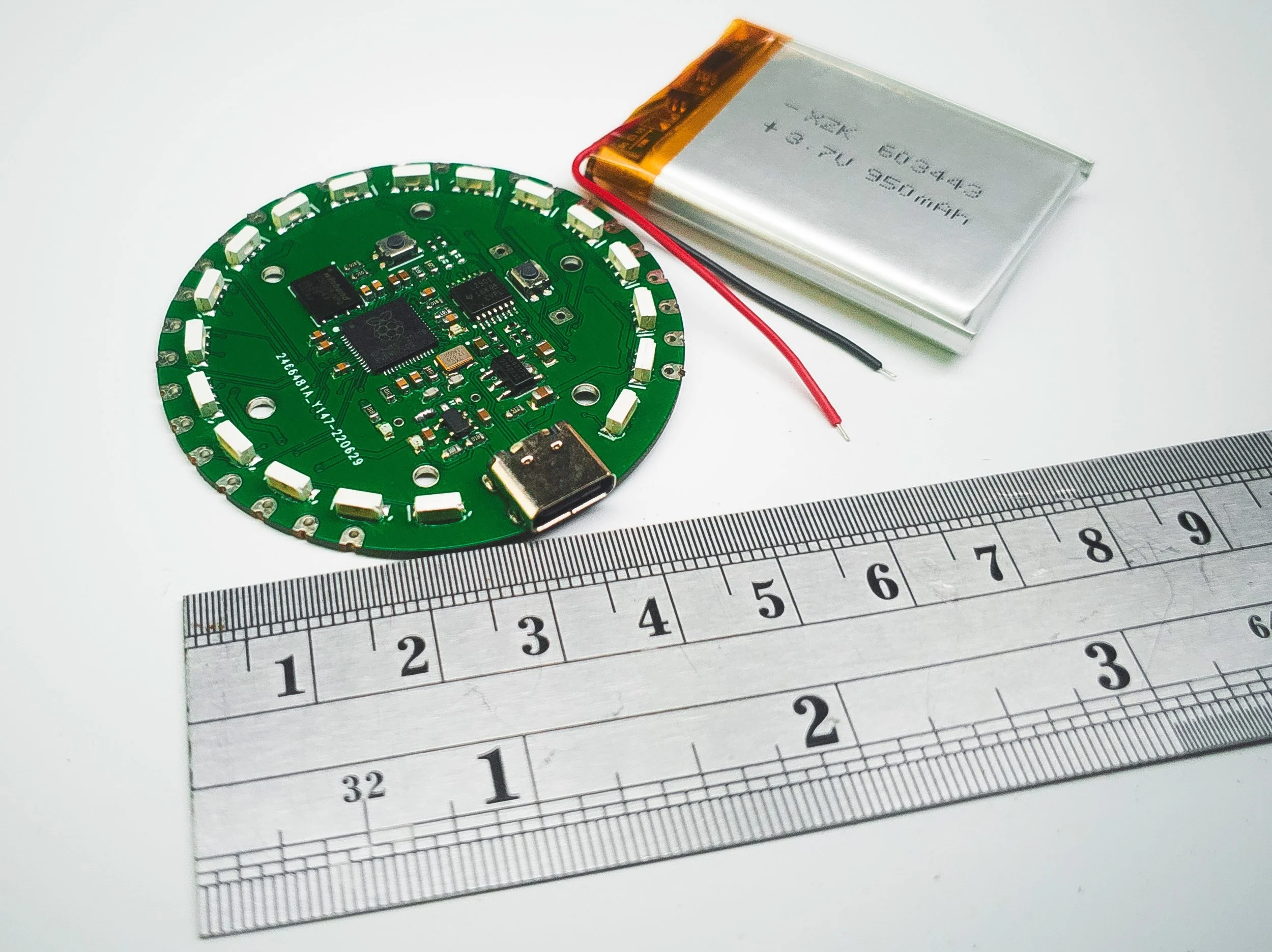

Lipo charging
onboard Button input
Addressable Led ring (18 LEDs)
Encoder Features
The onboard encoder features a base resolution of 36 steps, extending up to 36000 steps per revolution.

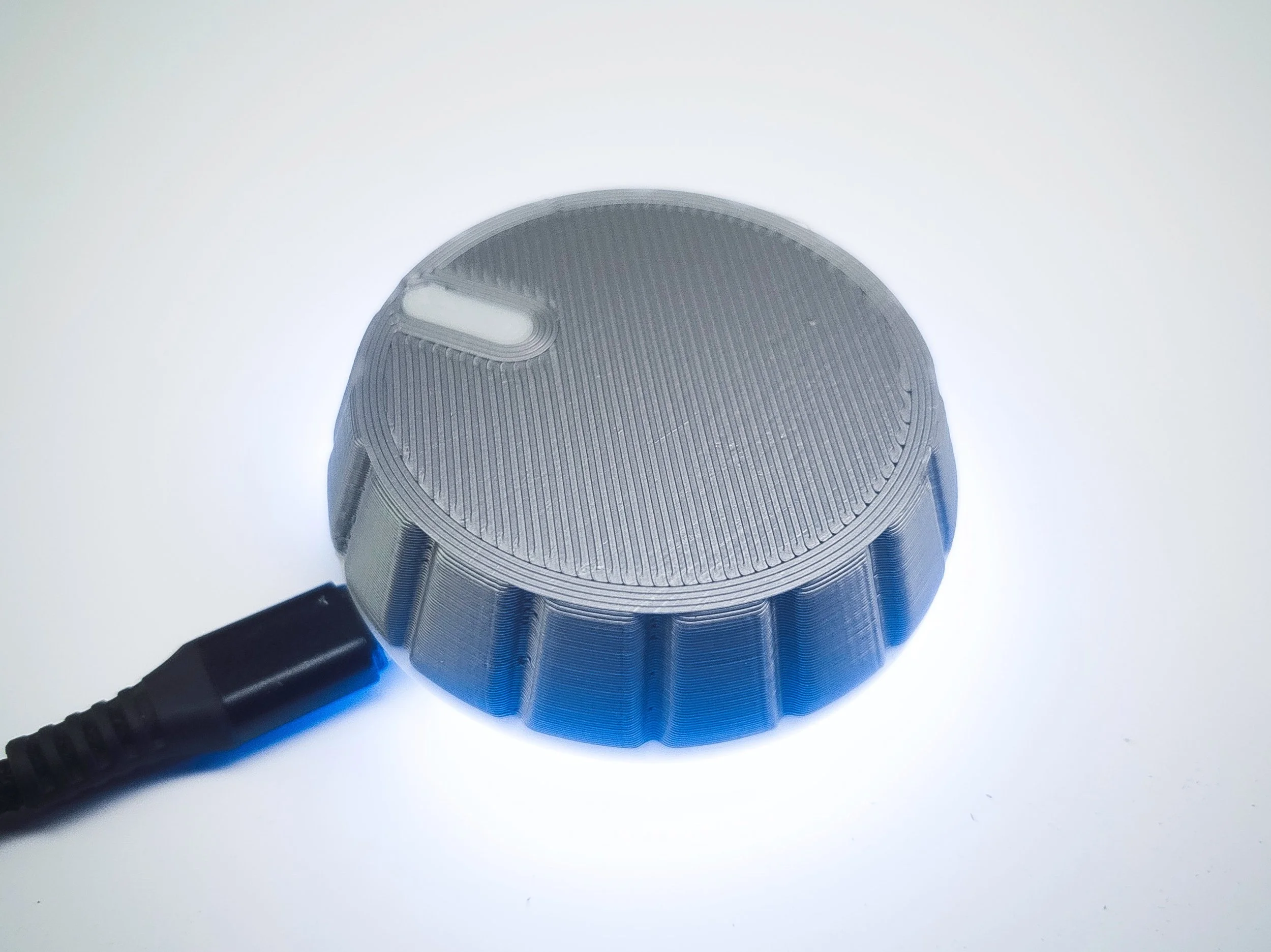

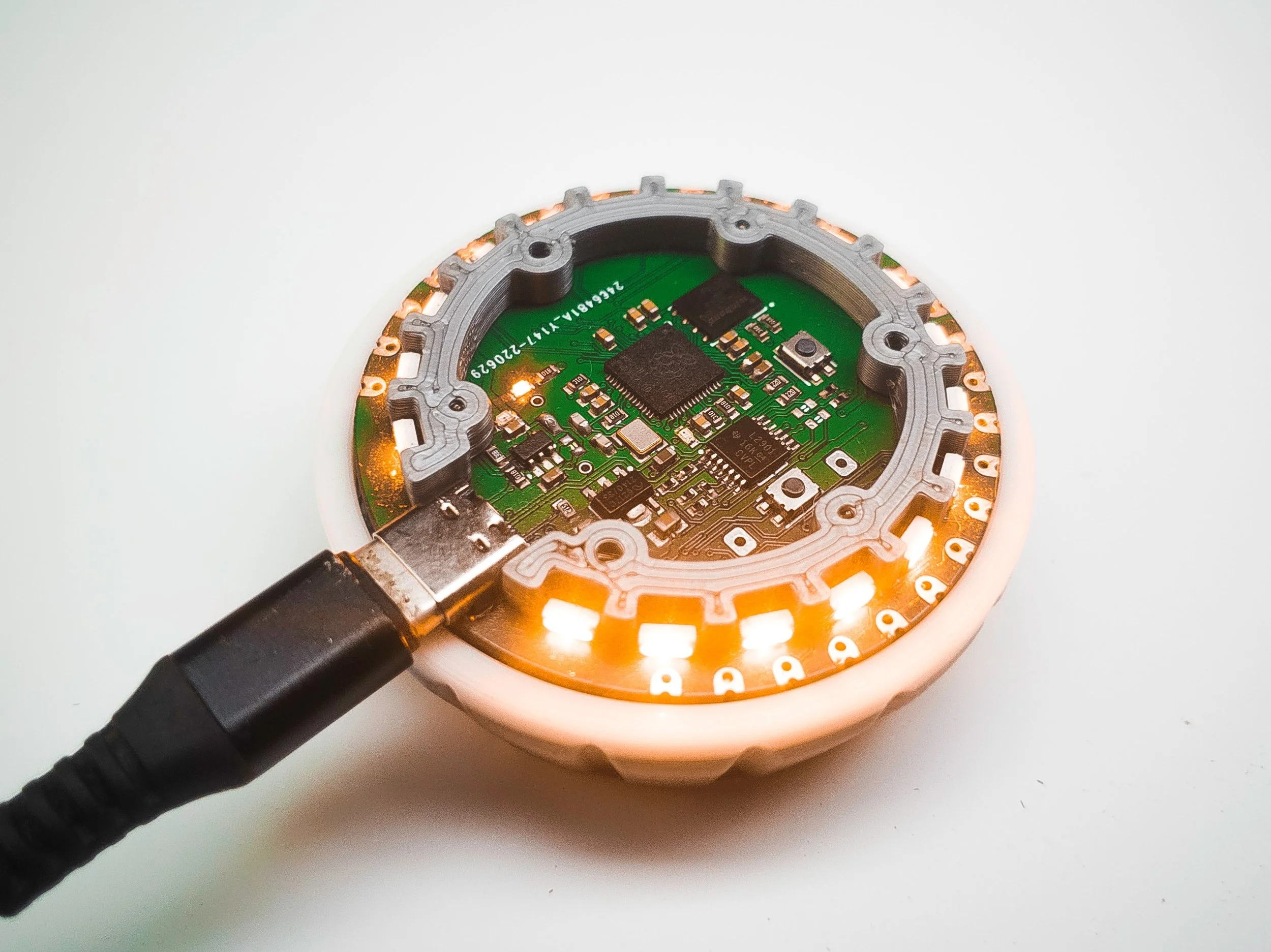

There’s also a ring of 18 individually addressable LEDs on board.

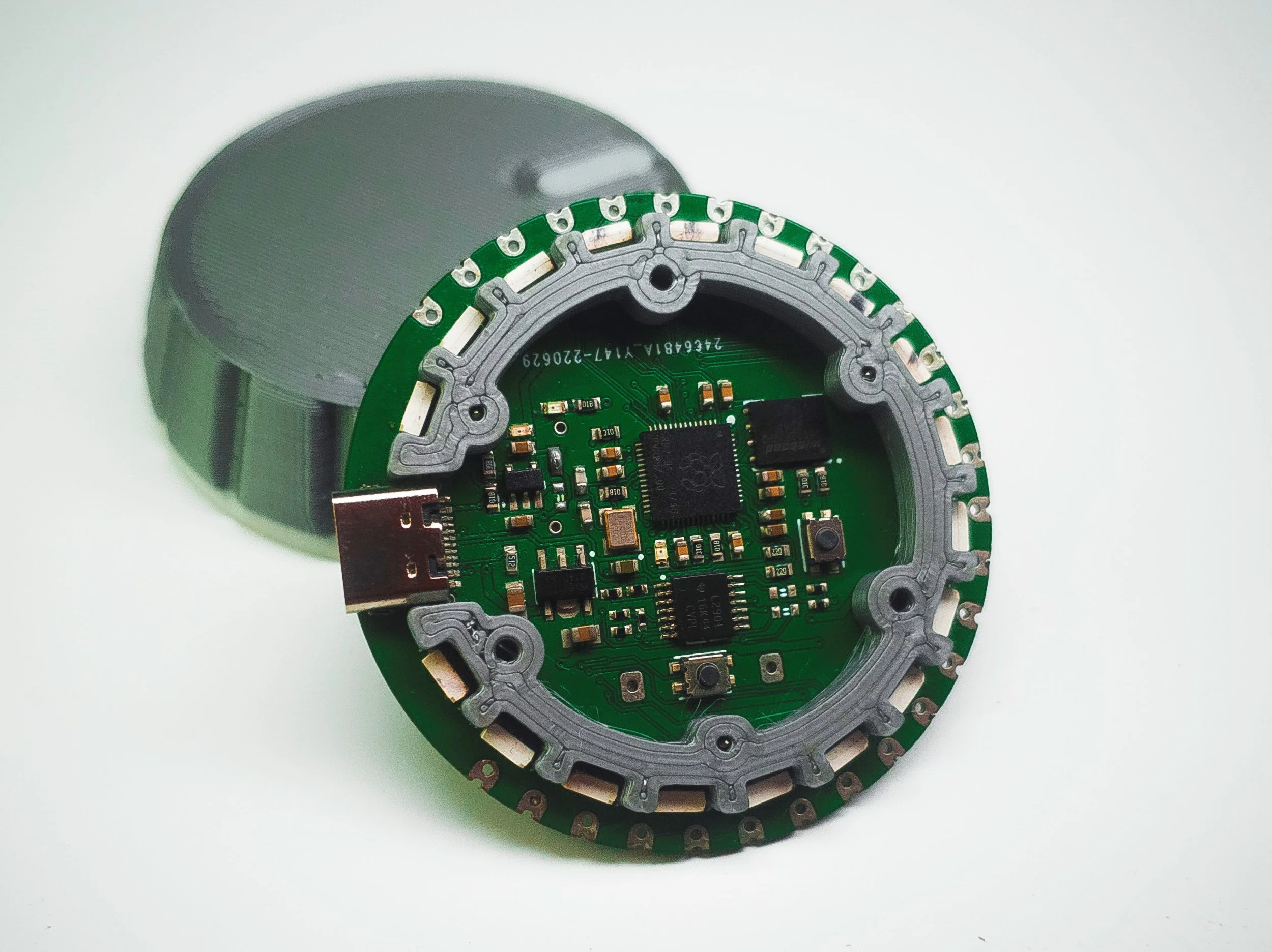

Features a ball bearing which gives the encoder a significantly smoother feel compared to traditional rotary encoders.

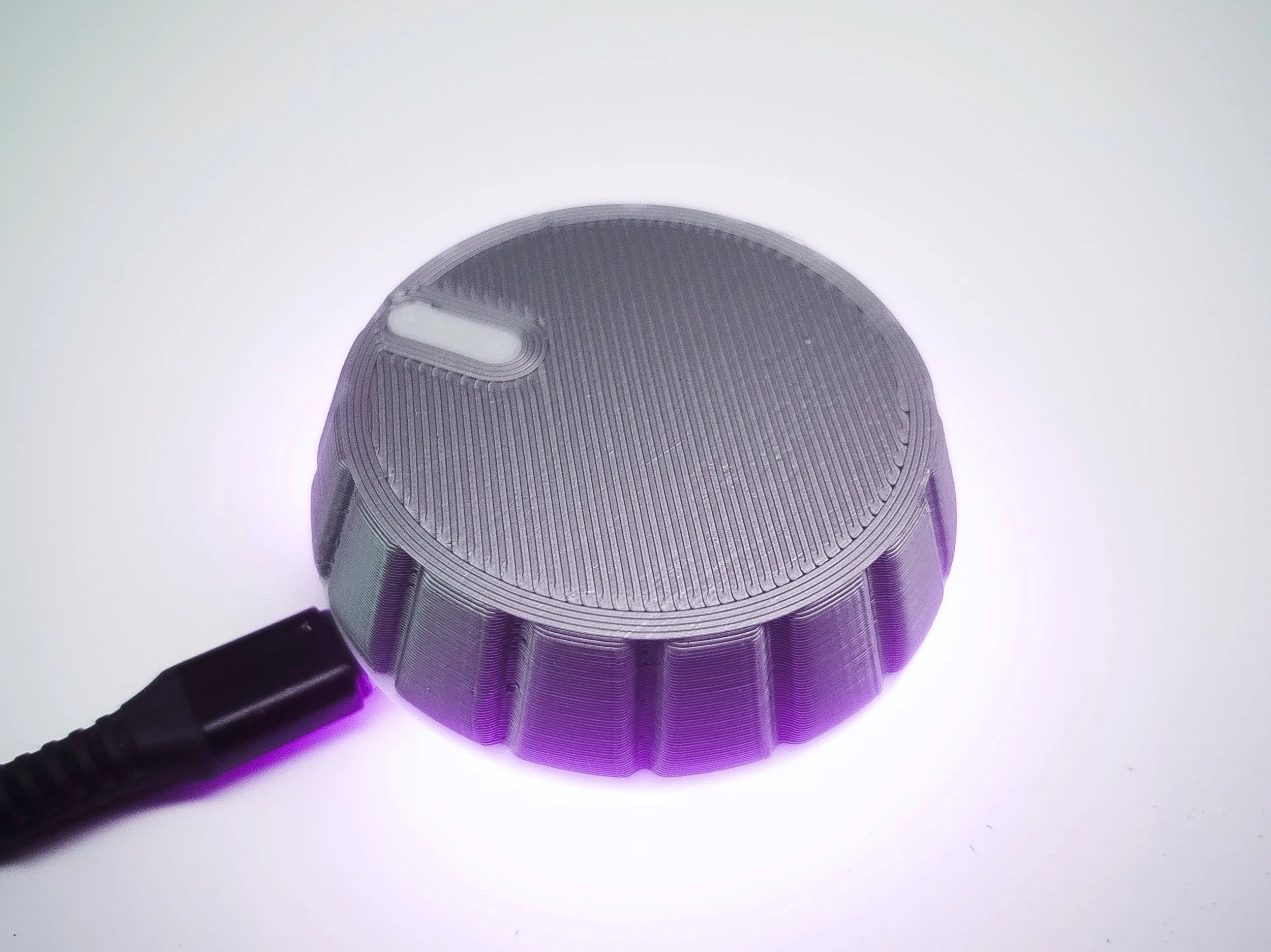

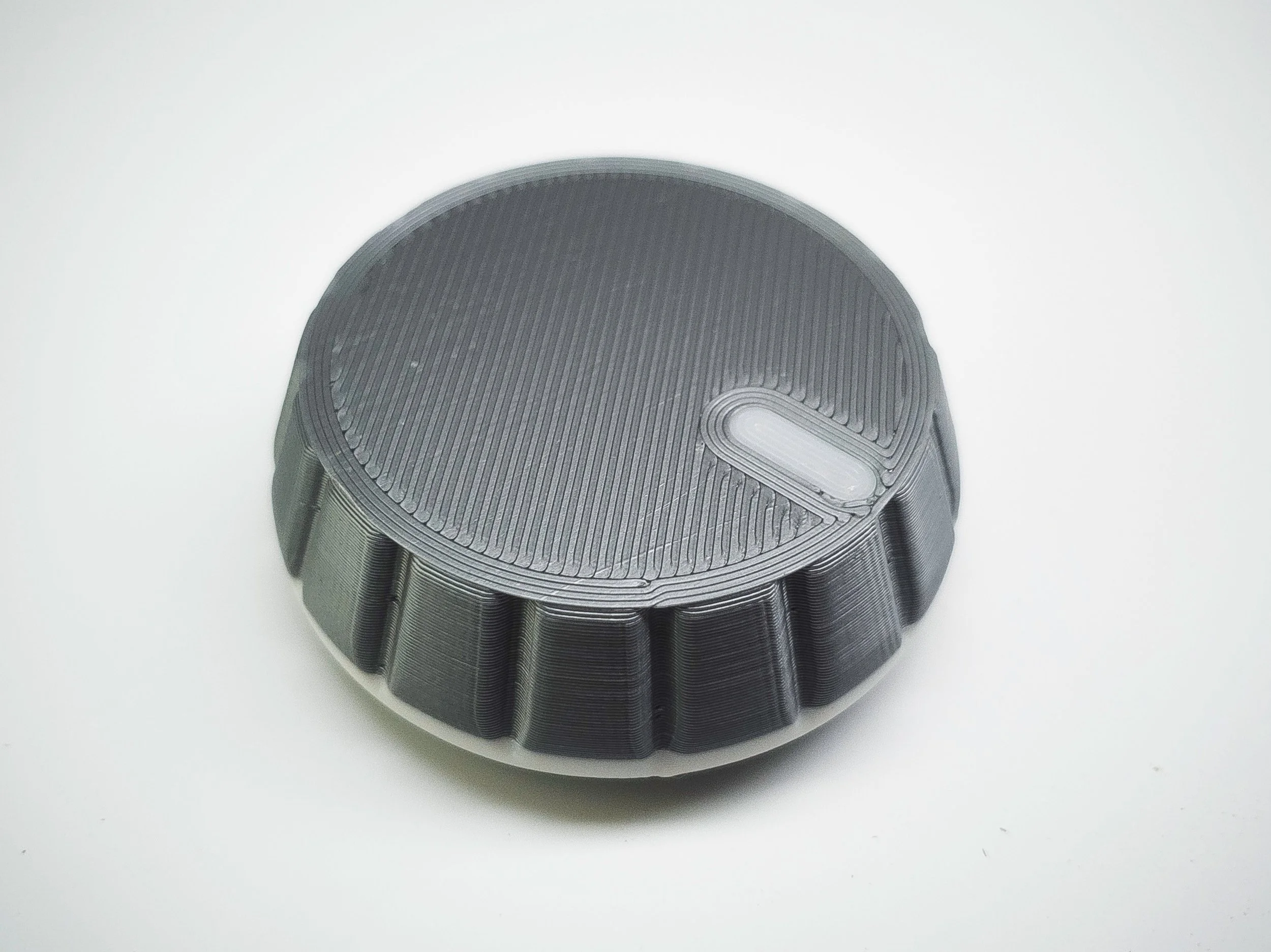

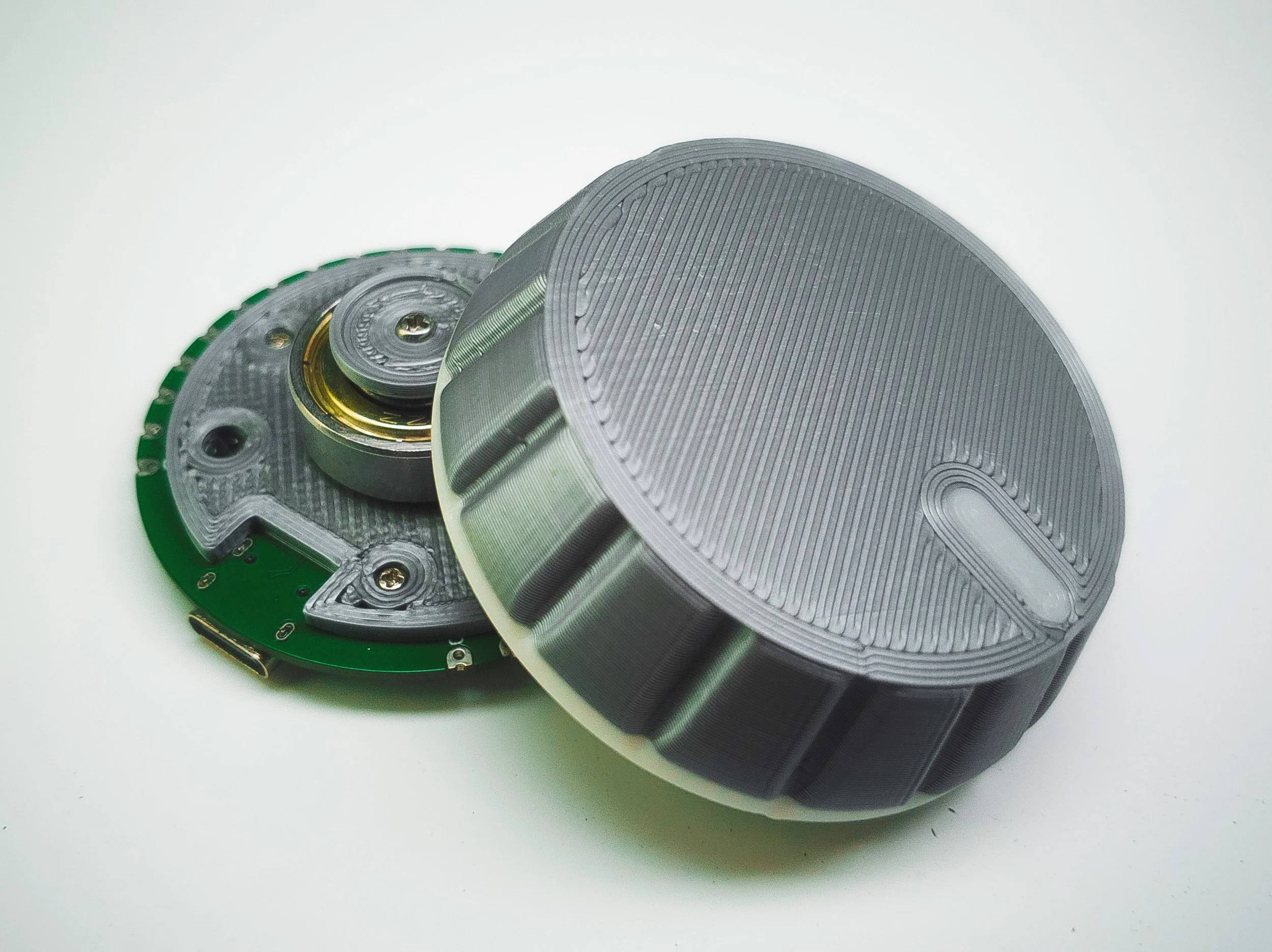

Customizable 3d printed encoder. Download the 3D files here.
Implementing the encoder is also really straightforward using the dedicated Libraries and Sample Codes.
Easy mounting options
Programming Language:
RP2040 C/C++ SDK
Micropython
You can buy the Pico Dev M3 to use as a regular RP2040-based board or you can buy it with the additional parts that also make the board a Rotary Encoder.
>>> As Development Board:
1 Fully assembled and tested Pico Dev M3 Board.
>>> As Development Board and Rotary Encoder:
1 Fully assembled and tested Pico Dev M3 Board + assembled Rotary Encoder parts.
